Ürünler PI - Sensors, Components & Accessories Adapter Brackets
AB-65 Adapter Bracket
For Vertical Mounting of Linear and Rotation Stages
  • Vacuum-compatible articles to 10-9 hPa available
AB-65 L (61009075) and AB-65 XL (61009076)
AB-65 L (61009075) and AB-65 XL (61009076)
The L-509.10DG10 precision linear stage was mounted on an AB-65 XL adapter bracket (61009076) (positioner on adapter bracket).
The L-509.10DG10 precision linear stage was mounted on an AB-65 XL adapter bracket (61009076) (positioner on adapter bracket).

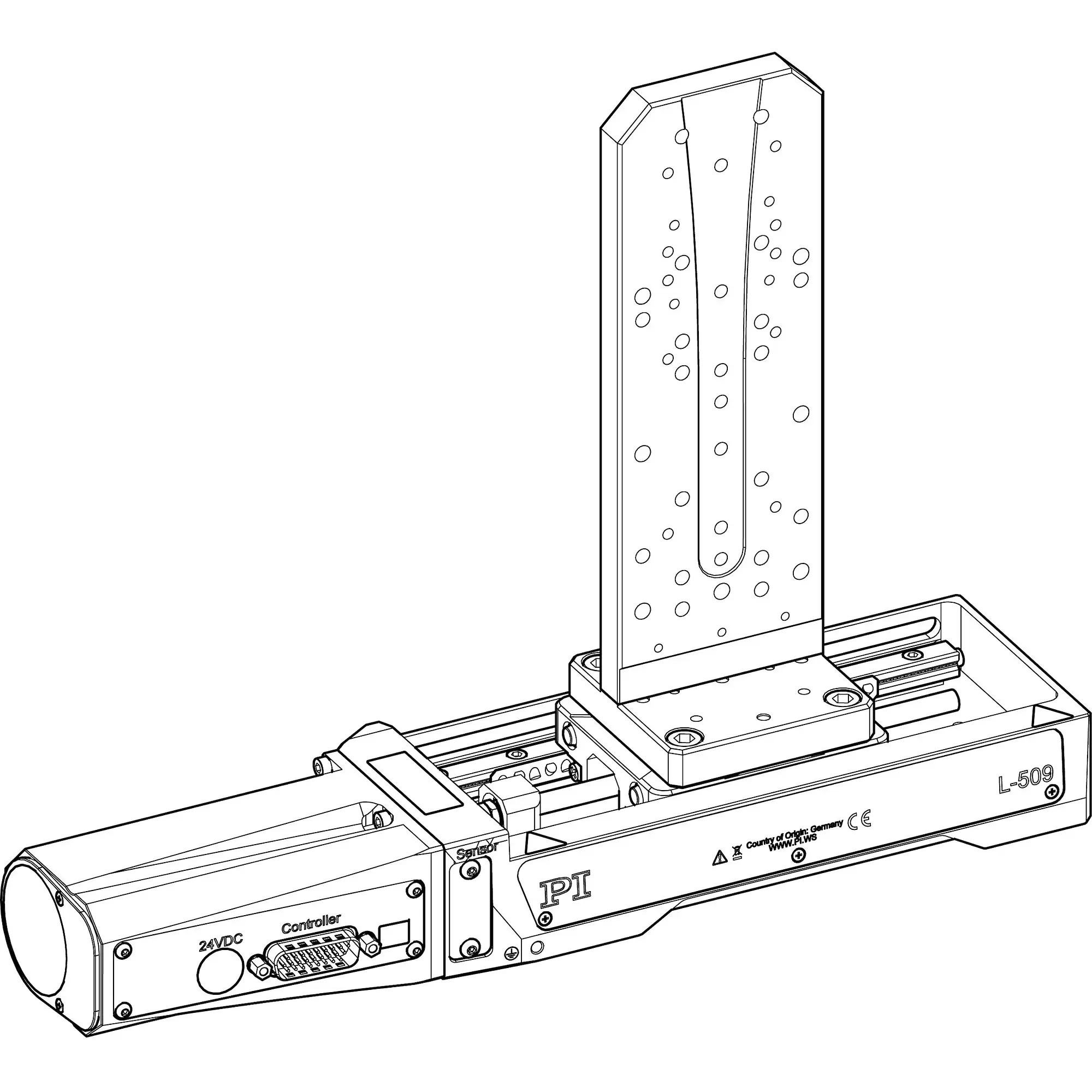

The AB-65 XL adapter bracket (61009076) was mounted on an L-509.10DG10 precision linear stage (adapter bracket on positioner)
The AB-65 XL adapter bracket (61009076) was mounted on an L-509.10DG10 precision linear stage (adapter bracket on positioner)
61009075: AB-65 L
61009075: AB-65 L

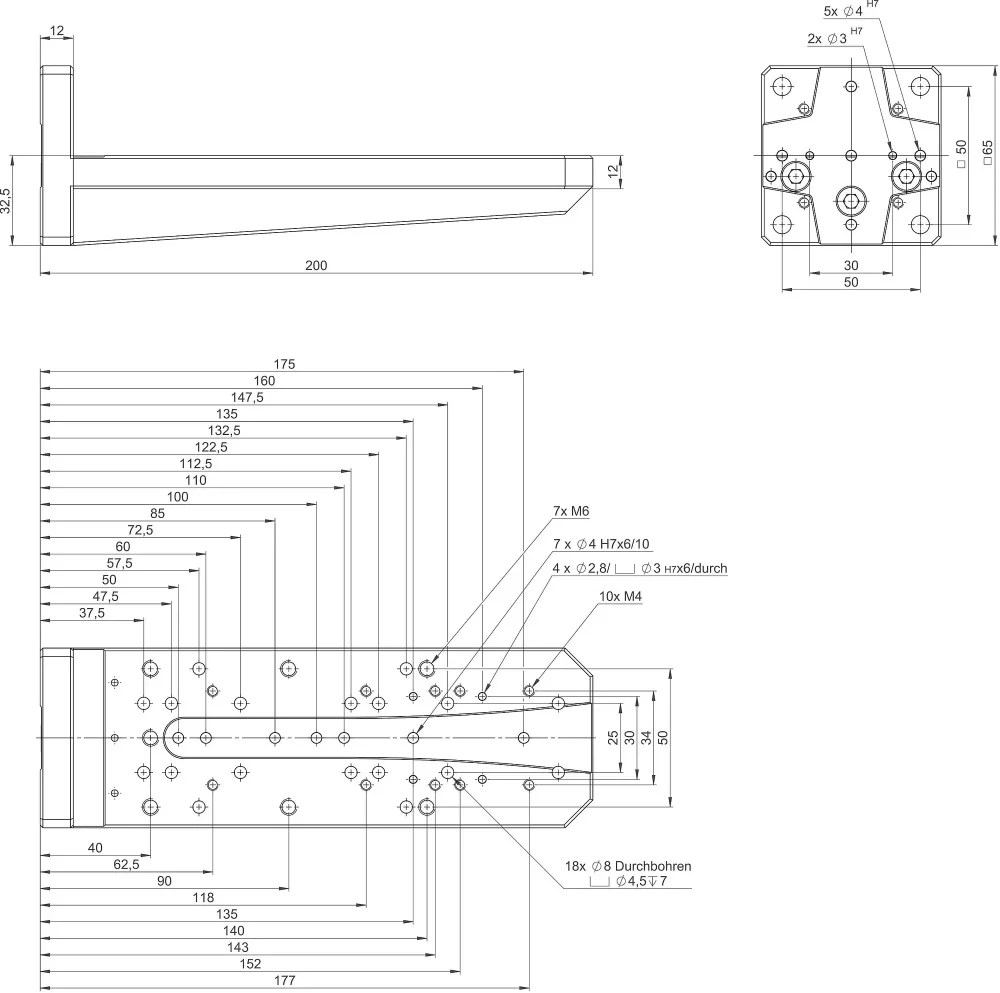

61009076: AB-65 XL
61009076: AB-65 XL
Ürün BilgileriBilgilerÖzelliklerİndirmelerTaklif İste

Product overview

The adapter is compatible with selected linear or rotation stages as well as goniometers.

Vacuum-compatible product variants to 10-9 hPa available.

Types of mounting

  • Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.
  • Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.

Unit

61009075

61009076

6100V075

Mass

kg

0.38

0.58

0.38

Material

Aluminum, anodized

Aluminum, anodized

Aluminum, uncoated

Vacuum compatibility

–

–

to 10-9 hPa

Compatible

61009075 / 6100V075

(adapter bracket on positioner)

61009075 / 6100V075

(positioner on adapter bracket)

61009076

(adapter bracket on positioner)

61009076

(positioner on adapter bracket)

Linear stages

L-310

X

–

X

–

L-509

X

–

X

X

L-511

X

–

X

–

HPS-170

X

–

X

–

LMS-180

X

–

X

–

LS-180

X

–

X

–

VT-80

X

X*

X

X**

Rotation stages

L-611

X

–

X

X

RS-40

–

X

–

–

DT-80

–

X

–

–

Goniometers

WT-85

X

–

X

X

WT-90

X

X

X

X

WT-100

–

–

–

X

WT-120

X

–

X

–

* to 75 mm travel range

** to 150 mm travel range

3D Modeller
3D Modeller
3-D model 61009075
Versiyon / Tarih

zip - 140 KB
Listeye Ekle Listeden Çıkar
3D Modeller
3-D model 6100V075
Versiyon / Tarih

zip - 99 KB
Listeye Ekle Listeden Çıkar
3D Modeller
3-D model 61009076
Versiyon / Tarih

zip - 192 KB
Listeye Ekle Listeden Çıkar
Veri Sayfası
Veri Sayfası
Datasheet AB-65
Versiyon / Tarih
2020-09-16
pdf - 2 MB
İndir
61009075
Adapter bracket AB-65 L
Teklif Listesine Ekle Teklif Listesinden Çıkar
61009076
Adapter bracket AB-65 XL
Teklif Listesine Ekle Teklif Listesinden Çıkar
6100V075
Adapter bracket AB-65 L, vacuum compatible to 10-9 hPa
Teklif Listesine Ekle Teklif Listesinden Çıkar
İlgili Ürünler
L-836.AP1 L-836.APx Adapter Bracket For Mounting L-8x6 / V-8x6 Vertically
XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket L-505.APx Adapter Bracket For Mounting L-505 Linear Stages Vertically

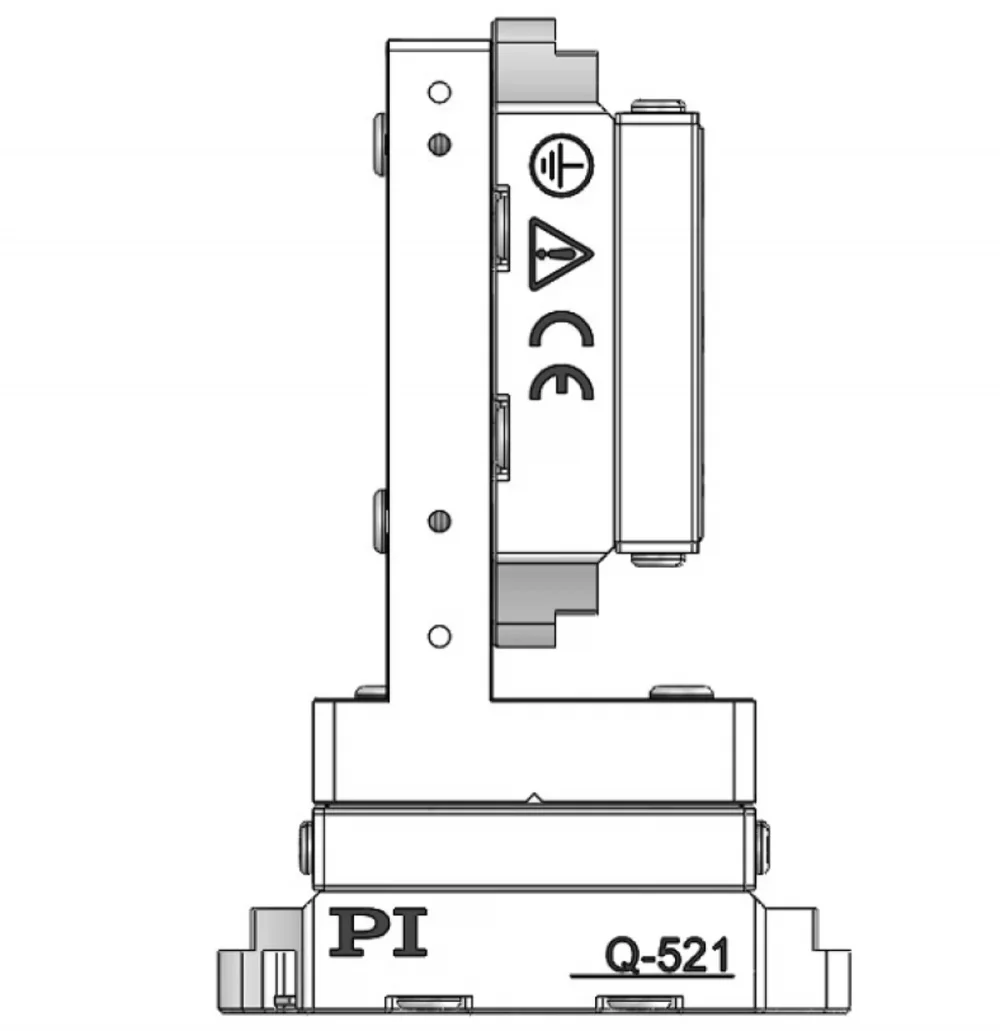

Q-121 Adapter Brackets and Adapter Plate For Mounting Q-521 Miniature Linear Stages
Q-145 Adapter Bracket For Vertical Mounting of Q-545 Linear Stages
M-592.10 Z-Axis Mounting Bracket For Vertical Mount of M-511, M-521 and M-531 Stages

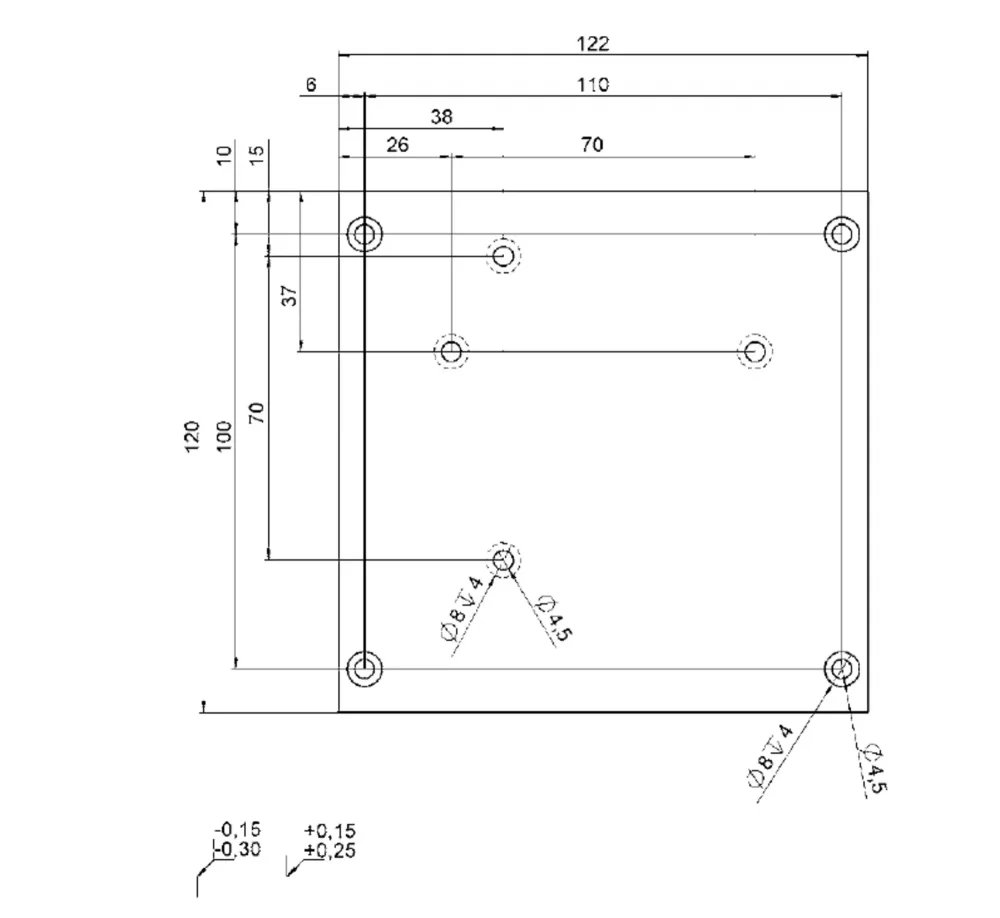

M-413.AP2 Adapter Bracket For Vertical Mount of M-413/M-414 on M-413/M-414 Stages
