Ürünler PI - Vacuum

Positioning in High Vacuum (HV) and Ultrahigh Vacuum (UHV)

Following a set of predetermined guidelines, precision positioning equipment is provided for vacuum environments. First, it's important to prevent abrasion, outgassing, and too much heat from contaminating the vacuum chamber with particles. Additionally, installation area is typically not very large. PI has extensive knowledge of vacuum technology and applications, in addition to a broad spectrum of manufacturing verticals. As a result, PI is in a position to provide both standard and customized solutions that are precisely matched to the needs of the vacuum application, for example, by using adequate drive components, material selection, design, and accessories, as well as appropriate production procedures and quality control.


Hexapods

H-850.V H-850.V Vacuum-Compatible 6-Axis Hexapod For loads to 80 kg
H-811.I2V Vacuum-Compatible 6-Axis Miniature Hexapod Fast, Compact, and Highly Precise
H-824.V Vacuum-Compatible 6-Axis Hexapod Compact and Precise

Linear, Rotation, Elevation Stages and Accessories

RS-40 V7 Compact Rotation Stage Suitable for Vacuum Precision Positioning

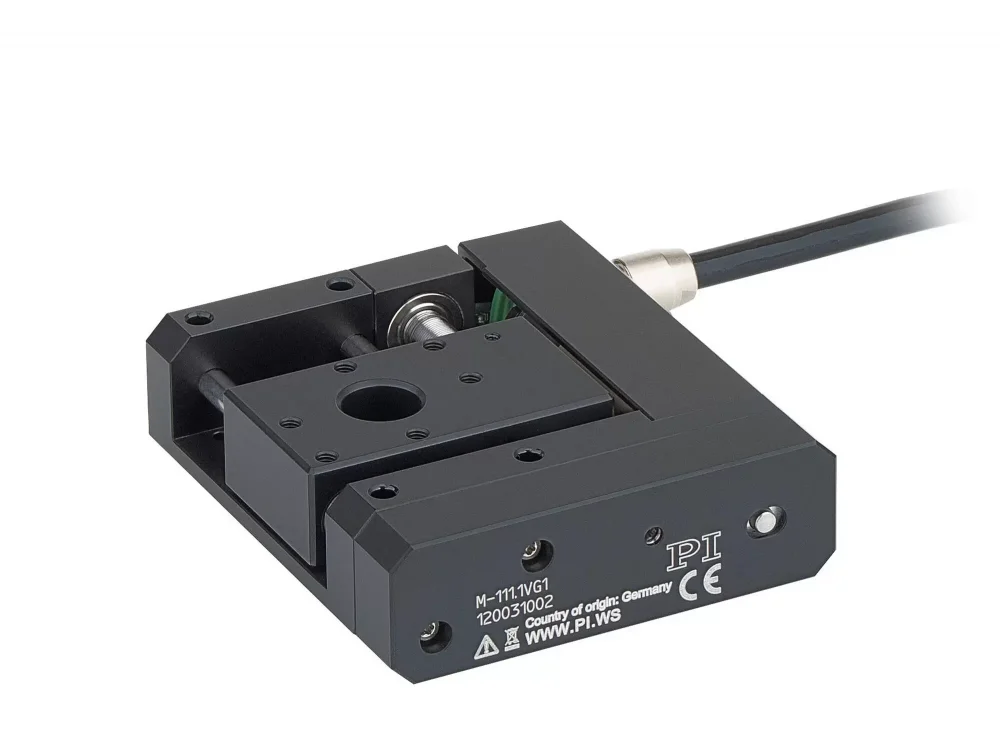

M-110 • M-111 • M-112 V6 Vacuum-Compatible Compact Linear Stage XY(Z) Combinations with DC Gear Motor, Various Travel Range Variants

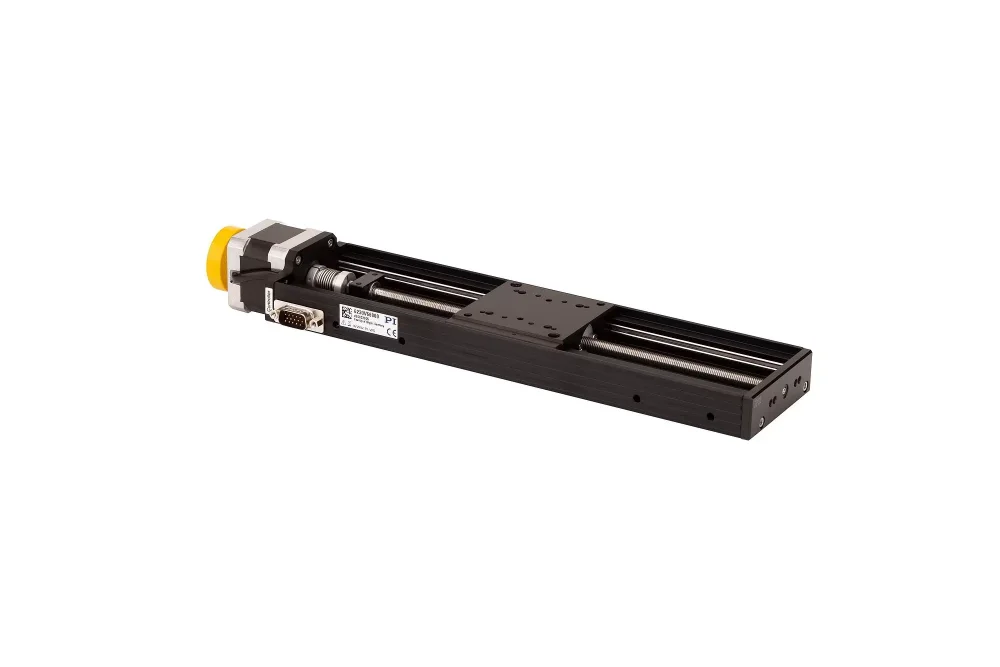

6230V66000 VT-80 V6 Linear Stage Suitable for Vacuum Basic Version for Universal Fields of Use
L-611 rotation stage with 2-phase stepper motor L-611 V6 • V7 • V9 Precision Rotation Stage Suitable for Vacuum High Travel Accuracy
L-509 V6 • V7 • V9 Vacuum-Compatible Precision Linear Stage Compact Design, for Loads to 10 kg
L-310 V6 Precision Z Stage Suitable for Vacuum Can be Compactly Combined with Linear and Rotation Stages

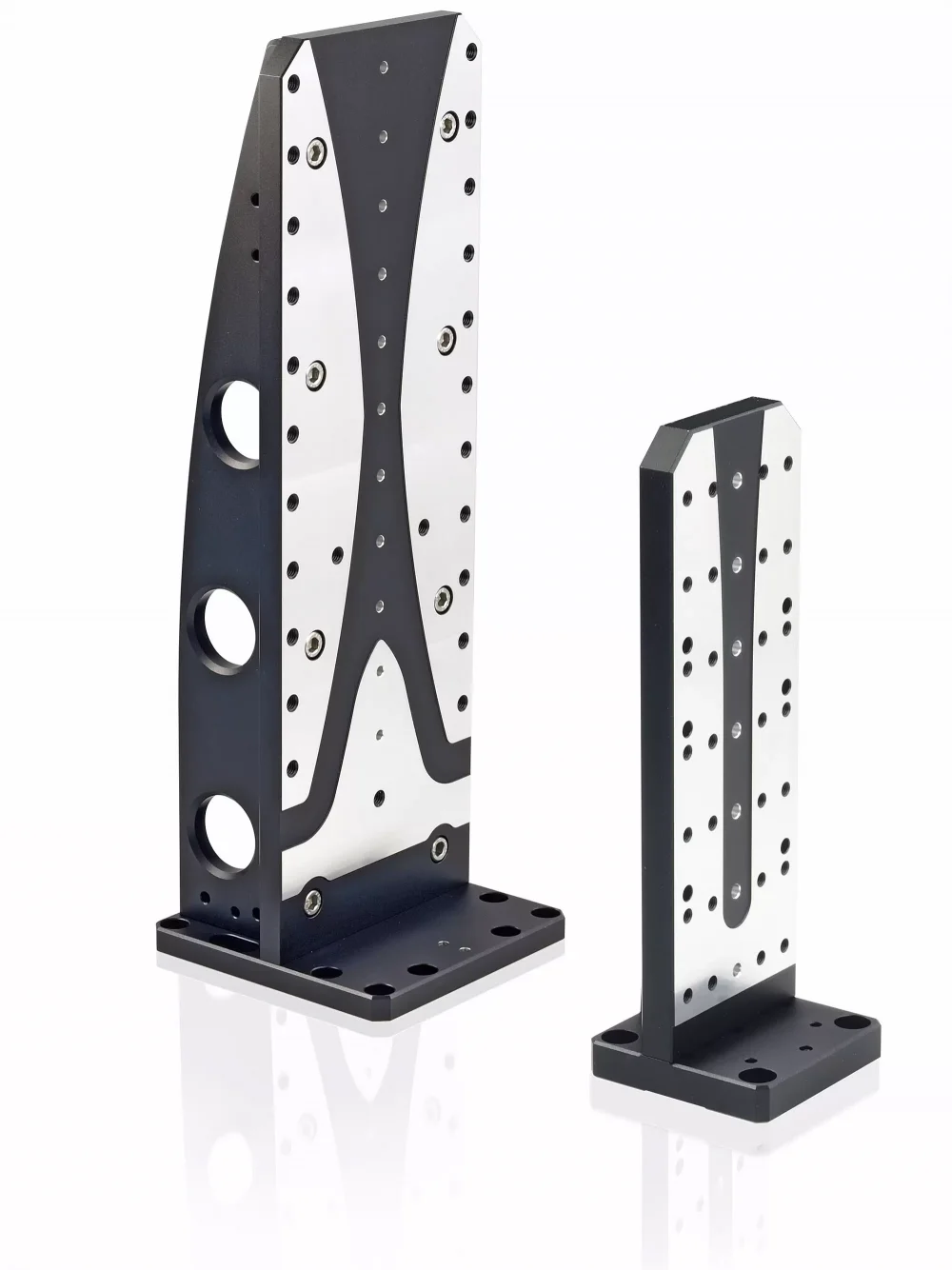

L-500.AV1 and L-500.AV3 L-500 Adapter Bracket For Vertical Mounting of Linear and Rotation Stages

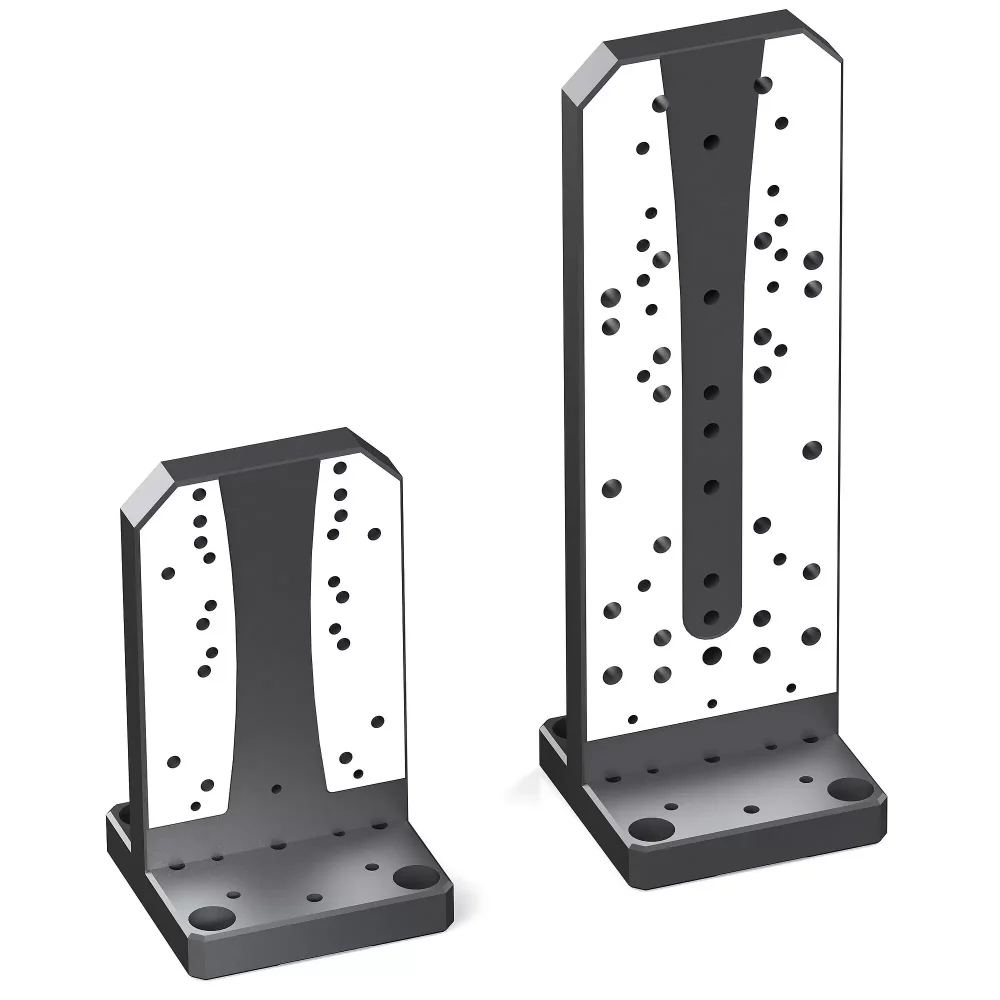

AB-65 L (61009075) and AB-65 XL (61009076) AB-65 Adapter Bracket For Vertical Mounting of Linear and Rotation Stages

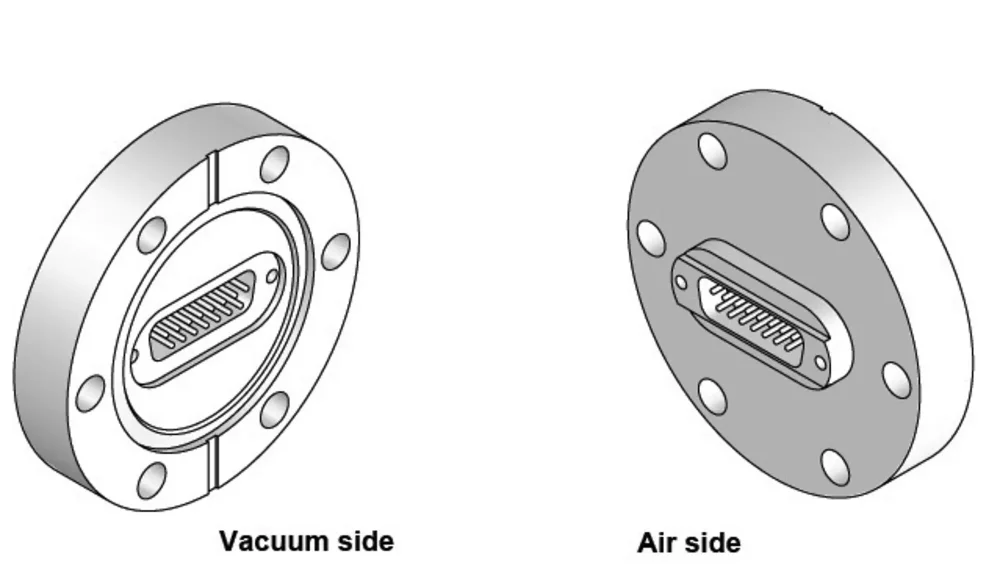

C-815.VFU1 C-815.VFxx Vacuum Feedthroughs Interfaces Between Air Side and High Vacuum (HV) or Ultrahigh Vacuum (UHV)
P-891.VA • P-892.VA Vacuum Feedthrough Accessories for Vacuum-Compatible Piezo Positioners
L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum Suitable for High Cycle Numbers

Piezo Actuators and Stages

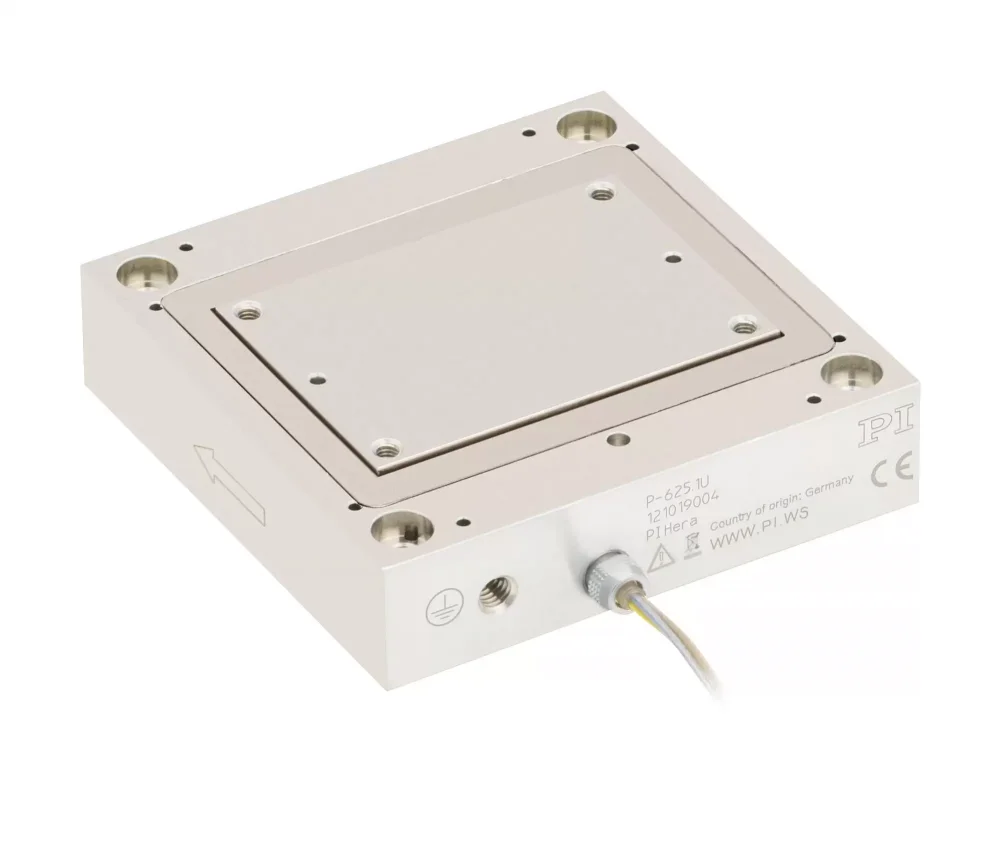

P-621.1U • P-625.1U PIHera Linear Precision Positioner Vacuum Compatible and with Variable Travel Ranges and Axis Configuration
Response behavior of a P-841.10 to square wave control with an amplitude of 3 nm. Servo setting: 240 Hz bandwidth, 2 ms settling time. P-841 Preloaded Piezo Actuators Compact Actuators for High Loads and Forces, with Position Sensor
P-733.3 XYZ Piezo Nanopositioner High-Precision XYZ Scanner with Aperture

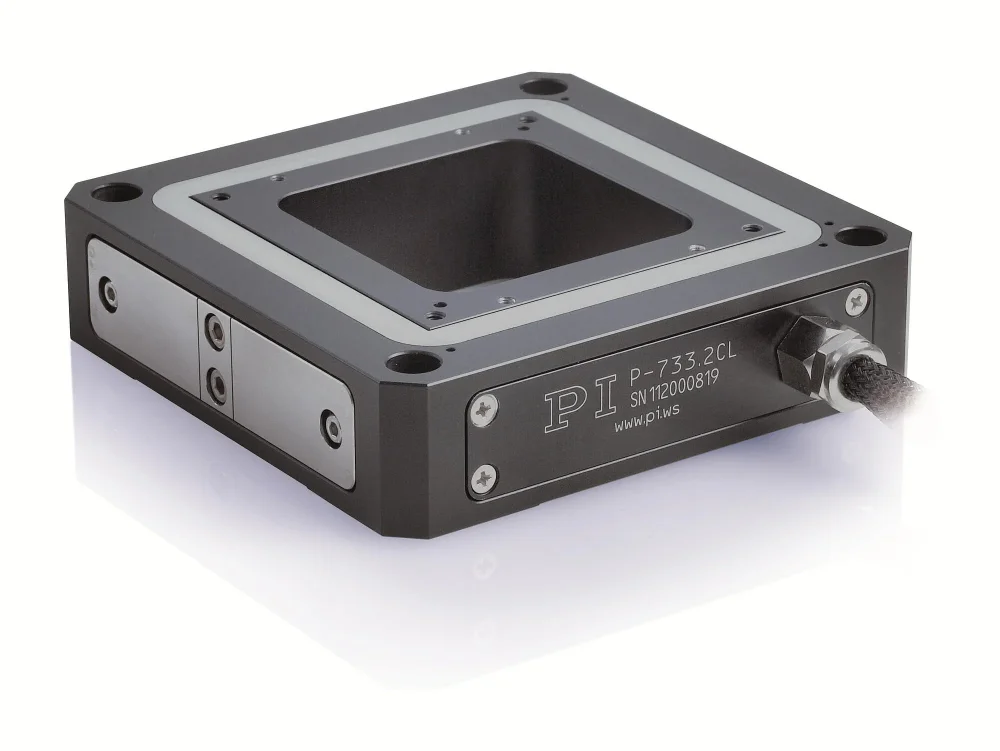

P-733.2 XY Piezo Nanopositioner High-Precision XY Scanner with Aperture

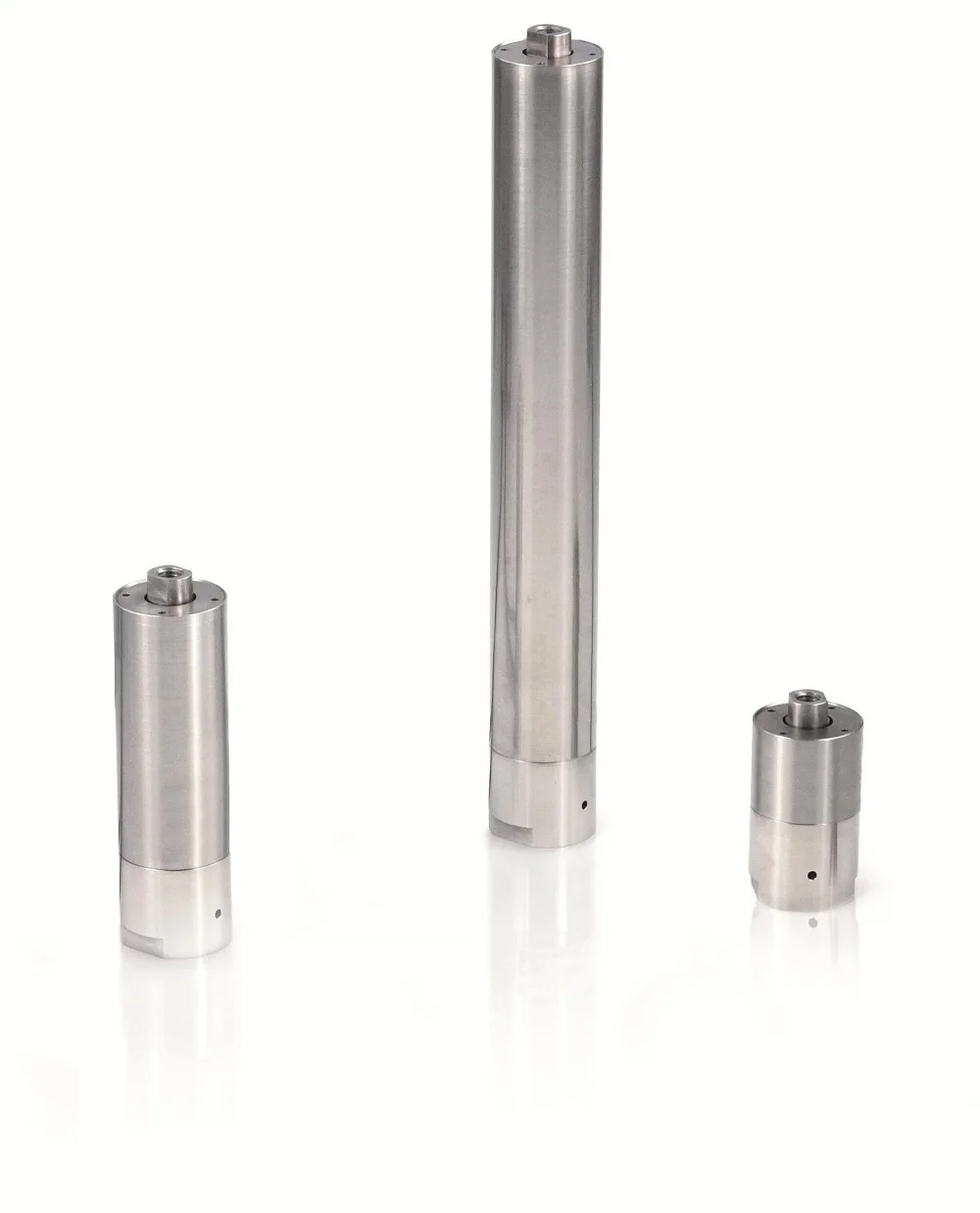

P-216 PICA Power Piezo Actuators Preloaded Piezo Actuators (HVPZT) with Sensor Option

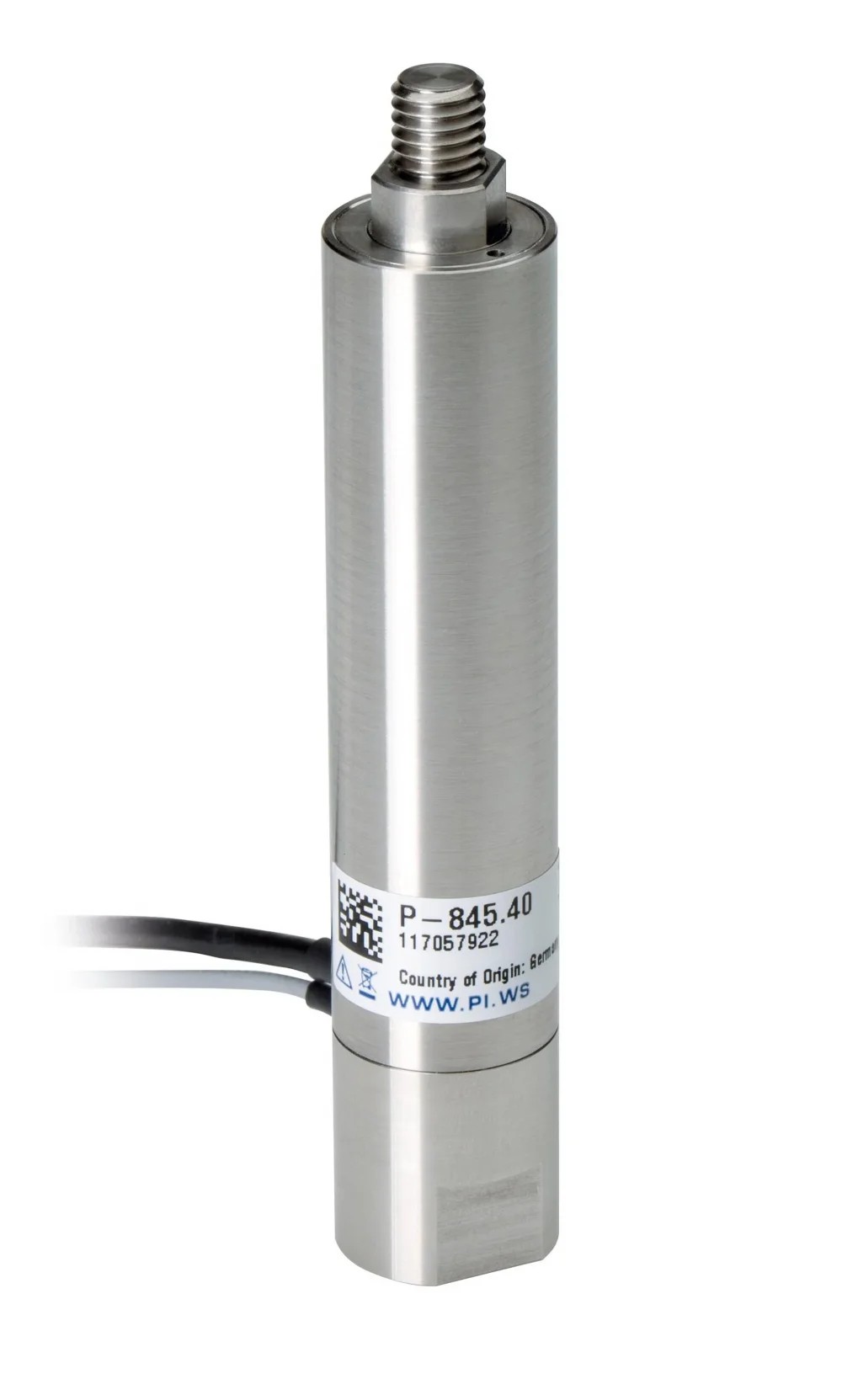

P-845 Preloaded Piezo Actuators For Very High Loads and Forces, with Position Sensor
P-844 Preloaded Piezo Actuators For Very High Loads and Forces
P-843 Preloaded Piezo Actuators For High Loads and Forces, with Position Sensor
P-842 Preloaded Piezo Actuators For High Loads and Forces
P-840 Preloaded Piezo Actuators Compact Actuators for High Loads and Forces

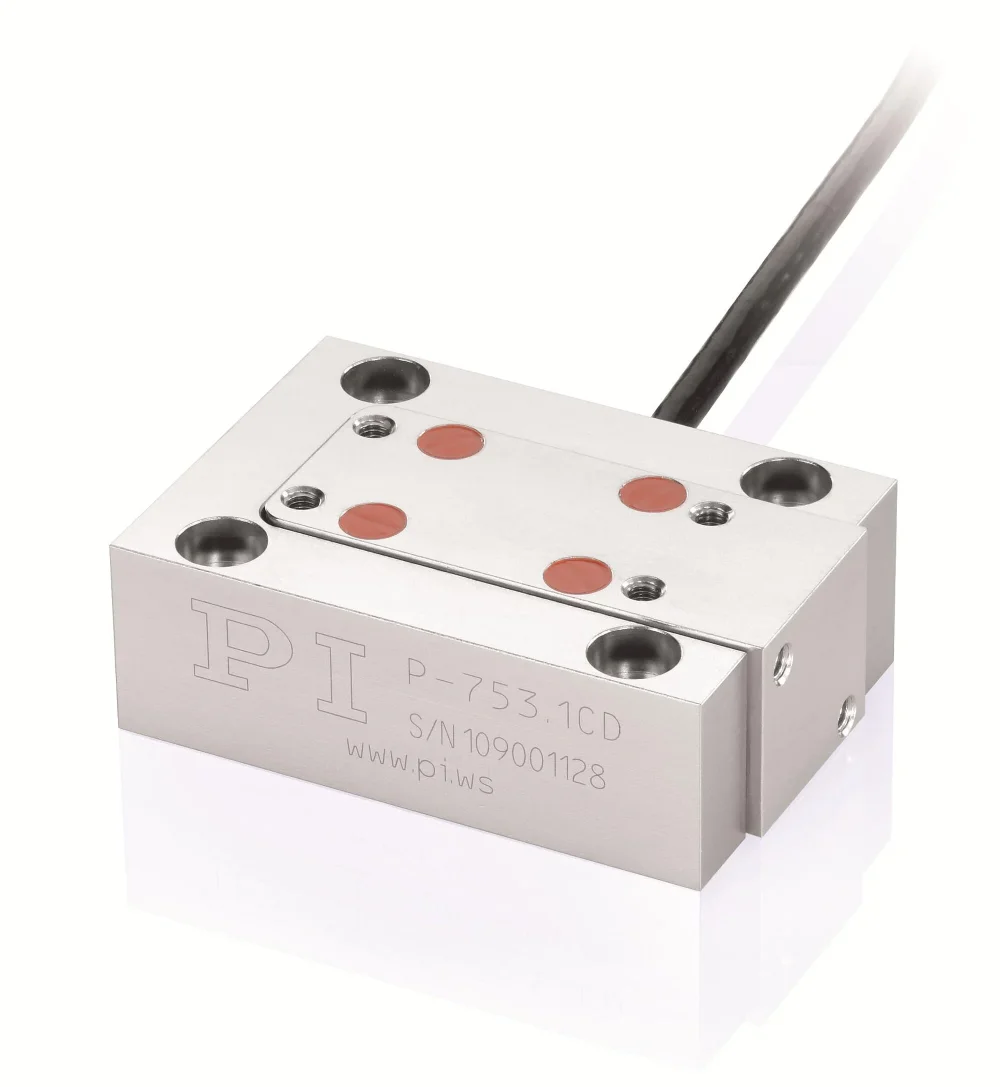

P-753 LISA Linear Actuator and Positioning Stage Dynamic and Stable in Position

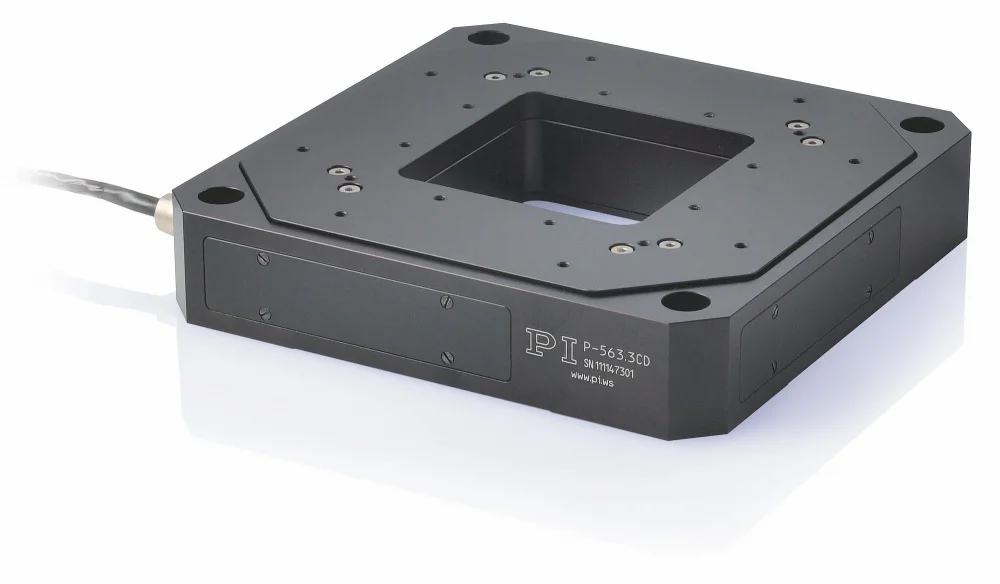

P-561 • P-562 • P-563 PIMars Nanopositioning Stage High-Precision Nanopositioner for up to 3 Axes
P-518 • P-528 • P-558 Piezo Z/Tip/Tilt Stage High Dynamics with Large Aperture
P-235 PICA Power Piezo Actuators Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option
N-480 High-Precision Kinematic Mirror Mount With N-470 PiezoMike Linear Actuators

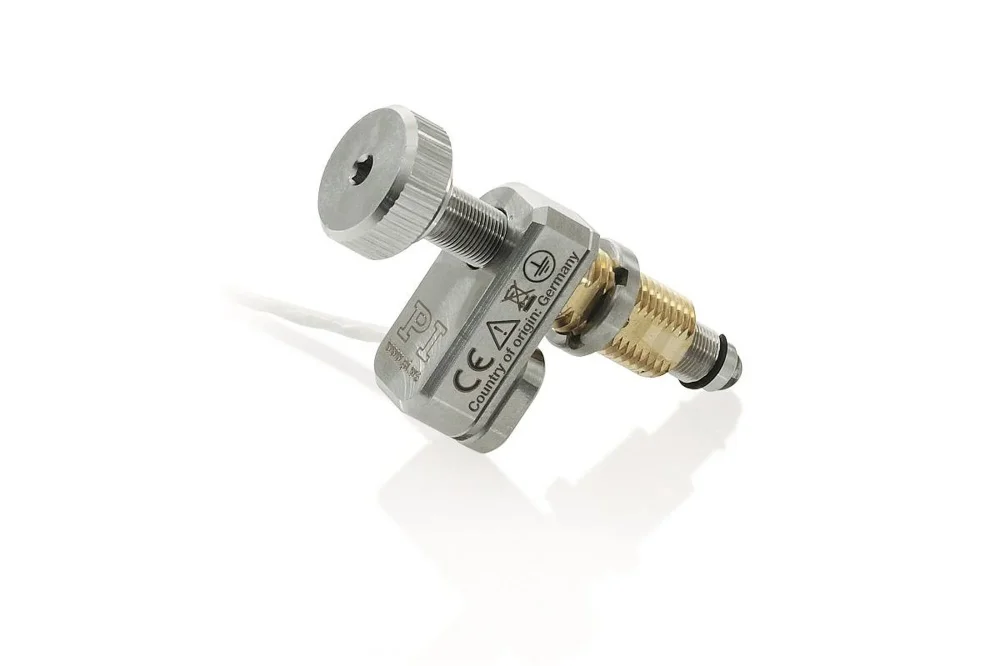

N-470.V PiezoMike Linear Actuator Minimum Dimensions, High Forces, Stable Positioning, Vacuum to 10-6 hPa

Sensors

D-050 • D-100 Capacitive Sensors Subnanometer-Resolution Position Sensors
