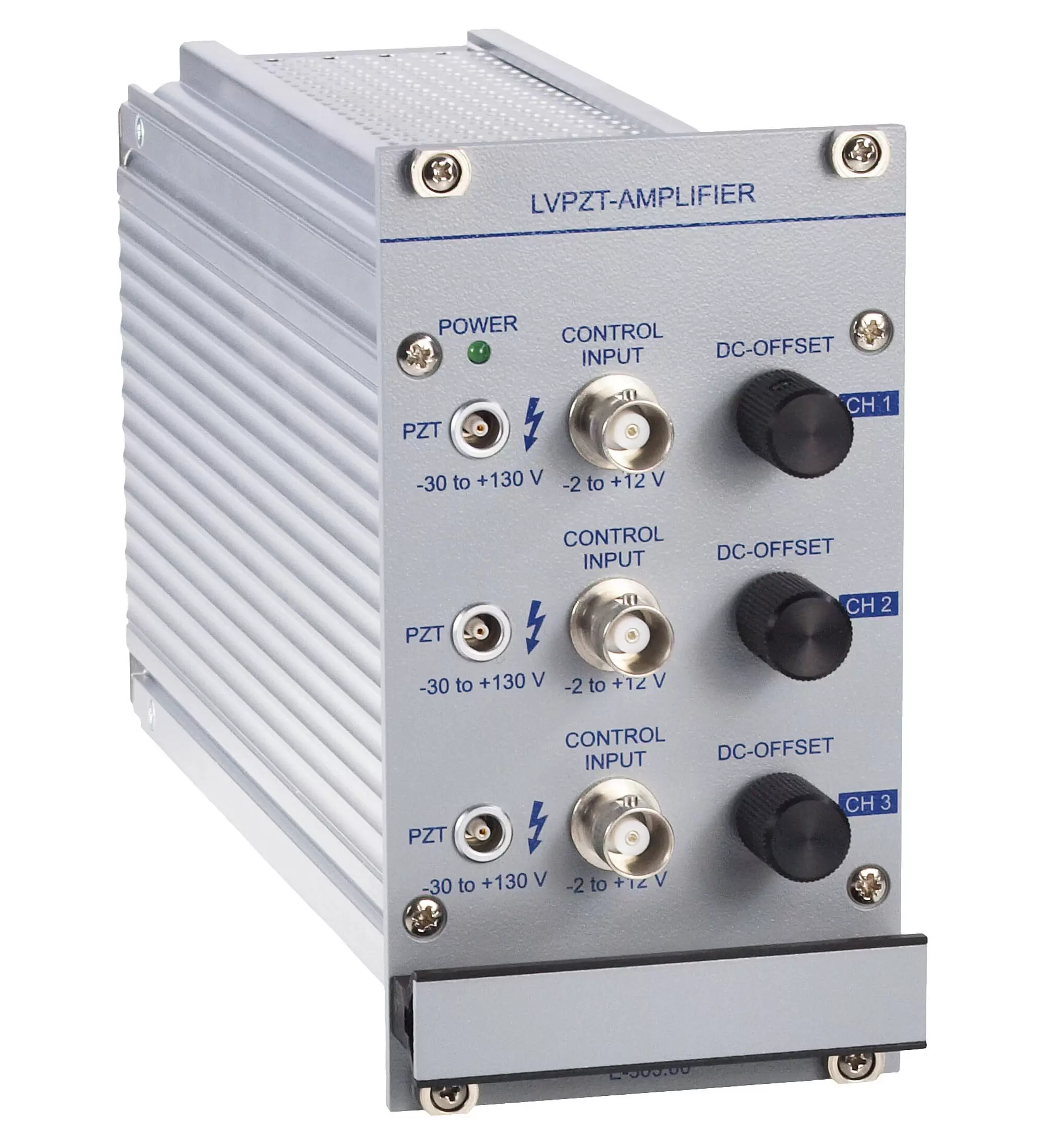

E-503 Piezo Amplifier Module

For Three Channels, E-500 Piezo Controller System

Plug-in module for E-500 piezo system
Peak current 3 × 140 mA
Output voltage range -30 to 130 V
Position control (optional)
Interface / display modules (optional)

E-503: Operating limits (open loop) with various piezo loads, capacitance values in µF

	E-503.00 / E-503.00S
Function	Power amplifier
Channels	3 / 2

Amplifier	E-503.00 / E-503.00S
Input voltage range	-2 to +12 V
Output voltage	-30 to 130 V (E-503.00S: Additional fixed voltage of 100 V)
Peak current / channel (<5 ms)	140 mA
Average output current / channel (> 5 ms)	40 mA
Current limitation	Short-circuit proof
Voltage gain	10 ±0.1
Input impedance	100 kΩ / 1 nF

Interfaces and operation	E-503.00 / E-503.00S
Piezo connection (voltage socket)	LEMO ERA.00.250.CTL
Analog input / control input socket	BNC
DC offset setting	10-turn potentiometer, adds 0 to 10 V to the input voltage

Miscellaneous	E-503.00 / E-503.00S
Operating temperature range	5 to 50 °C
Overheat protection	Deactivation at 85°C
Dimensions	14 HP / 3 RU
Mass	0.9 kg
Operating voltage	E-500 system
Max. power consumption	40 W

Veri Sayfası

Datasheet E-503

Versiyon / Tarih

2020-10-07
pdf - 661 KB

İndir

Dokümantasyon

User Manual PZ62

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).

Versiyon / Tarih

2013-07-11
pdf - 2 MB

Listeye Ekle Listeden Çıkar

Dokümantasyon

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Versiyon / Tarih

1.1.0 04/2021
pdf - 1 MB

İndir

E-503.00

Piezo amplifier module, 3 channels, -30 to 130 V

Teklif Listesine Ekle Teklif Listesinden Çıkar

E-503.00S

Piezo amplifier module, 2 channels, -30 to 130 V . Customized version, modified for S-330, S-331, S-340 tip/tilt mirror systems, with a fixed voltage of +100 V, two variable voltages

Teklif Listesine Ekle Teklif Listesinden Çıkar
