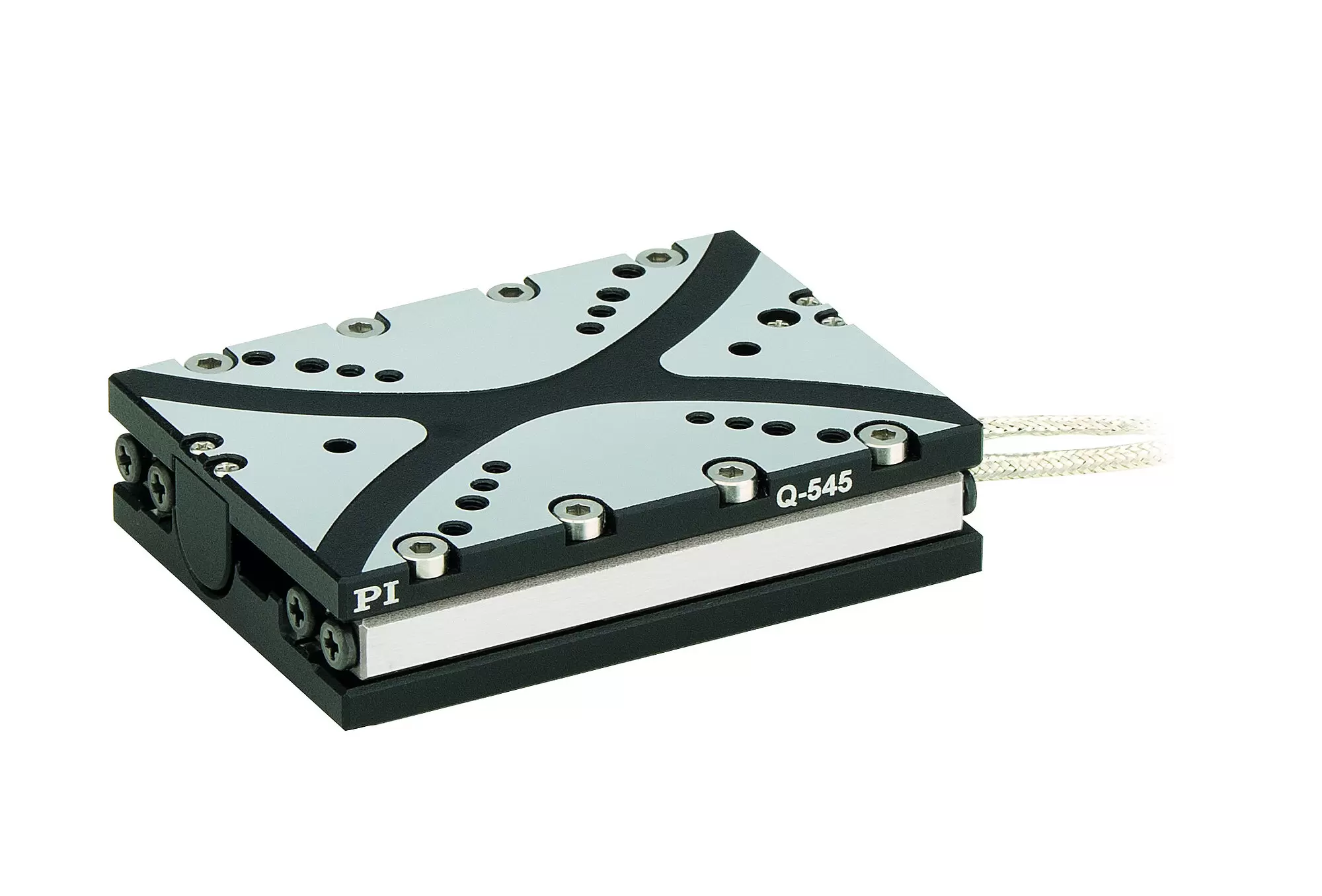

Q-545 Q‑Motion® Precision Linear Stage

High Forces and Small Design Due to Piezo Motors

Only 45 mm in width
Drive force 7 N
Incremental sensors with nanometer position resolution
XY combinations without adapter plate possible

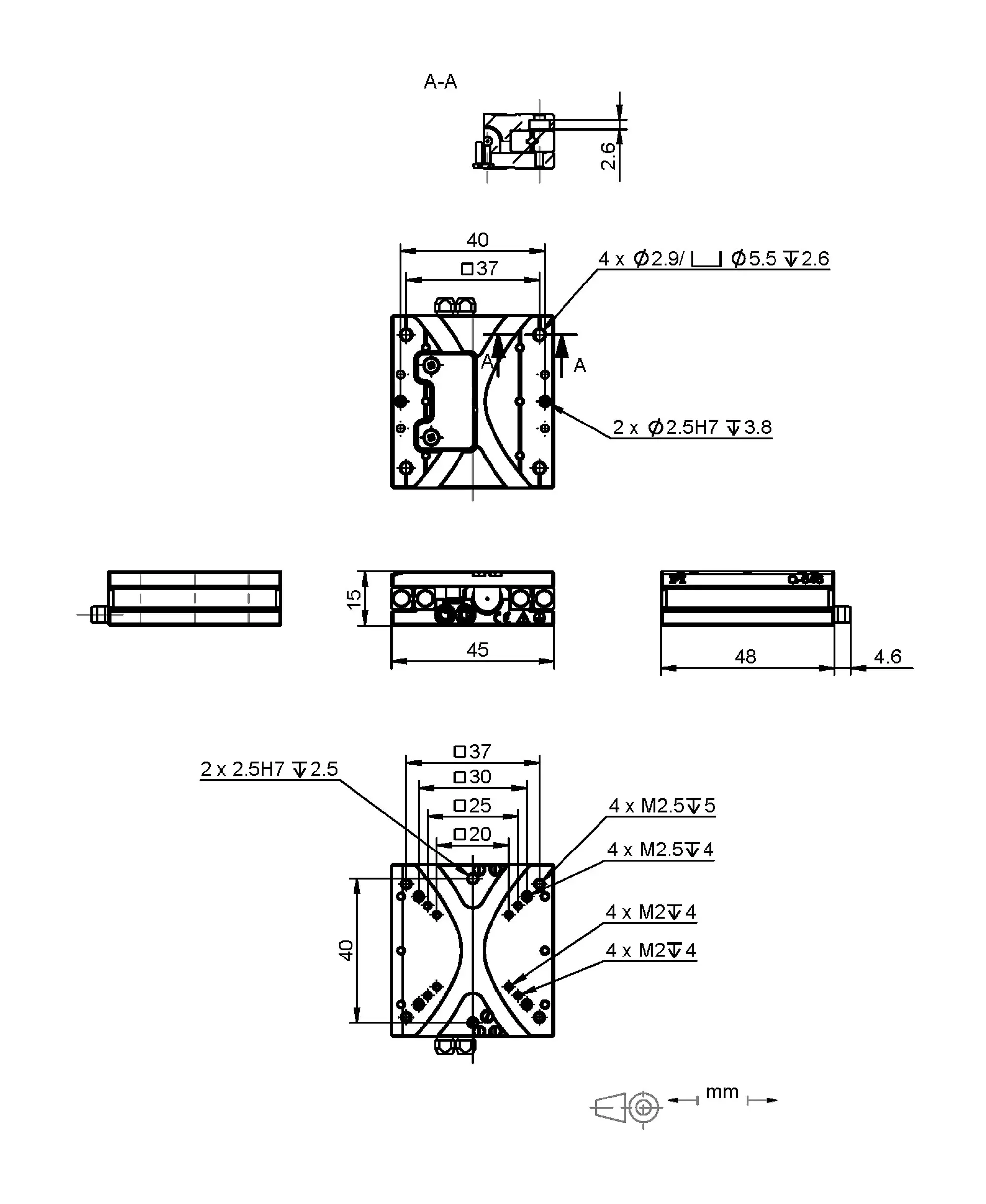

Q-545.140, dimensions in mm

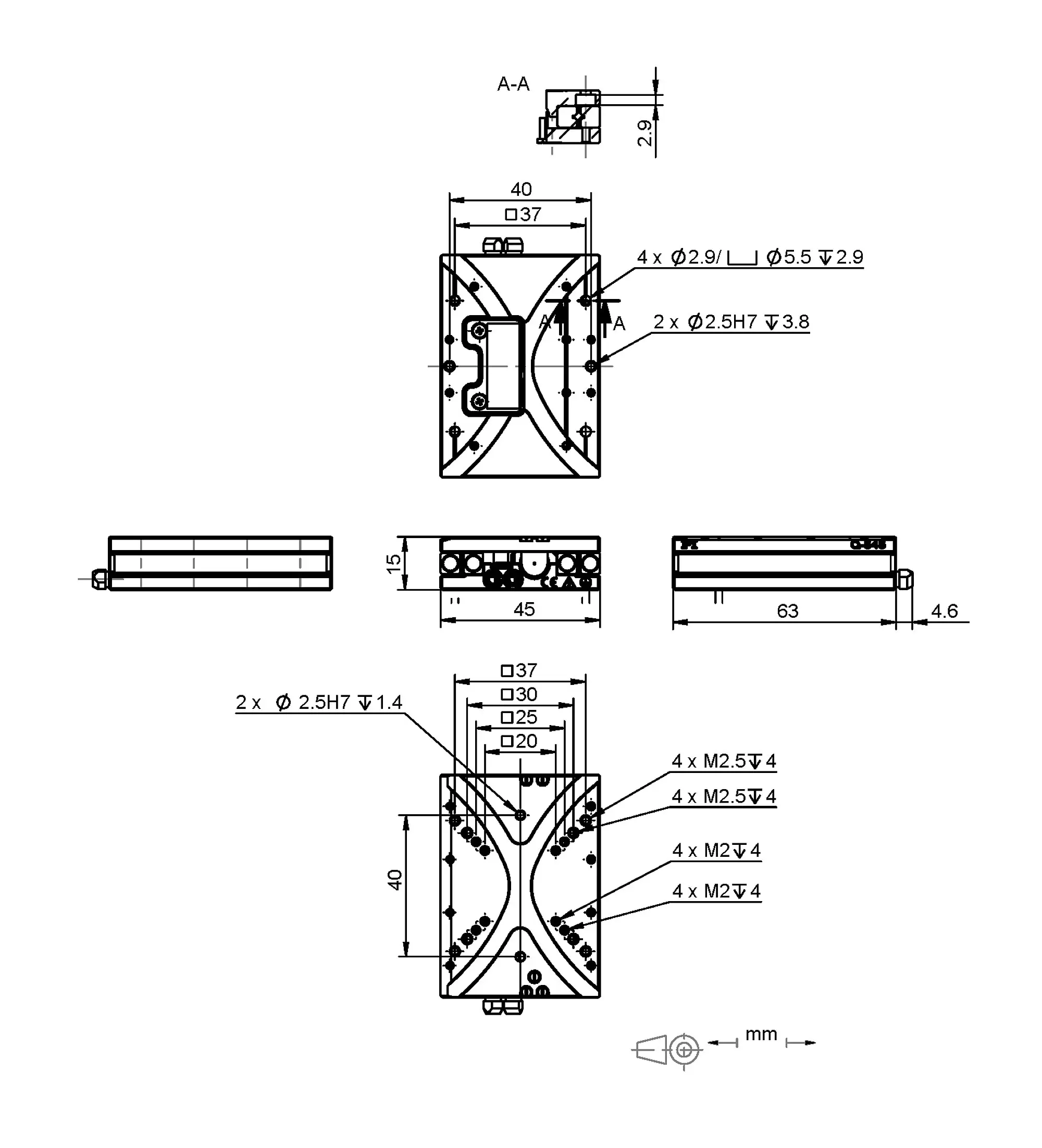

Q-545.240, dimensions in mm

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Piezoelectric inertia drive

Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. With an operating frequency of up to 20 kHz, the drives acting directly on the runner and achieve velocities of max. 6 mm/s.

Application fields

Microassembly. Photonics. Optical alignment. Microscopy. Beamline instrumentation. Semiconductor technology. Testing.

Direct-measuring principle

The linear stages are equipped with a noncontact measuring optical linear encoder and a reference switch. Resolution 1 nm.

Motion and positioning	Q-545.140	Q-545.240	Unit	Tolerance
Active axis	X	X
Travel range	13	26	mm
Maximum velocity, closed loop	8	8	mm/s
Minimum incremental motion	6	6	nm	Typ.
Pitch	250	250	µrad	Typ.
Yaw	100	250	µrad	Typ.
Linearity	2	2	µm	Typ.
