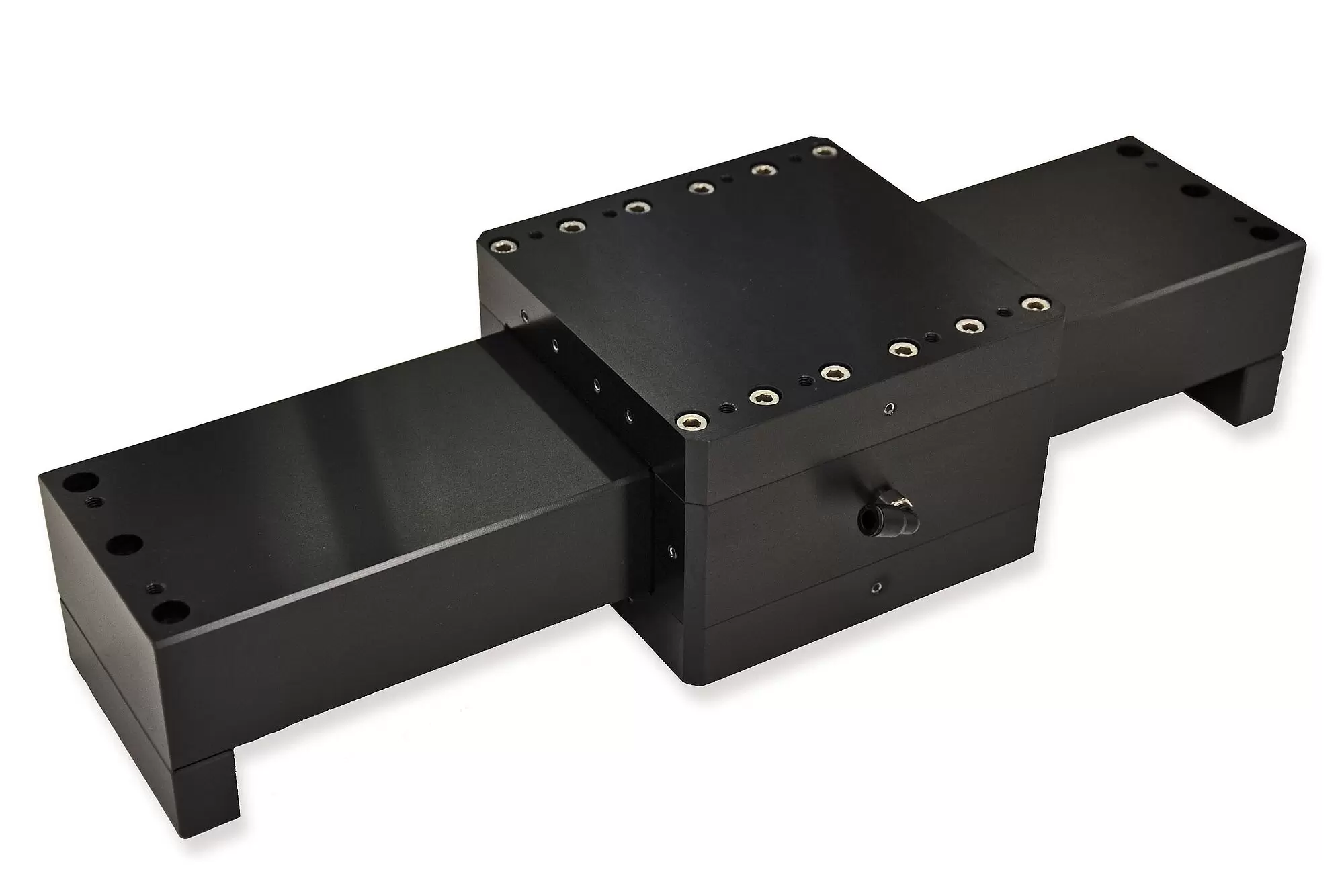

A-10x PIglide RB Linear Air Bearing Module

Friction Free, Ideal for Positioning, Scanning, Metrology

Ideal for scanning applications or high-resolution positioning
Cleanroom compatible
Size of the motion platform to 300 mm × 300 mm
Travel ranges to 1 m
Load capacity to 775 kg
Straightness / flatness to 0.5 μm per 25 mm
Pitch / roll / yaw to 1.2 µrad per 25 mm

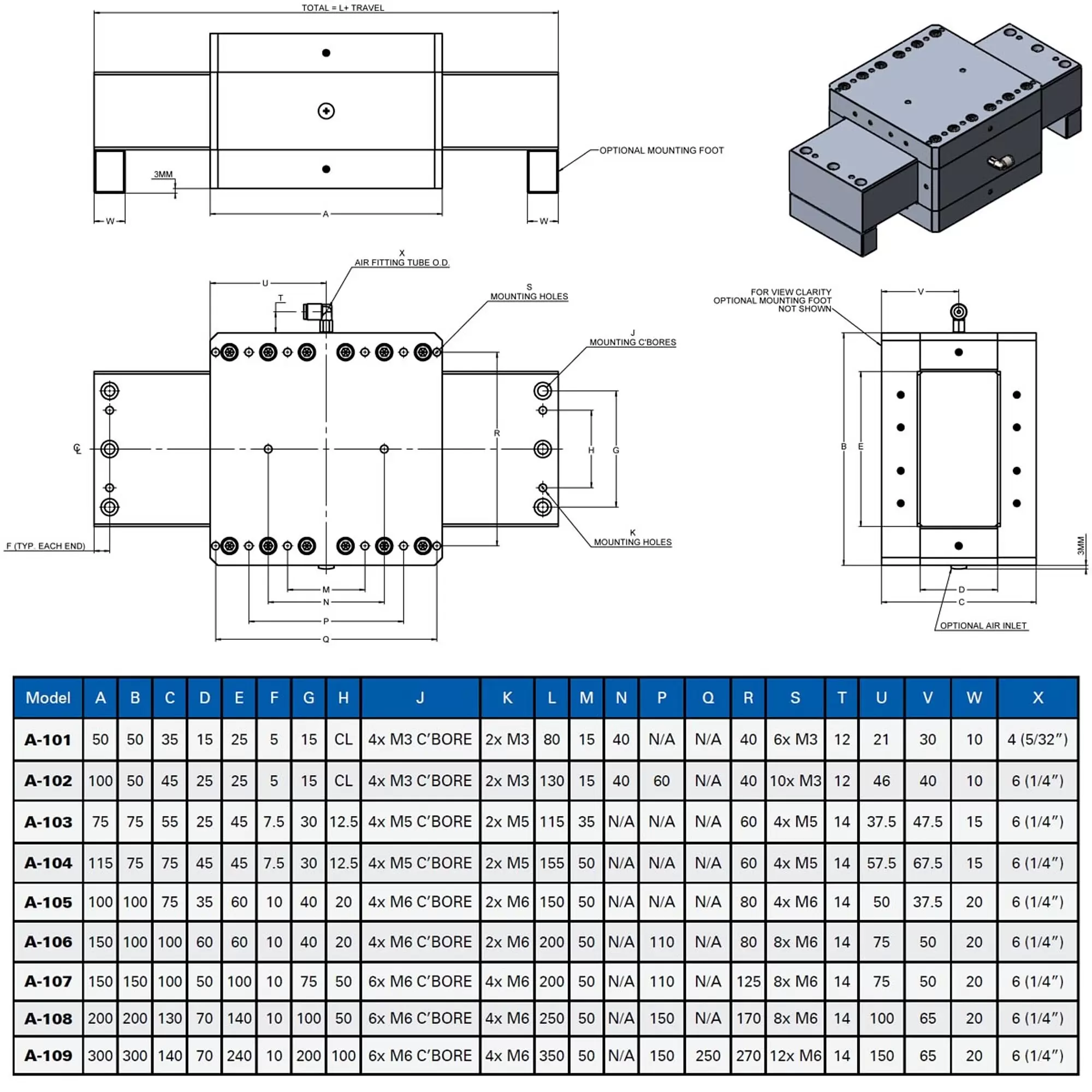

A-10x.xxx, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

Linear air bearings of the PIglide RB series are exactly right for applications that need smooth, precise, linear motion. The air bearing modules replace ball or crossed roller guides and are easy to integrate. They offer improved straightness, angular deviation, and repeatability compared to stage units with ball guides, especially for travel ranges longer than 100 mm.

Because air bearings are basically friction free, they work without stiction on approach or during operation, even under maximum load. Air bearings work without making contact and with purified air, and are virtually maintenance and wear free.

Accessories and options

Air preparation kit
Mounting Feet
Custom configurations on request
Several motion platforms on one guide
Constructions with moving guide

	Size of the motion platform / mm × mm	Travel range / mm	Vertical load capacity* / N	Lateral load capacity* / N
A-101	50 × 50	50 to 200	130	75
A-102	50 × 100	50 to 300	260	260
A-103	75 × 75	50 to 300	350	195
A-104	75 × 115	50 to 300	540	540
A-105	100 × 100	50 to 300	630	370
A-106	100 × 150	50 to 600	950	950
A-107	150 × 150	50 to 750	1580	790
A-108	200 × 200	50 to 1000	2950	1475
A-109	300 × 300	50 to 1000	7600	2210

	Travel ranges to 300 mm	Travel ranges to 600 mm	Travel ranges to 1000 mm
Straightness / flatness**	±1.25 μm	±2.5 μm	±5 μm
Straightness / flatness, per 25 mm travel range**	±0.25 μm	±0.25 μm	±0.25 μm
Position stability**	±0.05 μm	±0.05 μm	±0.05 μm
Pitch / yaw, per 25 mm travel range**	1.2 µrad	1.2 µrad	1.2 µrad
Pitch / yaw, overall**	10 µrad	20 µrad	30 µrad

	A-10x.xxx
Operating pressure	80 psi (550 kPa) nominal
Air consumption	<1.0 SCFM (28 SLPM)
Air quality	Clean (filtered to 1.0 μm or better) - ISO 8573‑1 Class 1 Oil free - ISO 8573‑1 Class 1 Dry (-15 °C dew point) - ISO 8573‑1 Class 3
Materials	Hardcoat aluminum, stainless steel mounting hardware

* The specified load capacities assume an operating pressure of 80 psi (550 kPa). For an alternative operating pressure, contact PI for determining other load capacities.

** Precision specifications depending on load, orientation, and external forces on the bearing. Contact PI for application-specific parameters.

3D Models

A-10x 3-D model

Version / Date

zip - 2 MB

Add to List Remove from List

Datasheet

Datasheet A-10x

Version / Date

2020-05-15
pdf - 519 KB

Download

Documentation

User Manual A-10x

Version / Date

2016-10-28
pdf - 594 KB

Add to List Remove from List

White Papers

Air Bearings: When to Use and When to Avoid in Your Motion Application

All Positioning Stages are not Created Equal. Author: Matt Reck, PI

Version / Date

WP4003 2015-09
pdf - 3 MB

Download

Size of the motion platform 50 mm × 50 mm

A-101.050

PIglide RB linear air bearing module, motion platform 50 mm × 50 mm, travel range 50 mm
