Products PI - Miniature Stages Miniature Linear Stages

Miniature Linear Stages / Miniature Linear Stages with Ultsasonic Piezo Motor

When working on positioning jobs that require a little amount of space, miniature stages are crucial. Due to their direct drive design, piezomotor products like Q-motion®, PIline®, and PiezoWalk® enable the most compact stages.

The use of PI stages with electromagnetic motors in automation activities is widespread and well-established. Inquire about customisation!

The dynamic range of ultrasonic motors is quite vast, ranging from microns/second to hundreds of millimeters/second, with very quick start-stop behavior. Compact piezo ceramic elements are the foundation of both linear and rotary ultrasonic motors, which operate at high frequencies between 10 and 100 kHz, well above human hearing range. A linear or rotary ceramic surface attached to a linear runner or rotary platform receives nanoscopic motion with each oscillation cycle.

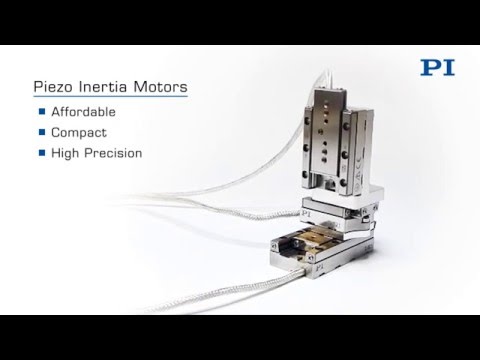

Miniature Stages with Q-Motion®, PILine® & PiezoWalk® Drives

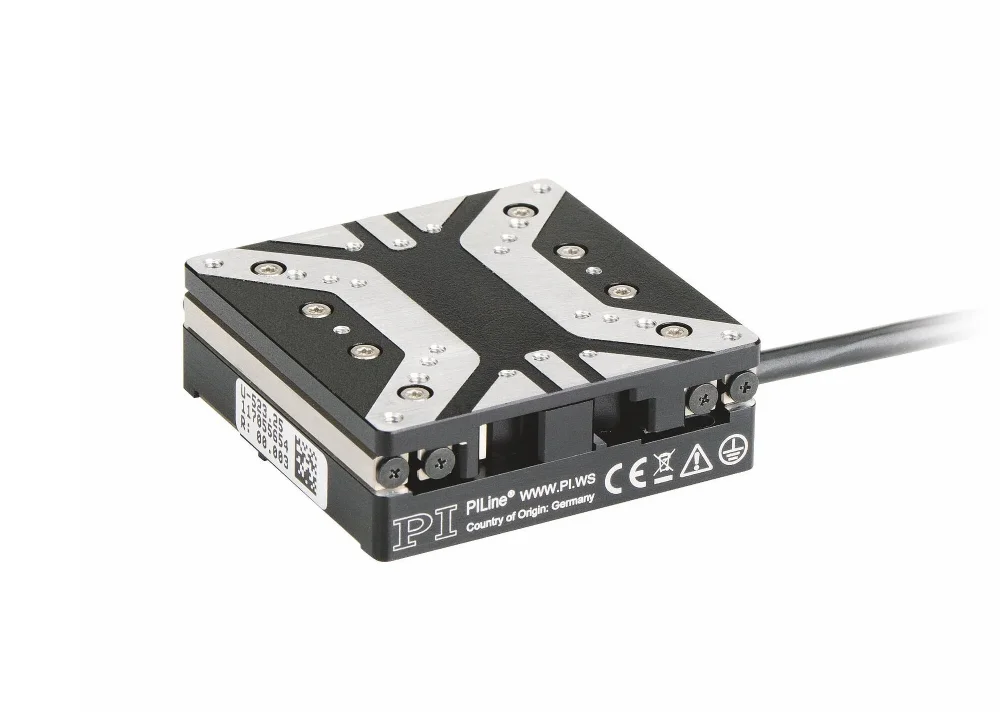

U-523 PILine® Linear Stage Compact Linear Stage with Ultrasonic Piezo Motor

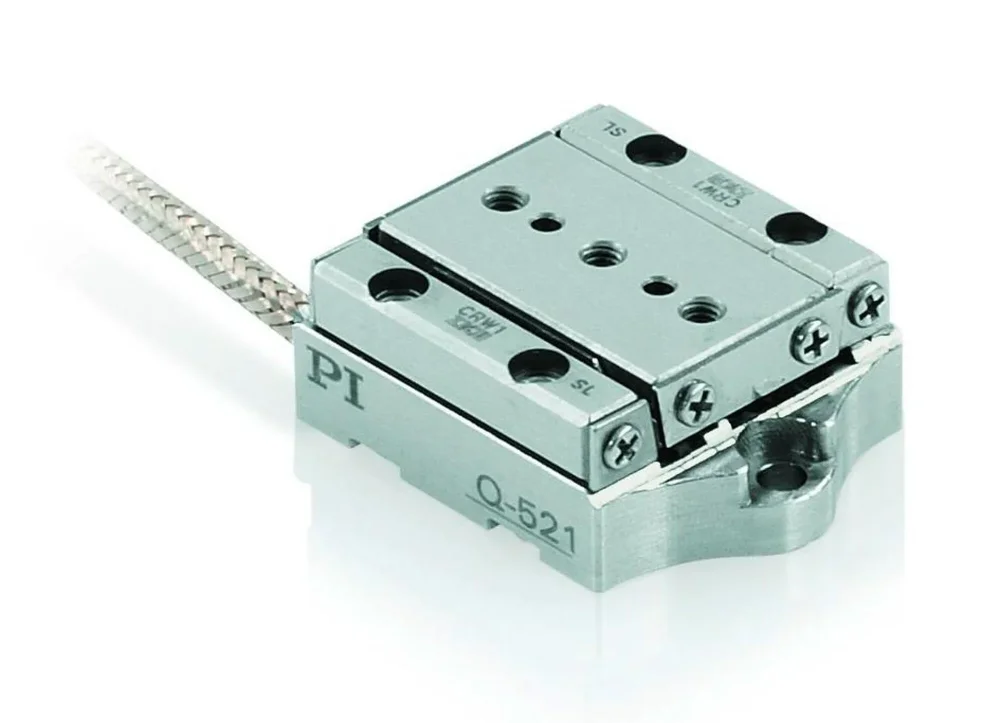

Q-521 Q‑Motion® Miniature Linear Stage Smallest Linear Stage with Position Control, High Resolution and Affordable Price

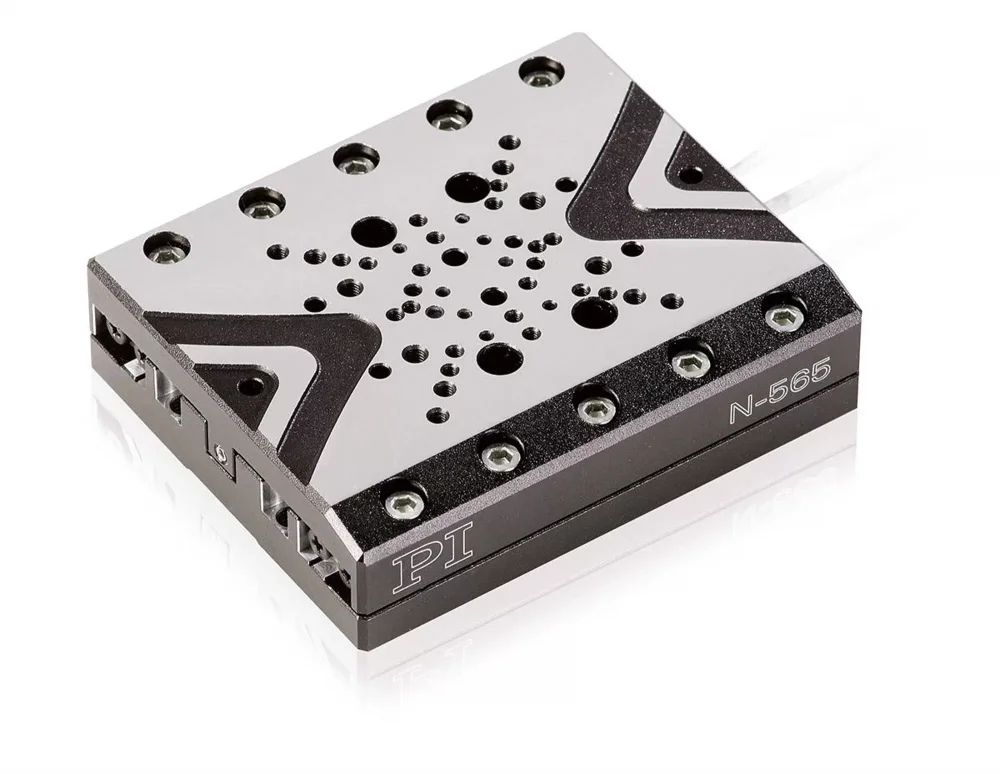

N-565 Linear Stage with the Highest Precision NEXACT® Piezo Stepping Drive with Subnanometer Encoder Resolution

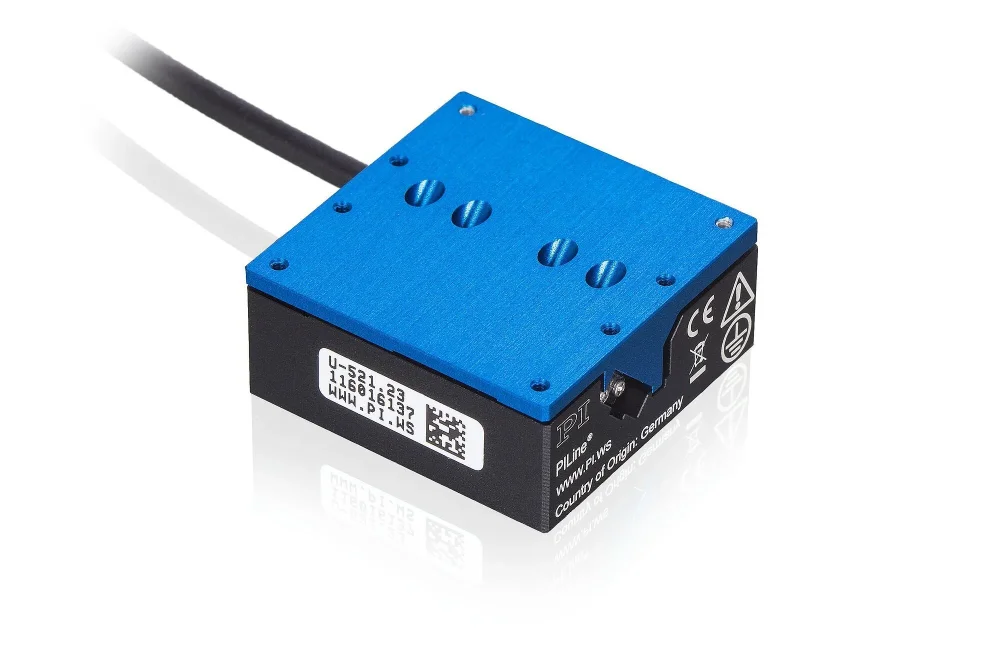

U-521 PILine® Linear Stage Compact Linear Stage with Ultrasonic Piezo Motor

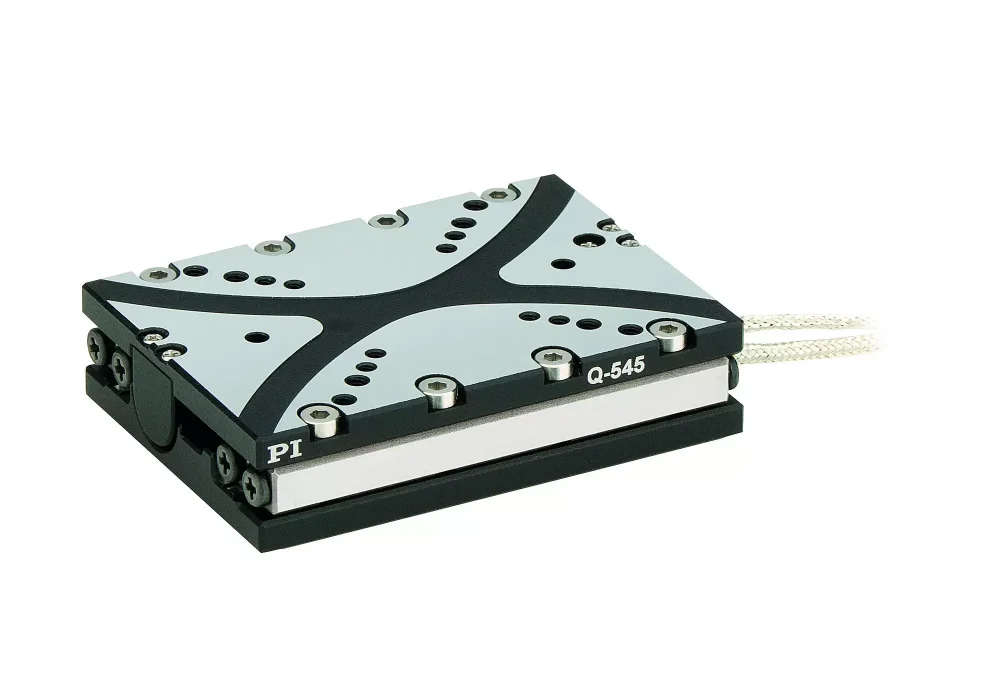

Q-545 Q‑Motion® Precision Linear Stage High Forces and Small Design Due to Piezo Motors

Miniature Stages with PIMag® VC VoiceCoil and 3-Phase Linear Motors, Stepper, DC & Brushless DC Motors

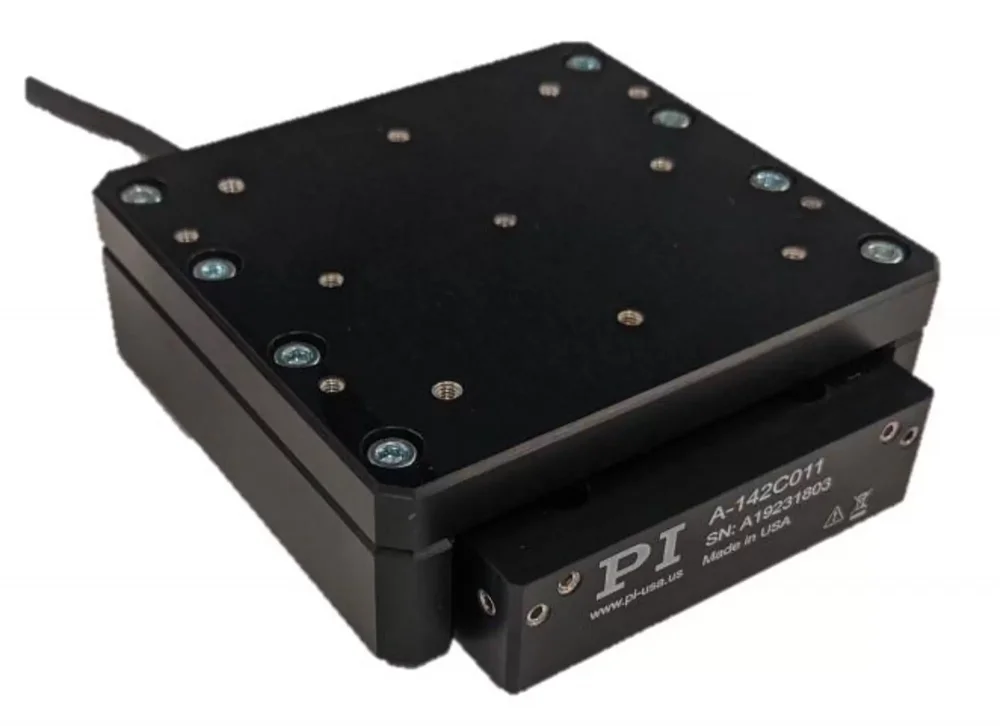

The A-142.010A1 miniature air bearing linear slide provides high speed and resolution with a direct drive voice coil motor and high precision linear encoder. A-142 PIglide Voice Coil Linear Stage with Air Bearings High Performance • Cleanroom-Compatible • Option for Vertical Mounting
M-110.C86311 M-110.C86311 Linear Stage System Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

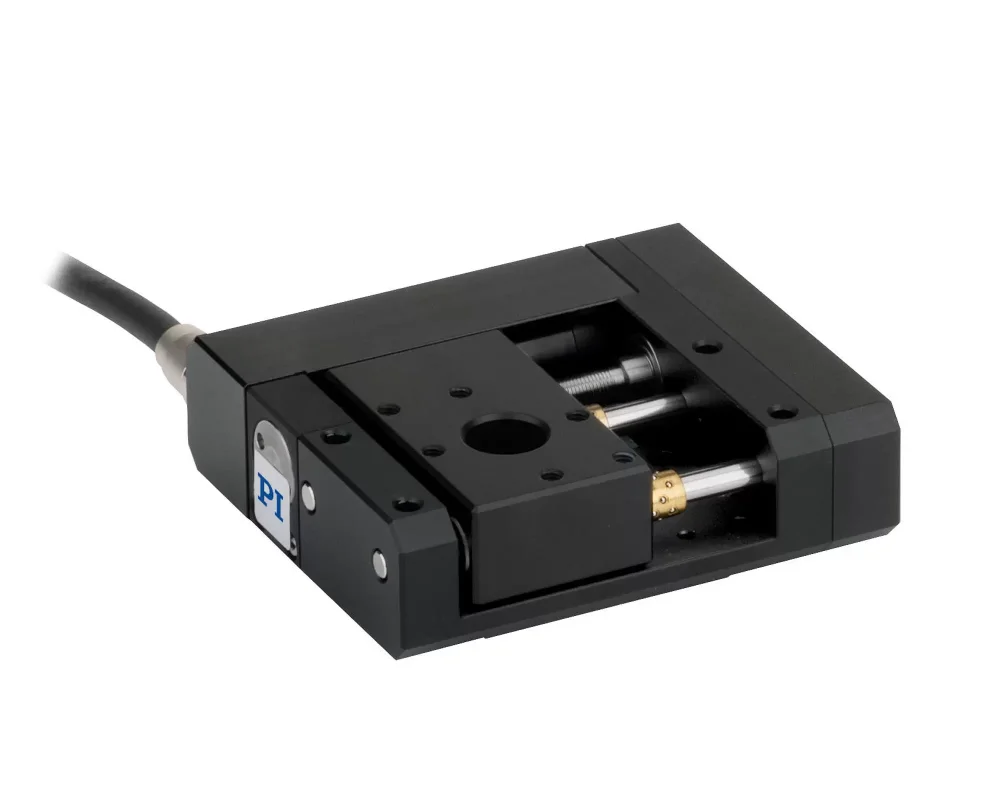

M-110 • M-111 • M-112 Compact Linear Stage XY(Z) Combinations with a Variety of Drives and Travel Ranges

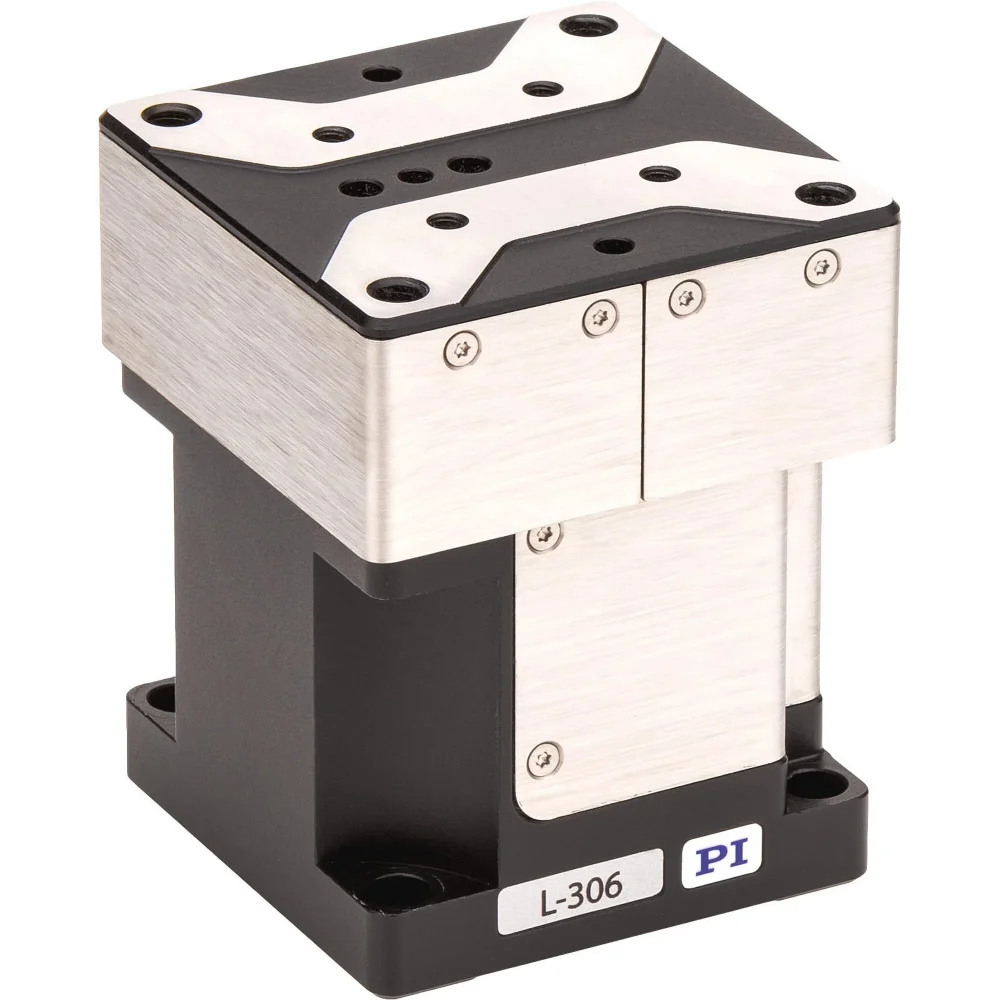

L-306 Compact Precision Z Stage Compact Design, Multi-Axis Combinations

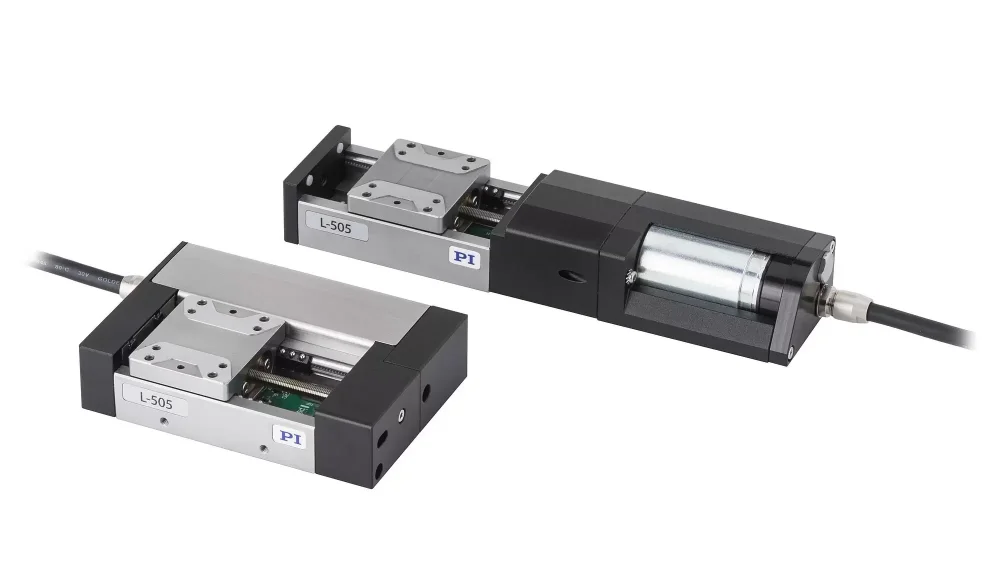

L-505 Compact Linear Stage With DC or Stepper Motor
V-408 PIMag® Linear Stage Inexpensive, with Linear Motor

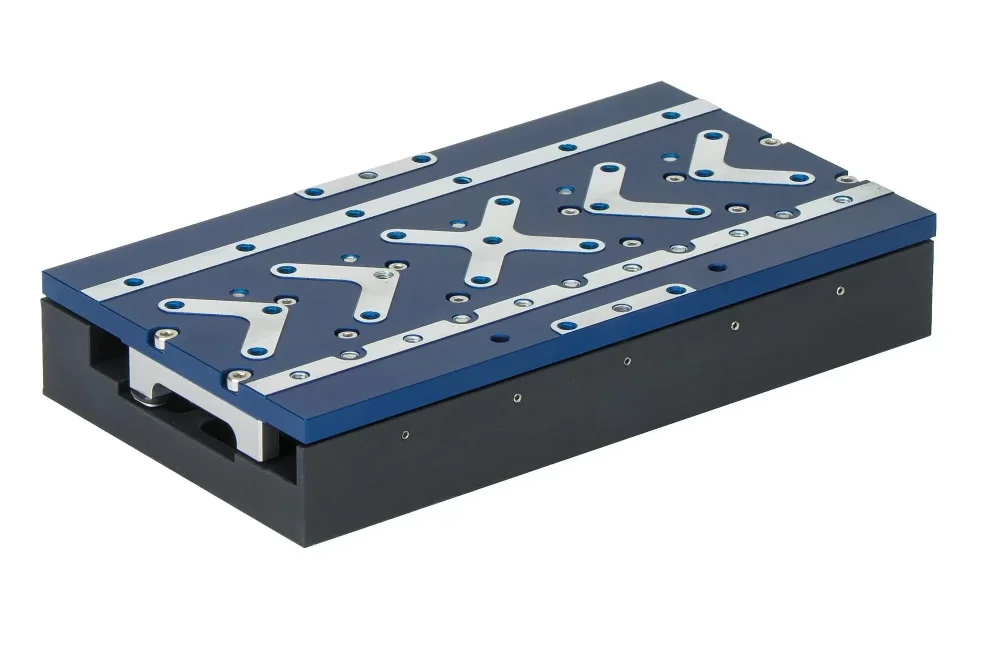

V-508.251020, PIMag® precision linear translation stage, 80 mm travel variant with 1 nm smallest motion increments shown. V-508 High-Precision, Low-Profile Linear Motor Translation Stage Nanopositioning Performance and High Speed in a Compact, Affordable Stage Design

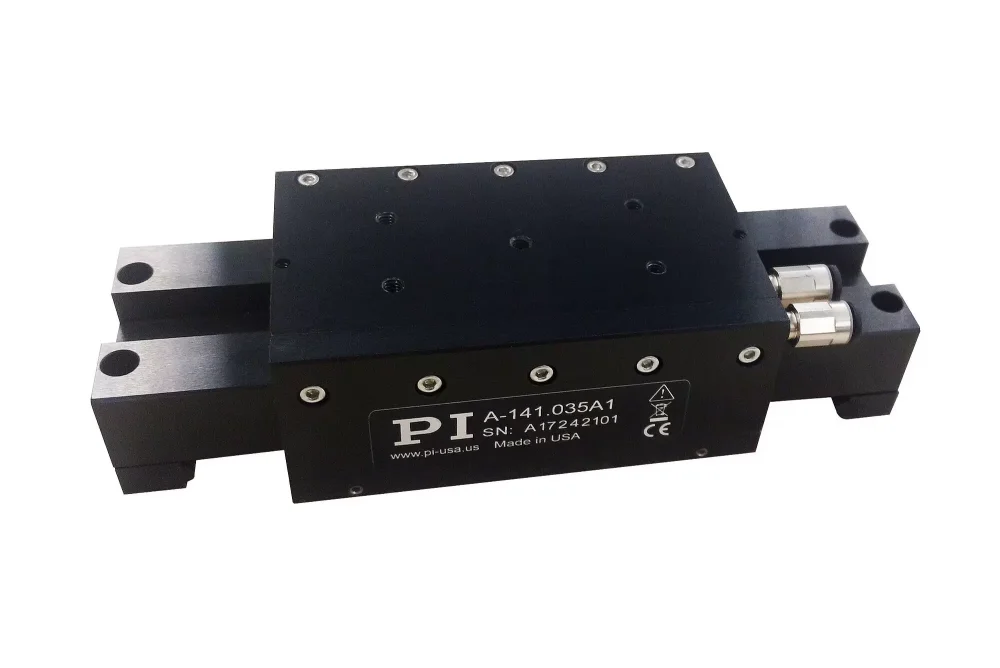

A-141 PIglide MB Miniature Linear Stage with Air Bearings High Performance, Cleanroom Compatible, Customizable

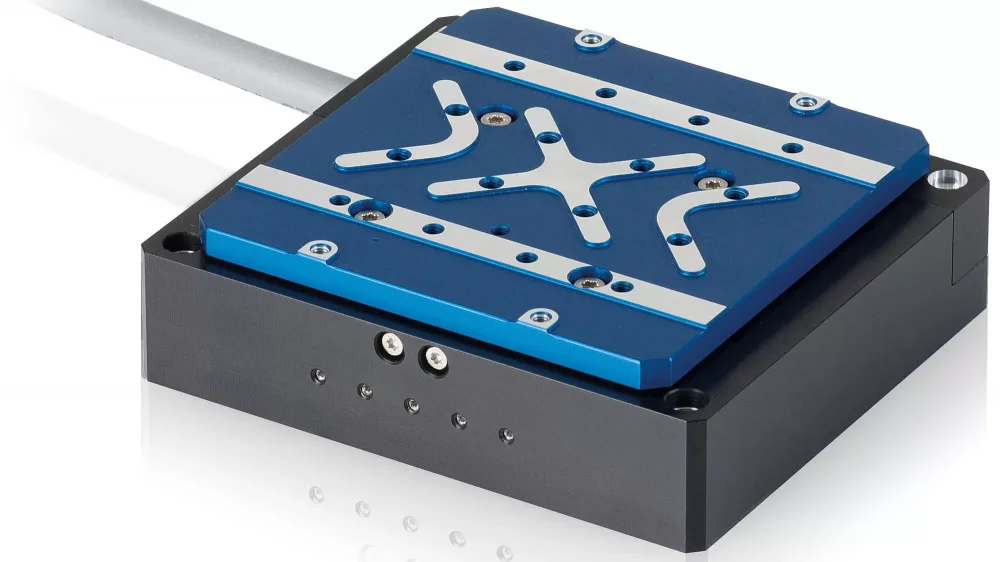

V-524.1AA V-522 • V-524 • V-528 High-Dynamics PIMag® Linear Stage Voice Coil Direct Drive with Direct Position Measuring

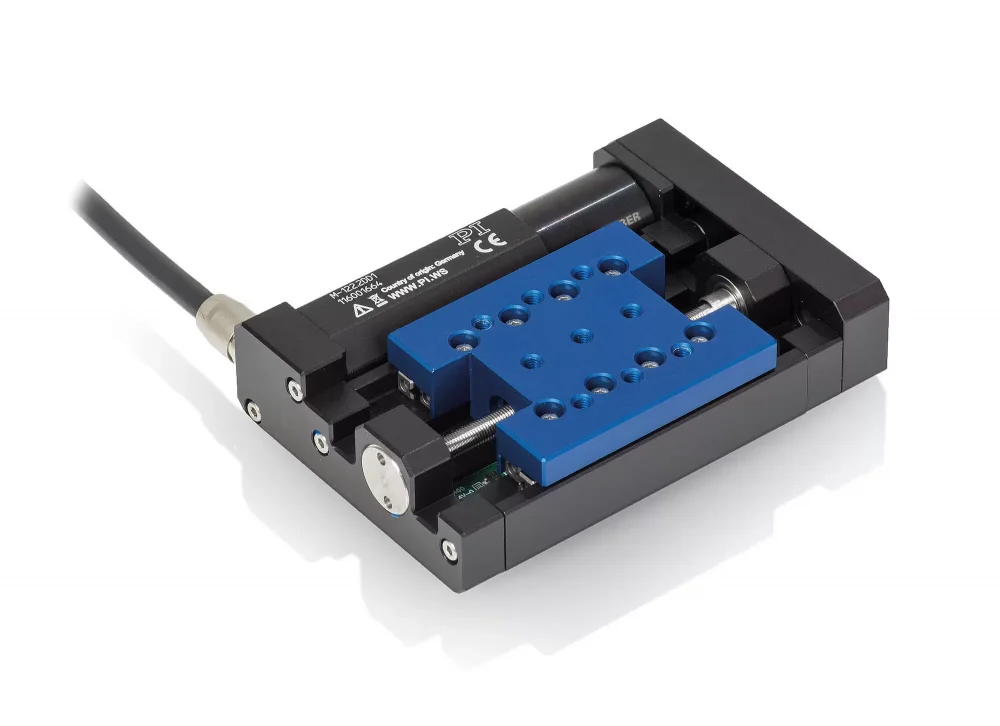

M-122.2DD1 Microtranslation Stage Compact Linear Stage with Direct Position Measuring

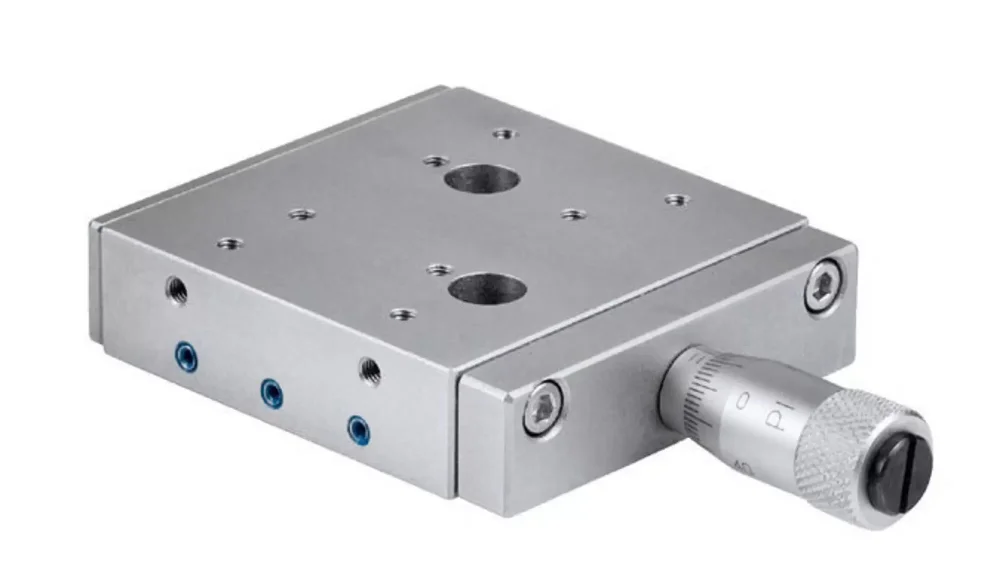

M-105.10 M-105 Microtranslation Stage Precision Crossed Roller Guides, PiezoMike Option, XY(Z) Combinations

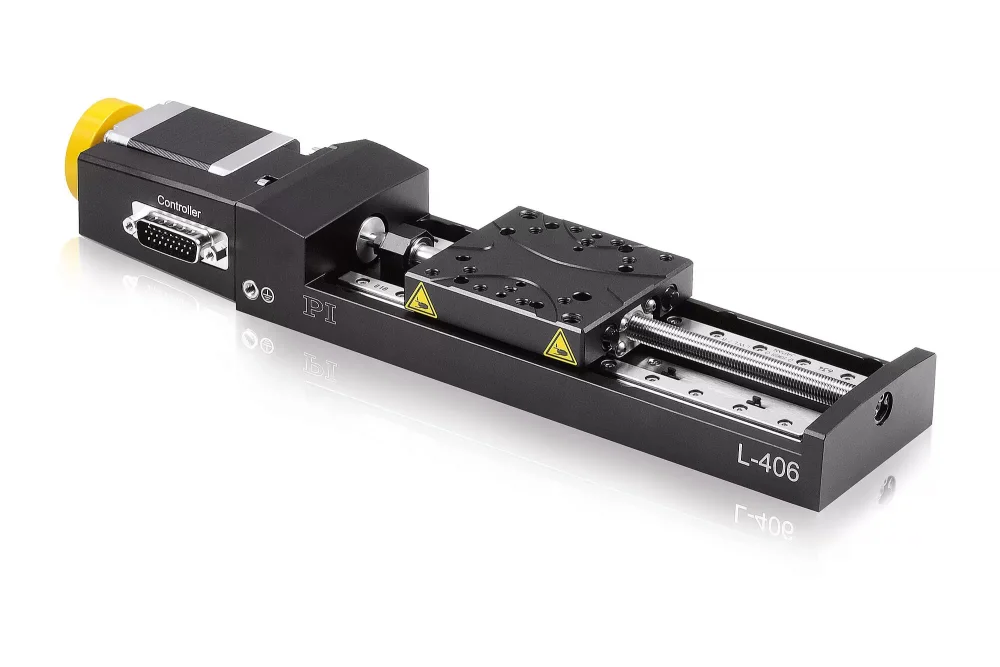

L-406 Compact Linear Stage For Loads to 10 kg
