Stages with Magnetic Direct-Drive Linear Motor

The majority of dynamic stages are possible with the frictionless magnetic direct drive technology. They employ fewer mechanical parts than motor-spindle-based stages, which reduces friction and backlash and increases precision.

For even superior performance, PI's PIglide stages combine the magnetic direct drive with extremely accurate preloaded air bearings.

With Mechanical Bearing

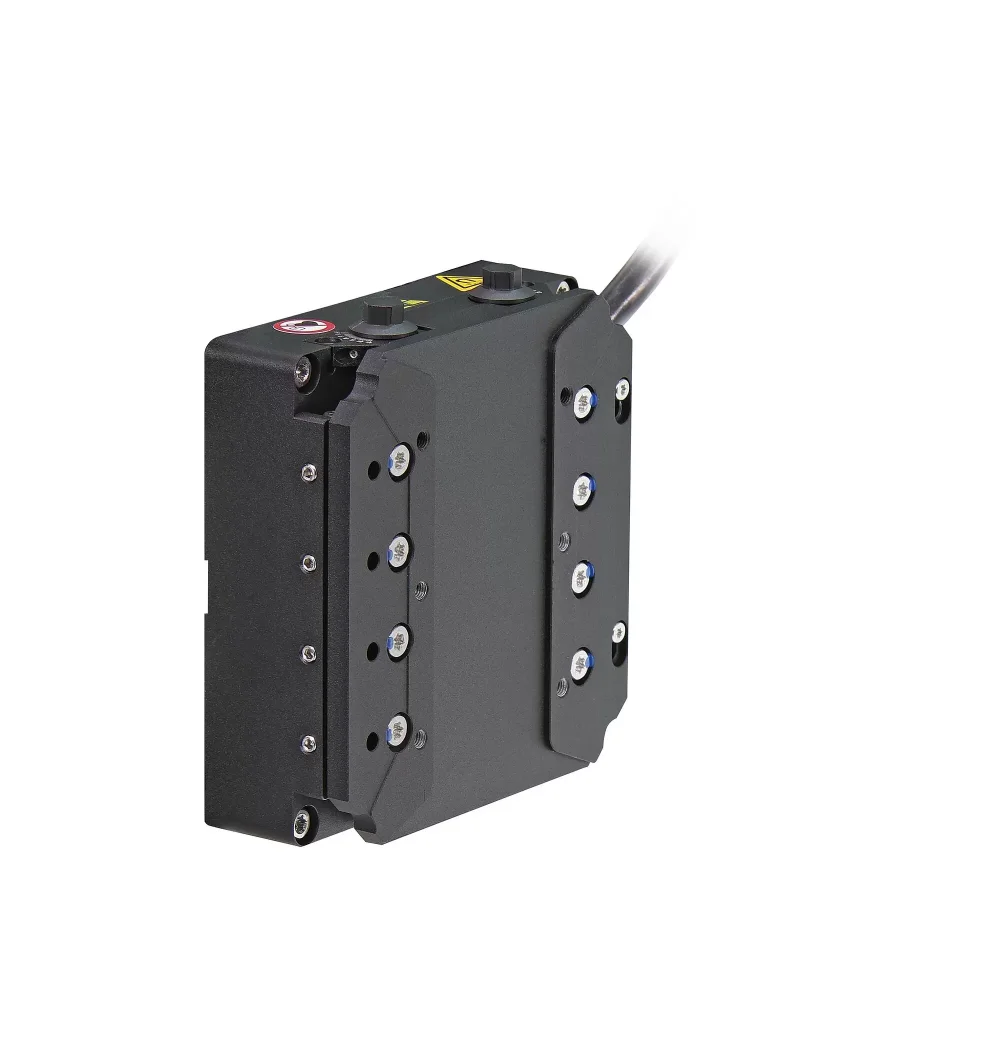

V-308 Voice Coil PIFOC Focus Drive for Objectives High-dynamics positioner for microscope objectives

V-857 High-Speed Linear Stage High Load Capacity • Cost Effective • Linear Motor

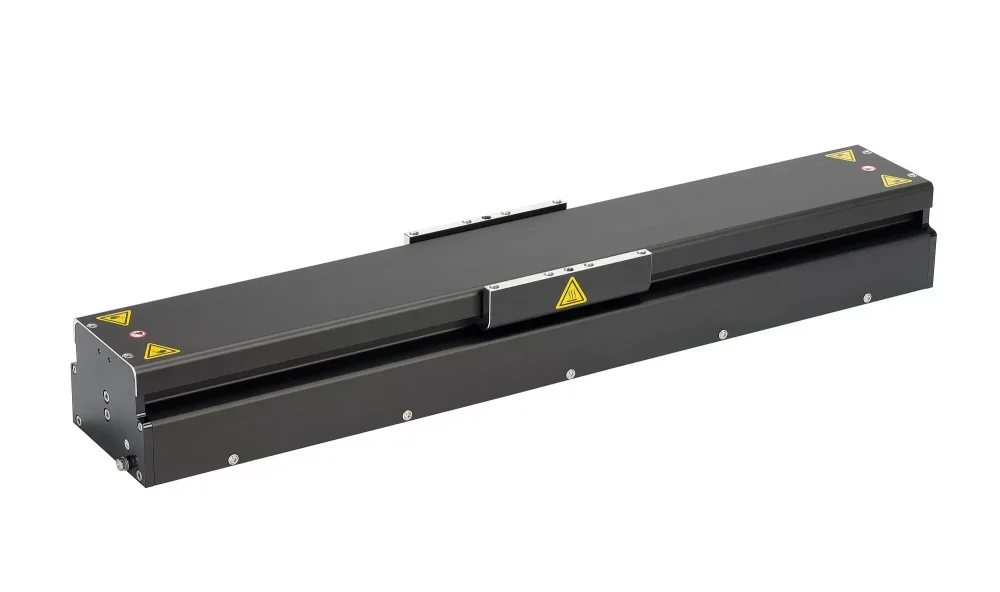

V-855 High-Speed Linear Stage High Load Capacity • Cost Effective • Linear Motor

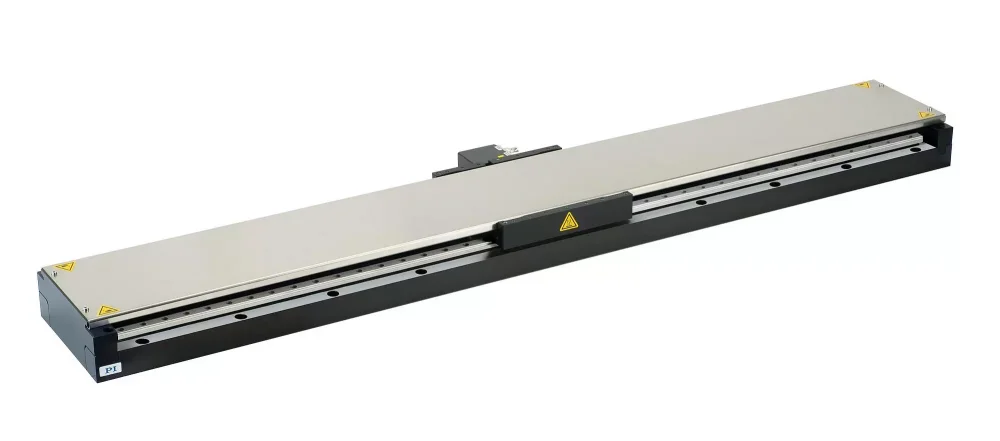

V-817 High-Load Linear Stage High Performance • Linear Motor • Cost Effective • Fast Delivery

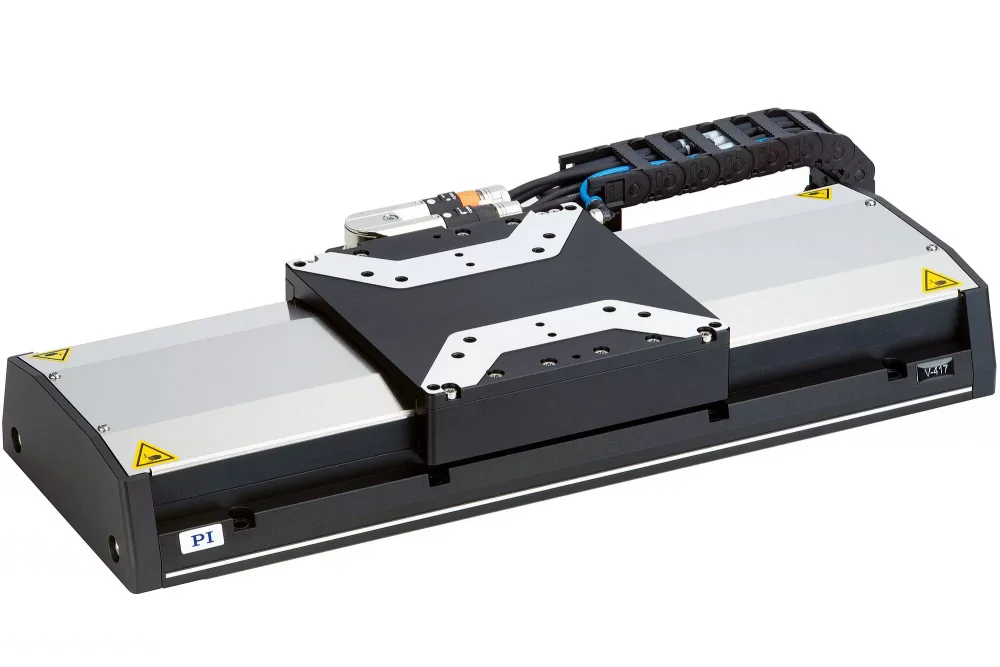

V-417 High-Load Linear Stage High Performance, Linear Motor

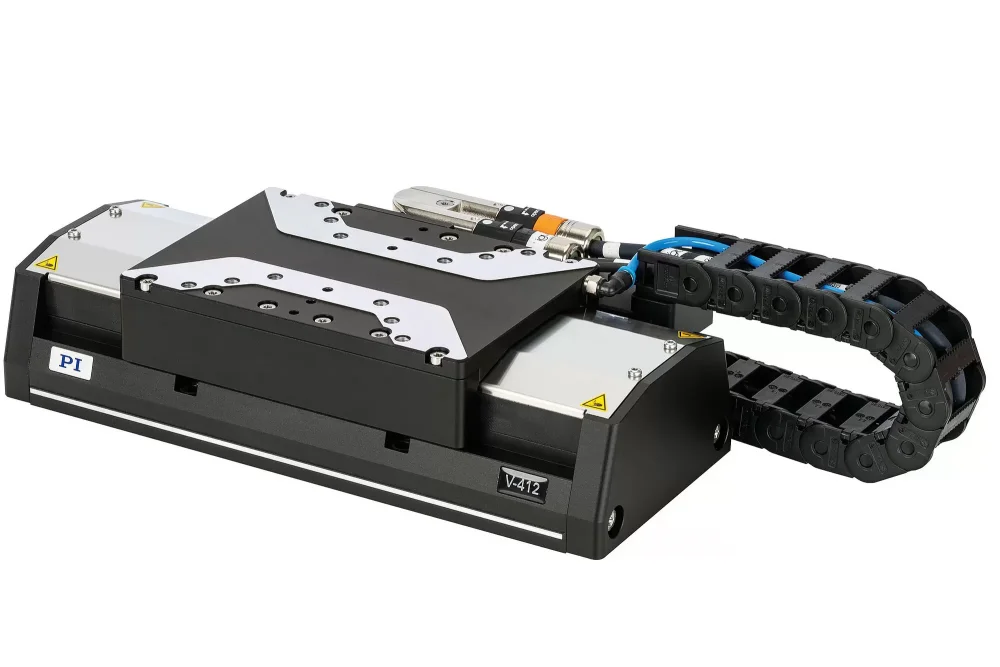

V-412 High-Load Linear Stage High Performance, Linear Motor

V-408 PIMag® Linear Stage Inexpensive, with Linear Motor

V-508.251020, PIMag® precision linear translation stage, 80 mm travel variant with 1 nm smallest motion increments shown.

V-508 High-Precision, Low-Profile Linear Motor Translation Stage Nanopositioning Performance and High Speed in a Compact, Affordable Stage Design

V-522 • V-524 • V-528 High-Dynamics PIMag® Linear Stage Voice Coil Direct Drive with Direct Position Measuring

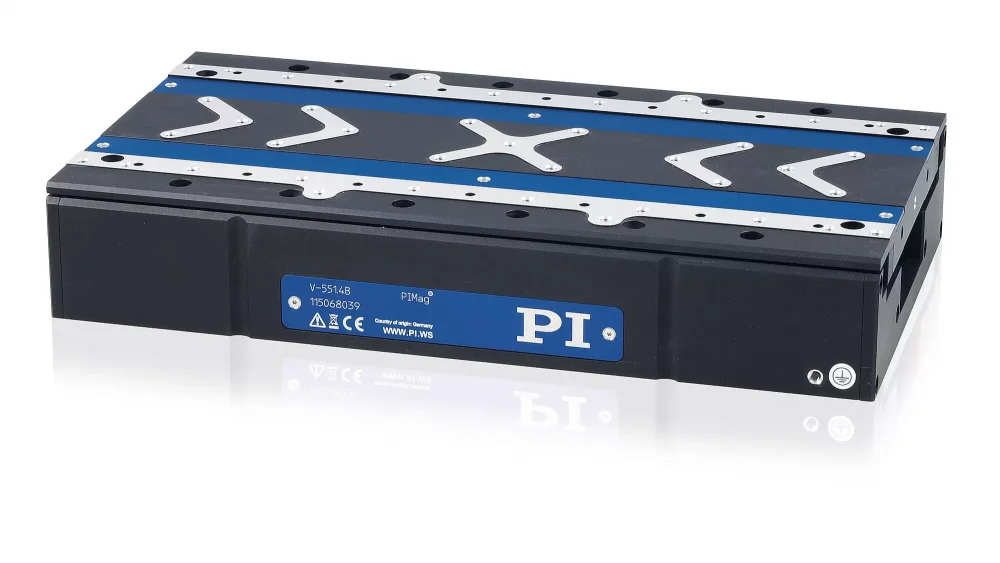

V-551 Precision Linear Stage High Velocity and Precision due to Magnetic Direct Drive

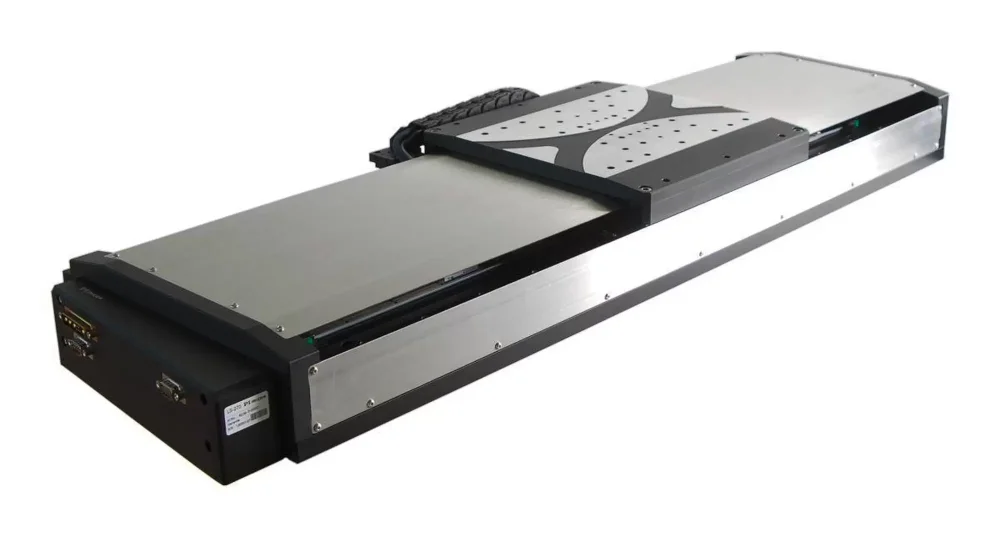

LMS-270 Precision Linear Stage High Dynamics due to the Magnetic Direct Drive, High Stability

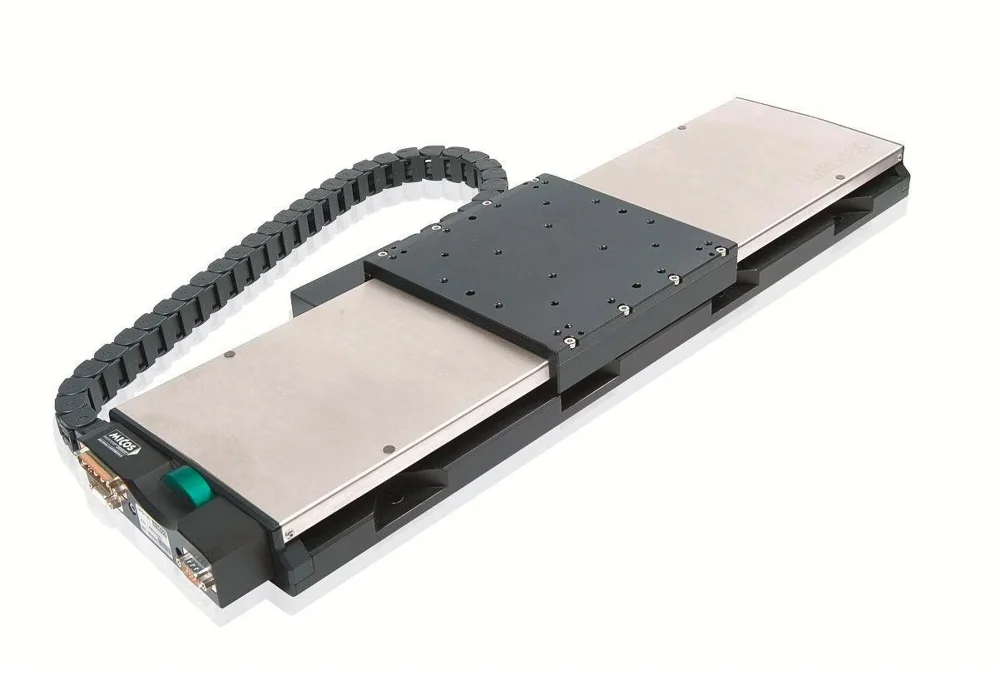

LMS-180 Precision Linear Stage High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

PIMag®

PI has many standard and customer-specific positioning solutions on offer that are equipped with magnetic direct drives; the company has also many years of experience in the design, construction, and manufacture of the necessary system components such as guides, sensors, control technology, and software. PI can also develop proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. These >> proprietary motors, developed in-house, are identified by the PIMag® brand name.
