Products PI - Sensors, Components & Accessories Microscopy Stage Accessories
P-726 QuickLock Thread Adapter
Simple Installation with QuickLock Fast Locking Mechanism
  • Thread adapters adapting the PIFOC positioner to the microscope easily
  • Microscope side quick lock for twist-free cable routing

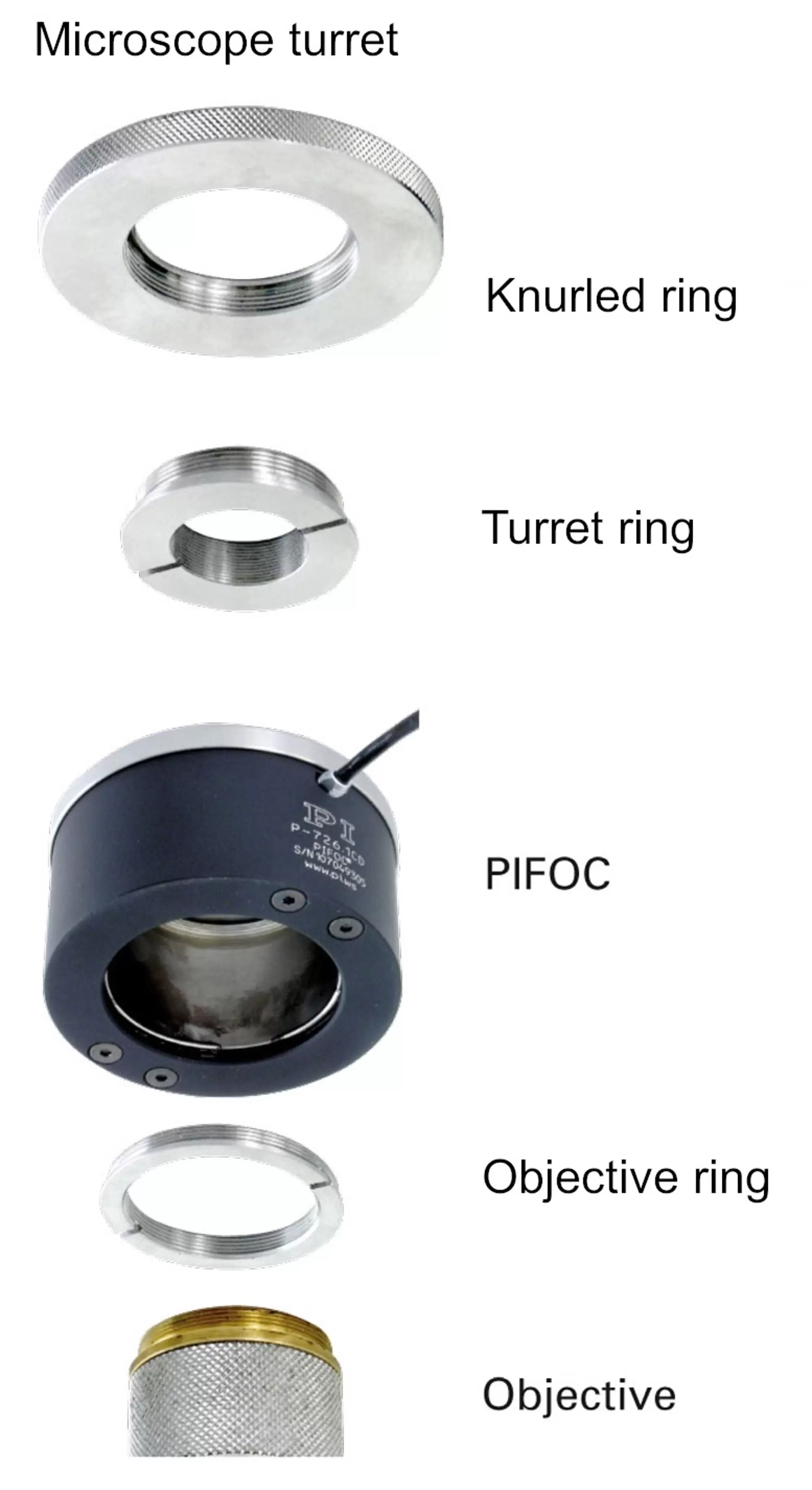

P-726 QuickLock thread adapter
P-726 QuickLock thread adapter

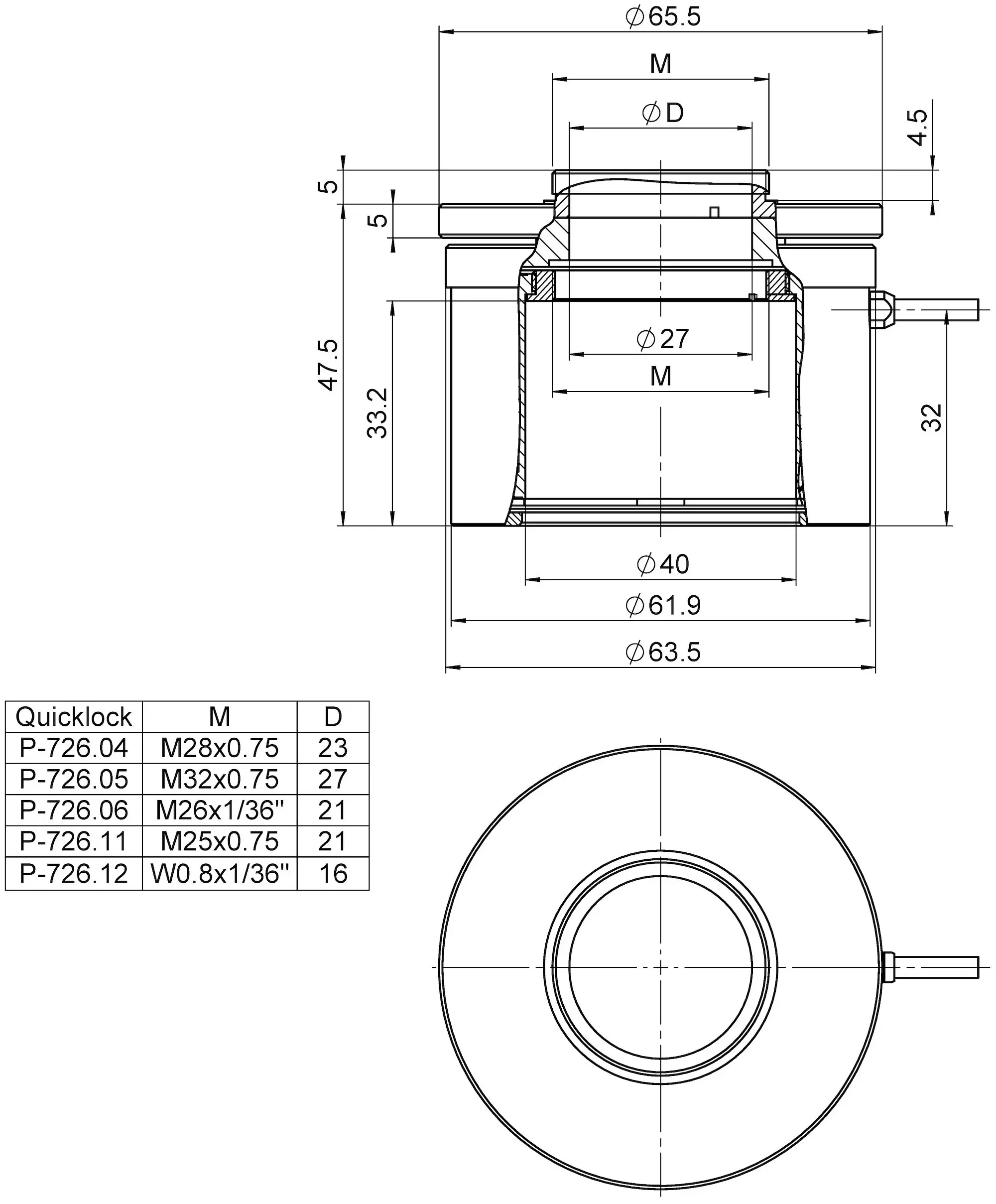

P-726 with QuickLock adapter, dimensions in mm
P-726 with QuickLock adapter, dimensions in mm
Product DescriptionDescriptionQuote/Order

The PIFOC® is inserted between the revolving nosepiece and the objective using the QuickLock fast locking adapter. After screwing the adapter into the revolving nosepiece, the PIFOC® contained is fixed to the desired orientation. Since the objective positioner itself does not have to be rotated, cabling is no longer an issue

P-726.04
PIFOC thread adapter M28 × 0.75
Add to Quote List Remove from Quote List
P-726.05
PIFOC thread adapter M32 × 0.75
Add to Quote List Remove from Quote List
P-726.06
PIFOC thread adapter M26 × 1/36''
Add to Quote List Remove from Quote List
P-726.11
PIFOC thread adapter M25 × 0.75
Add to Quote List Remove from Quote List
P-726.12
PIFOC thread adapter W0.8 × 1/36''
Add to Quote List Remove from Quote List
