P-845 Preloaded Piezo Actuators

For Very High Loads and Forces, with Position Sensor

Outstanding lifetime due to PICMA® piezo actuators
Travel range to 90 µm
Push force capacity to 3000 N
Pull force capacity to 700 N
µs response time
Subnanometer resolution
Vacuum versions, optional water-resistant housing

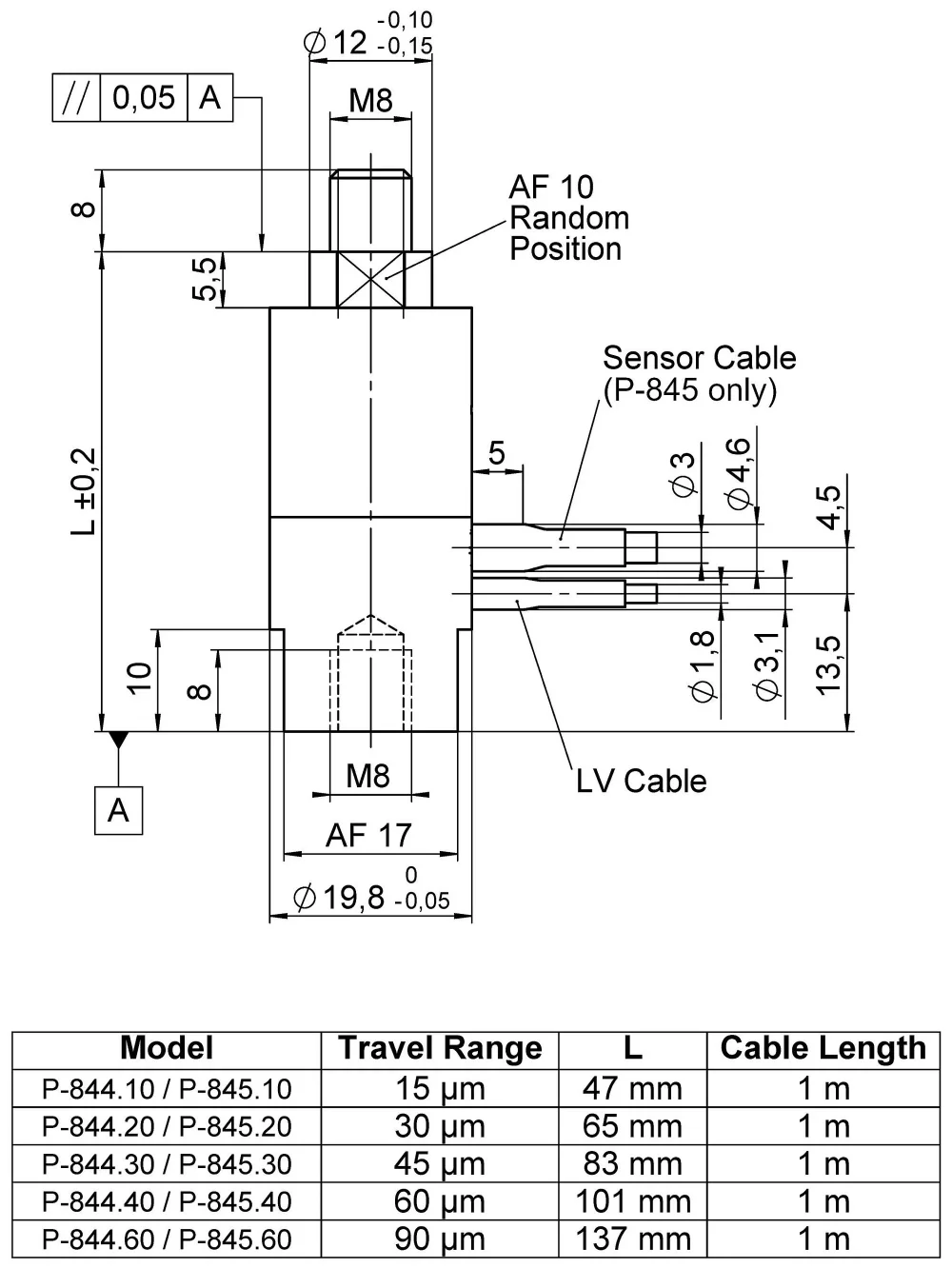

P-844 / P-845, dimensions in mm. Sensor included only with P-845.

P-844.xxV / P-845.xxV, dimensions in mm. Sensor included only with P-845.xxV.

Product Description Description Specifications Downloads Quote/Order

Application fields

Static and dynamic precision positioning
Fiber positioning
Laser tuning
Nanotechnology

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.

Outstanding lifetime thanks to PICMA^® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Motion	P-845.10	P-845.20	P-845.30	P-845.40	P-845.60	P-845.60V	Tolerance
Active axes	Z	Z	Z	Z	Z	Z
Travel range in Z	15 µm	30 µm	45 µm	60 µm	90 µm	90 µm
Positioning	P-845.10	P-845.20	P-845.30	P-845.40	P-845.60	P-845.60V	Tolerance
Integrated sensor	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring
System resolution in Z	0.3 nm	0.6 nm	0.9 nm	1.2 nm	1.8 nm	1.8 nm
Resolution in Z, open loop	0.15 nm	0.3 nm	0.45 nm	0.6 nm	0.9 nm	0.9 nm	typ.
Drive Properties	P-845.10	P-845.20	P-845.30	P-845.40	P-845.60	P-845.60V	Tolerance
Drive type	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®
Electrical capacitance in Z	6 µF	12 µF	18 µF	24 µF	36 µF	36 µF	±20 %
Mechanical Properties	P-845.10	P-845.20	P-845.30	P-845.40	P-845.60	P-845.60V	Tolerance
Stiffness in Z	225 N/µm	107 N/µm	75 N/µm	57 N/µm	38 N/µm	38 N/µm	±20 %
Resonant frequency in Z, unloaded	16 kHz	12 kHz	9 kHz	7.5 kHz	5.5 kHz	5.5 kHz	±20 %
Permissible push force in Z	3000 N	3000 N	3000 N	3000 N	3000 N	3000 N	max.
Permissible pull force in Z	700 N	700 N	700 N	700 N	700 N	700 N	max.
Permissible torque in θZ	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	max.
Mass without cable	84 g	108 g	132 g	156 g	204 g	204 g	±5 %
Material	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel
Length	47 mm	65 mm	83 mm	101 mm	137 mm	137 mm	±0,2 mm
Miscellaneous	P-845.10	P-845.20	P-845.30	P-845.40	P-845.60	P-845.60V	Tolerance
Operating temperature range	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C
Connector	LEMO LVPZT	LEMO LVPZT	LEMO LVPZT	LEMO LVPZT	LEMO LVPZT	LEMO LVPZT
Cable length	1 m	1 m	1 m	1 m	1 m	1 m
Recommended controllers / drivers	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831
Vacuum class						10⁻⁶ hPa

3D Models

P-844 / P-845 3-D model

Version / Date

zip - 156 KB

Add to List Remove from List

Datasheet

Datasheet P-845

Version / Date

2023-03-21
pdf - 798 KB

Download

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

Version / Date

1.2.0 11/2020
pdf - 958 KB

Download

Documentation

User Manual P845M0001

P-845 Preloaded piezo actuators

Version / Date

2021-01-29
pdf - 2 MB

Add to List Remove from List

Documentation

User Manual P845M0002

P-845.xxV Preloaded piezo actuators (vacuum versions)

Version / Date

2021-02-23
pdf - 3 MB

Add to List Remove from List

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date

2021-04-19
pdf - 377 KB

Download

Product Note

Product Change Notification P-8XX.XX

Version / Date

2023-02-22
pdf - 92 KB

Download

P-845.10

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 47 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length
