Products PI - Miniature Stages Miniature Rotation Stages
RS-40 Compact Rotation Stage
Precision Positioning
  • Unlimited travel range
  • Repeatability to 87 µrad
  • 20 mm Ø aperture
  • Reference switch
  • Vacuum-compatible variants available
Direction of the axes and torques for rotation stages
Direction of the axes and torques for rotation stages

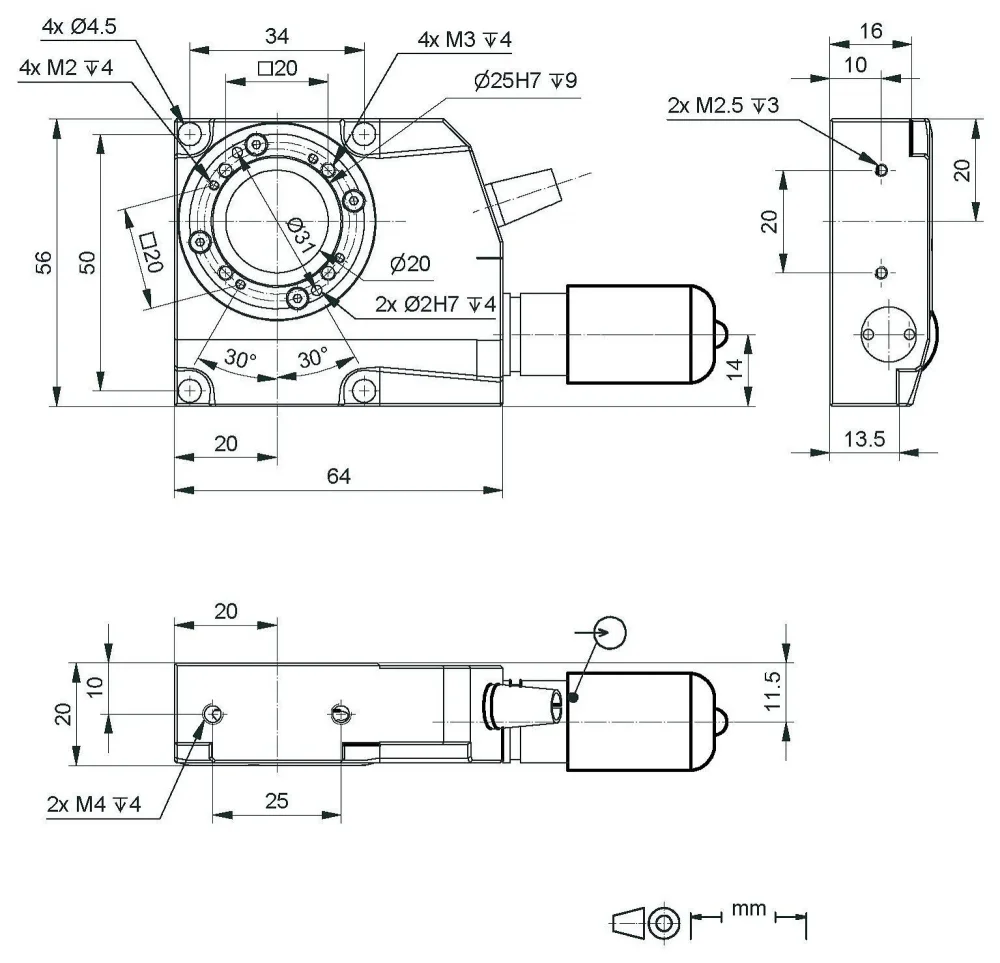

RS-40 rotation stage, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
RS-40 rotation stage, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
RS-40 rotation stage, DC motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
RS-40 rotation stage, DC motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
RS-40 rotation stage, stepper motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
RS-40 rotation stage, stepper motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
Product DescriptionDescriptionDownloadsQuote/Order

Standard-class rotation stage

Worm drive. Aperture with 20 mm Ø. Reference switch.

Versions

  • DC motor with gearhead, rotary encoder on the motor shaft
  • Stepper motor with gearhead
  • Vacuum versions available on request

Application fields

Precision microassembly, research, automation, vacuum

3D Models
3D Models
RS-40 3-D model
Version / Date

zip - 615 KB
Add to List Remove from List
Datasheet
Datasheet
Datasheet RS-40
Version / Date
2023-07-14
pdf - 880 KB
Download
Documentation
Documentation
Short Instructions MP146EK
Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
2.0.0 01/2020
,,,,,pdf - 736 KB,,,,,
Download
Documentation
User Manual RS-40
Compact Rotation Stage
Version / Date
2022-05-03
,pdf - 655 KB,
Add to List Remove from List
321691001-0000
Compact rotation stage; DC gear motor; 360° rotational angle; 20 N load capacity; 7 °/s maximum angular velocity; incremental rotary encoder, 2048 cts./rev. sensor resolution, A/B quadrature, RS-422
Add to Quote List Remove from Quote List
321692001
Compact rotation stage; 2-phase stepper motor with gearhead; 360° rotational angle; 10 N load capacity; 5 °/s maximum angular velocity
Add to Quote List Remove from Quote List
