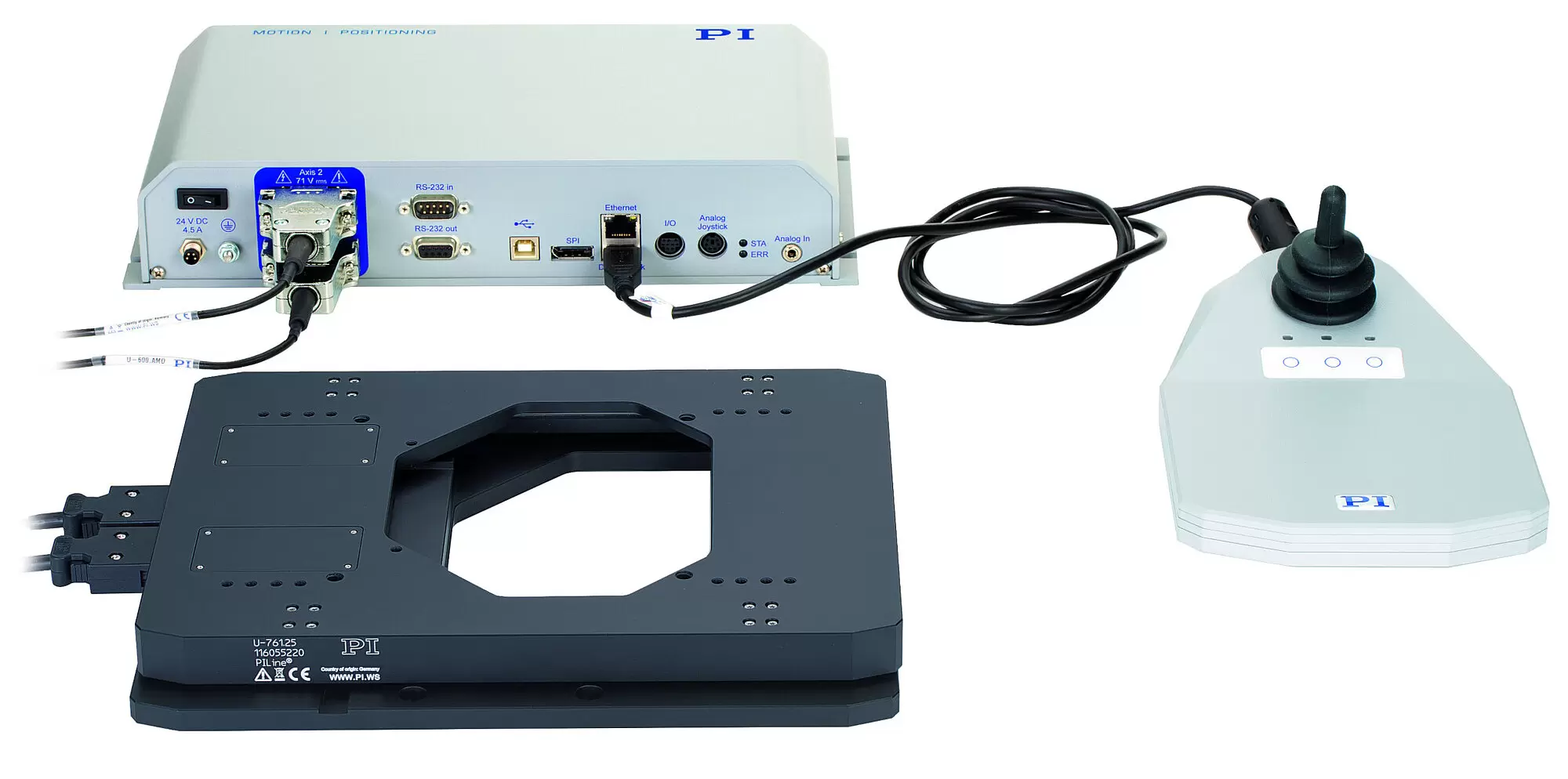

U-760 PILine® XY Stage System with Controller and Joystick

Compact, low vibration, low profile

Low-profile, quiet PILine® ultrasonic motor
Suitable for inverted light microscopes from several manufacturers
Bidirectional repeatability: ±0.5 µm
Travel range 25 mm × 25 mm
System with controller and USB joystick
Extensive accessories

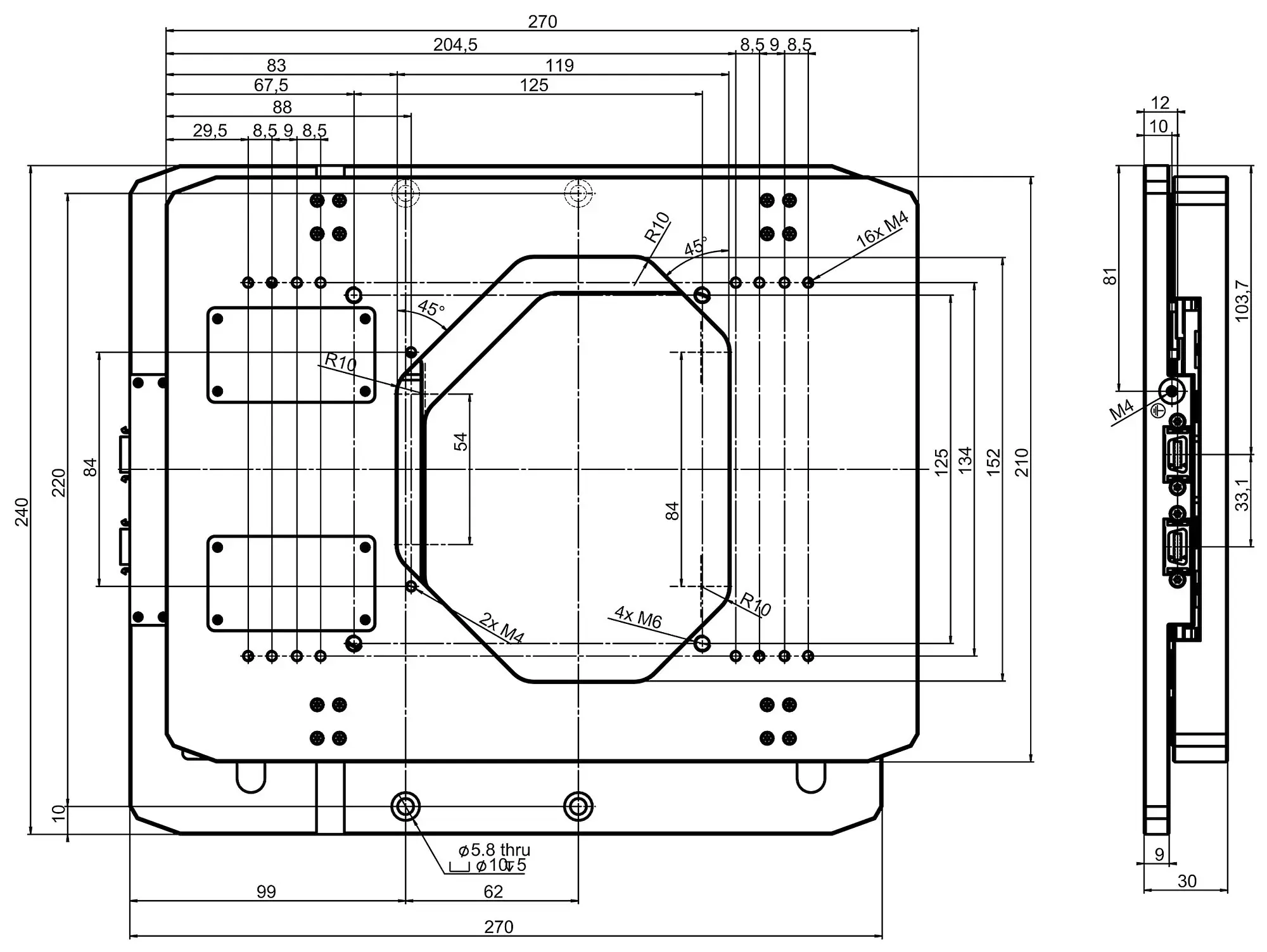

U-761.25, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

Microscope XY stage for examining with microscope slides and Petri dishes

The travel range 25 × 25 mm offered by the compact and low-profile U-760 microscope XY stage is particularly suitable for examining samples on standard microscope slides. A sample holder is also required and must be ordered separately.

High-resolution PILine^® piezo linear drive

Bidirectional repeatability ±0.5 µm. Highest stability due to low thermal load and no lubricants. Large dynamics range of 10 µm/s to 100 mm/s, ideal for operating with a joystick. Self-locking at rest. Low noise.

Extensive accessories / can be combined with numerous PI nanopositioners

It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the U-760. Adapter plates from PI are available for combining with other piezo nanopositioners.

Various sample holders available (holders for microscope slides/Petri dish holders).

Accessories necessary: Sample holder, fine positioning stages, and Z stages

You will find matching fine positioning stages (X / Y / Z / ΘX / ΘY / ΘZ), sample holders (microscope slide, holder for Petri dishes), as well as any adapter plates necessary in our "Microscope Stage Configurator" brochure.

Suitable for microscopes from several manufacturers

For inverted microscopes from Nikon (Eclipse Ti, Ti2) and Olympus (IX, IX2, IX3). Versions for other microscopes on request.

Motion and positioning	U-760.DNOS	Unit	Tolerance
	System with U-761.25 for Nikon and Olympus microscopes
Active axes	X, Y
Travel range	25 mm × 25 mm
Integrated sensor	Linear encoder
Sensor resolution	0.01	µm
Bidirectional repeatability	±0.5	µm
Pitch / yaw	±200	µrad
Velocity	100	mm/s	Max.
Reference switch	Optical, 1 µm repeatability

Mechanical properties	U-760.DNOS	Unit	Tolerance
Load capacity	25	N	Max.

Drive properties	U-760.DNOS
Motor type	PILine® ultrasonic piezo motor, performance class 2

Miscellaneous	U-760.DNOS	Unit	Tolerance
Operating temperature range	20 to 40	°C
Material	Al (black anodized)
Mass of the XY stage	2.5	kg	±5 %

Piezo motor controller	U-760.DNOS
Type	C-867K058 with USB joystick (included in the scope of delivery)
Interface / communication	USB, RS-232, SPI, Ethernet
I/O lines	4 analog / digital inputs 4 digital outputs to mini DIN, 9-pole Digital: TTL Analog: 0 to 5 V
Command set	PI General Command Set (GCS)
User software	PIMikroMove
Software drivers	GCS DLL (with code examples for the most common programming languages such as C++, C#, VB.NET, Python, Delphi), driver for LabVIEW, MATLAB library
Supported functions	Startup macro, macro, data recorder for recording operating data such as motor voltage, velocity, position or position error
Controller dimensions	312 mm × 153.4 mm × 59.3 mm (incl. mounting rails)
