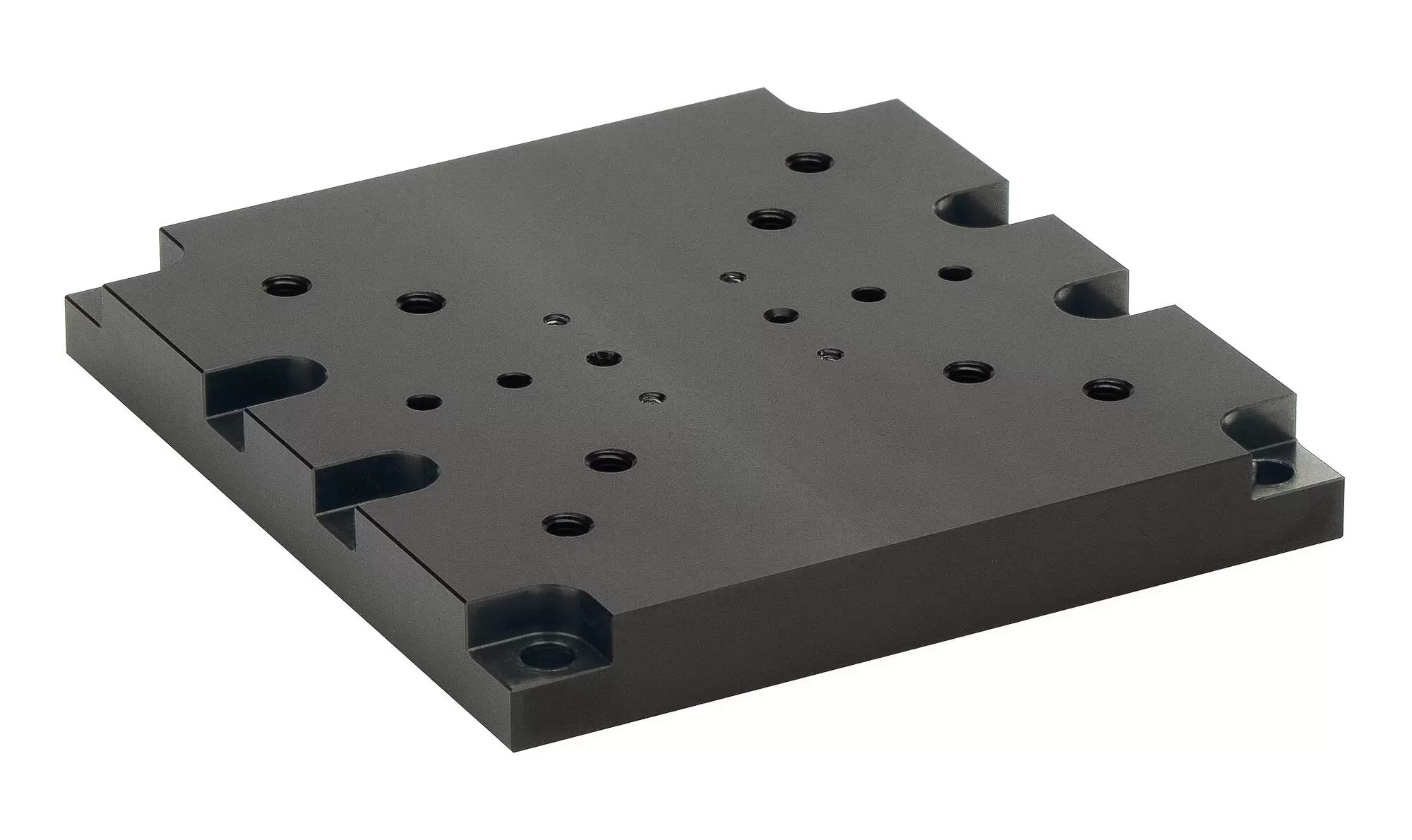

V-855.TTx Motion Platform for V-855 Positioners

Triple M6 Hole Pattern

Hole pattern, 25 mm × 25 mm
Hole pattern, 50 mm × 50 mm
Hole pattern, 75 mm × 75 mm
M3 and M6 threaded holes

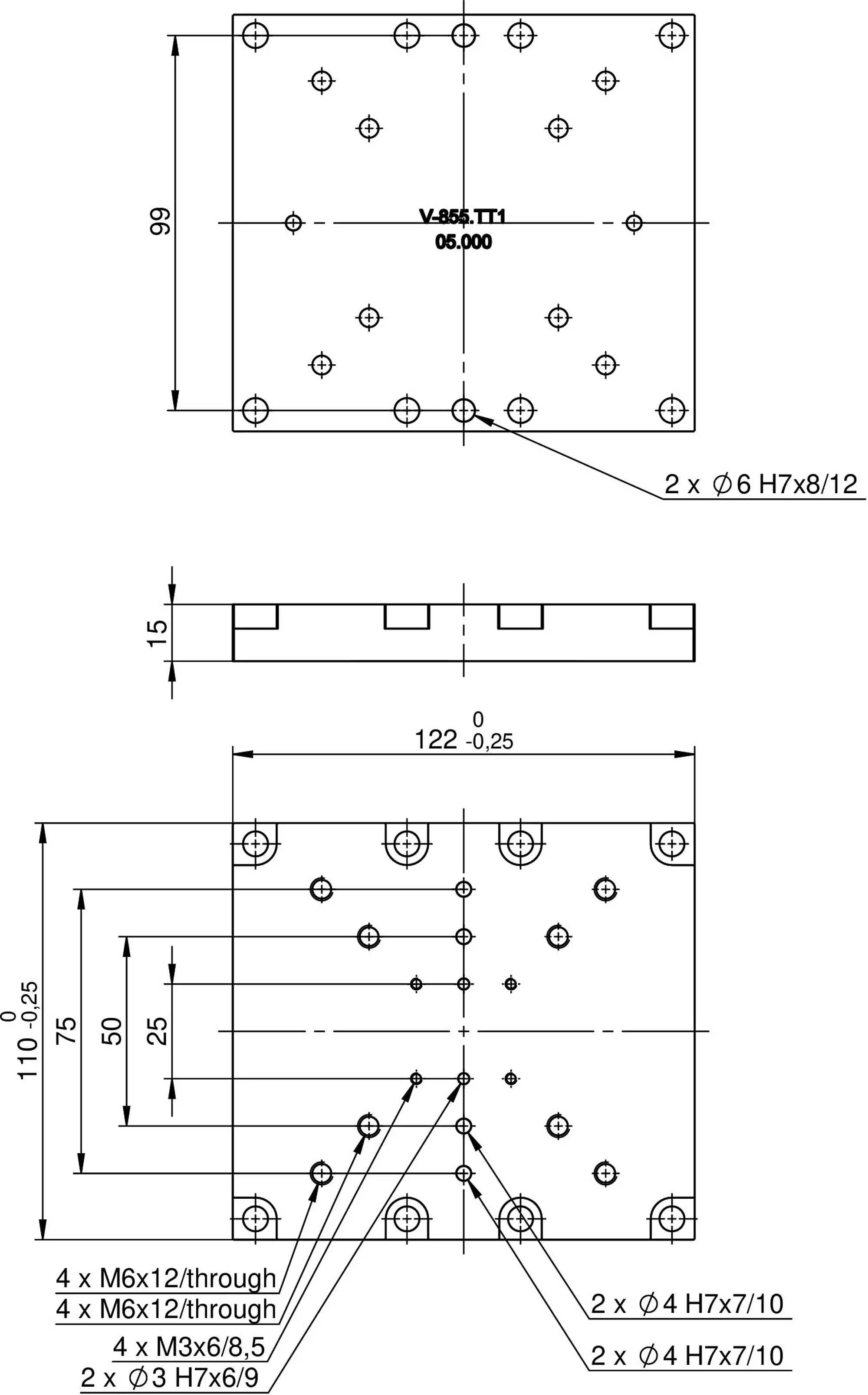

V-855.TT1, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

Product overview

The motion platform is available as optional accessory for the V-855 high-speed linear stages.

It offers versatile assembly options with a triple M6 hole pattern.

	V-855.TT1
Overall mass	520 g
Material	Aluminum, black anodized

3D Models

3-D model V-855.TT1

Version / Date

2021-07-28
zip - 319 KB

Add to List Remove from List

Datasheet

Datasheet V-855.TTx

Version / Date

2021-07-28
pdf - 347 KB

Download

V-855.TT1

Motion platform for V-855 Positioners

Add to Quote List Remove from Quote List
