M-110 • M-111 • M-112 Compact Linear Stage

XY(Z) Combinations with a Variety of Drives and Travel Ranges

Very compact due to folded drive
Stepper motors and closed-loop DC motors
Noncontact reference and limit switches
XY setups can be mounted directly
Large quantities available quickly
Variants suitable for vacuum available

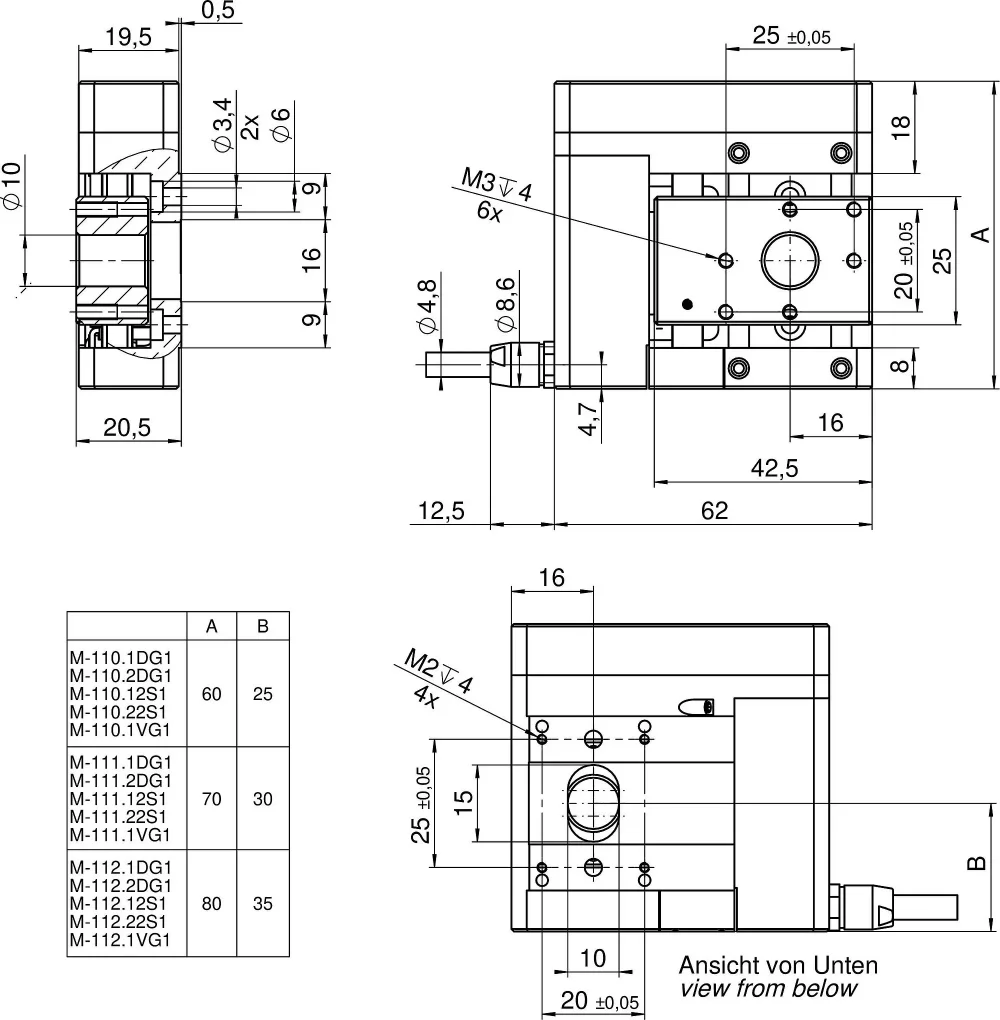

M-11x.xxx1, dimensions in mm

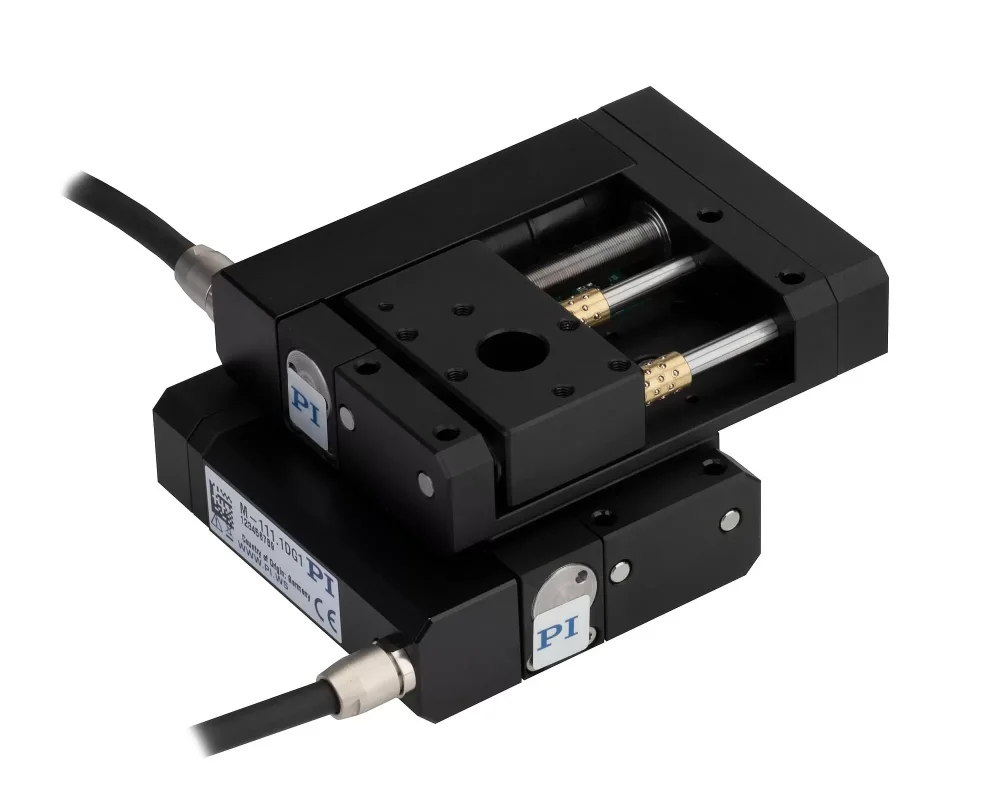

XY setups possible without adapter plate

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

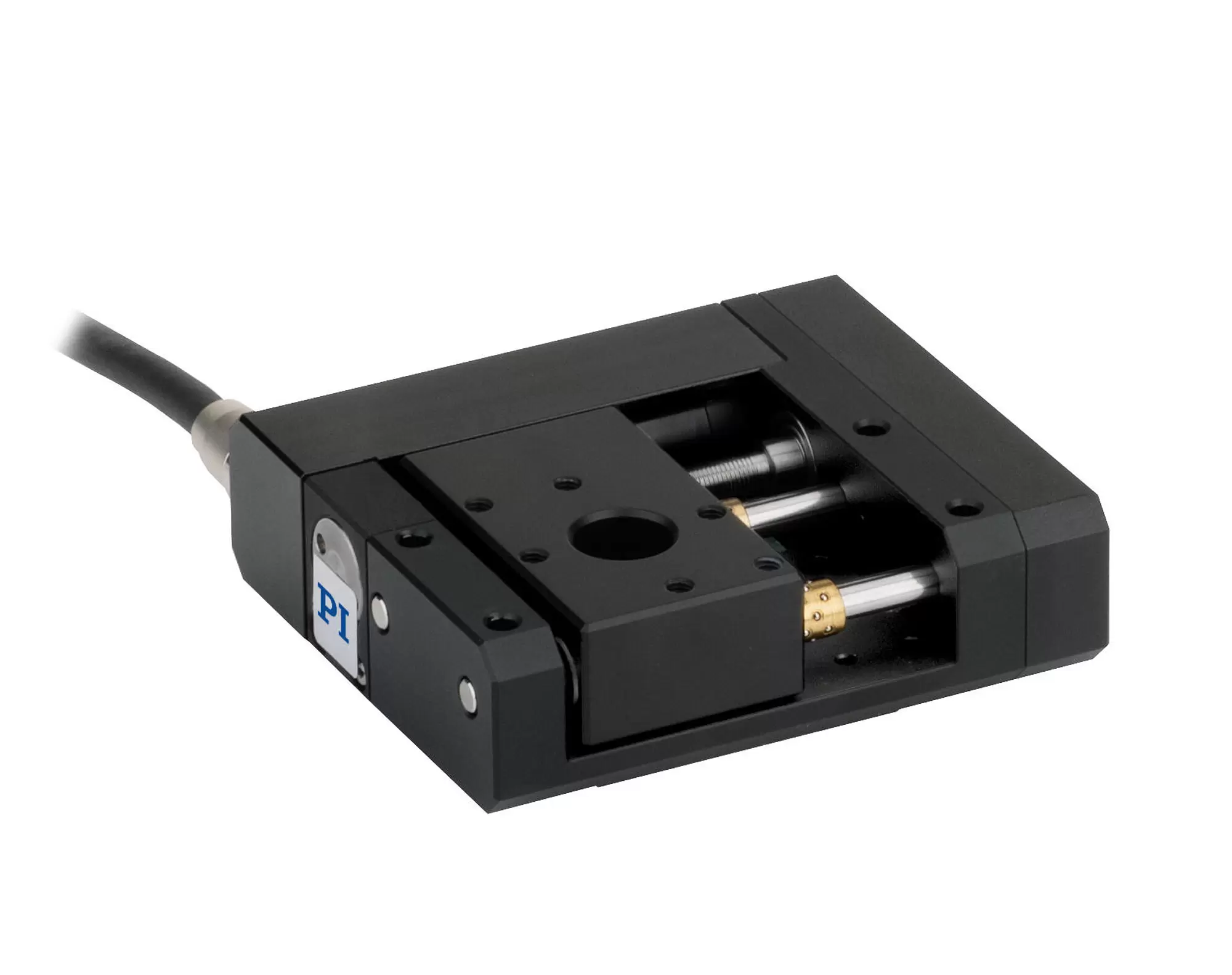

Compact linear stage, versatile in use

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.

Drive

2-phase stepper motor or closed-loop DC gear motor
Backlash-compensated threaded spindle or ball screw

Position measuring

Variants with DC gear motor: Rotary encoder on the motor shaft
Noncontact Hall effect reference and limit switches

Application fields

Precision microassembly. Research. Laser inscription. Automation. Optical alignment.

Motion	M-110.1DG1	M-110.2DG1	M-110.12S1	M-110.22S1	M-111.1DG1	M-111.2DG1	M-111.12S1	M-111.22S1	M-112.1DG1	M-112.2DG1	M-112.12S1	M-112.22S1	Tolerance
Active axes	X	X	X	X	X	X	X	X	X	X	X	X
Travel range in X	5 mm	5 mm	5 mm	5 mm	15 mm	15 mm	15 mm	15 mm	25 mm	25 mm	25 mm	25 mm
Maximum velocity in X, unloaded	1 mm/s	1.5 mm/s	1 mm/s	1 mm/s	1.5 mm/s	2 mm/s	1 mm/s	1 mm/s	1.5 mm/s	2 mm/s	1 mm/s	1 mm/s
Positioning	M-110.1DG1	M-110.2DG1	M-110.12S1	M-110.22S1	M-111.1DG1	M-111.2DG1	M-111.12S1	M-111.22S1	M-112.1DG1	M-112.2DG1	M-112.12S1	M-112.22S1	Tolerance
Unidirectional repeatability in X	0.25 µm	0.15 µm	0.25 µm	0.15 µm	0.25 µm	0.15 µm	0.25 µm	0.15 µm	0.25 µm	0.15 µm	0.25 µm	0.15 µm	typ.
Bidirectional repeatability in X	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	± 2 µm	typ.
Minimum incremental motion in X	0.05 µm	0.2 µm	0.02 µm	0.2 µm	0.05 µm	0.2 µm	0.02 µm	0.2 µm	0.05 µm	0.2 µm	0.02 µm	0.2 µm	typ.
Backlash in X	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	3 µm	typ.
Reference switch	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect
Limit switches	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect	Hall effect
Motor encoder	Incremental rotary encoder	Incremental rotary encoder			Incremental rotary encoder	Incremental rotary encoder			Incremental rotary encoder	Incremental rotary encoder
Resolution, motor encoder	2048 Cts./rev.	2048 Cts./rev.			2048 Cts./rev.	2048 Cts./rev.			2048 Cts./rev.	2048 Cts./rev.
Motor encoder: Sensor signal	A/B quadrature, RS-422	A/B quadrature, RS-422			A/B quadrature, RS-422	A/B quadrature, RS-422			A/B quadrature, RS-422	A/B quadrature, RS-422
Drive Properties	M-110.1DG1	M-110.2DG1	M-110.12S1	M-110.22S1	M-111.1DG1	M-111.2DG1	M-111.12S1	M-111.22S1	M-112.1DG1	M-112.2DG1	M-112.12S1	M-112.22S1	Tolerance
Drive type	DC gear motor	DC gear motor	2-phase stepper motor	2-phase stepper motor	DC gear motor	DC gear motor	2-phase stepper motor	2-phase stepper motor	DC gear motor	DC gear motor	2-phase stepper motor	2-phase stepper motor
Nominal voltage	12 V	12 V			12 V	12 V			12 V	12 V
Nominal current, RMS	0.16 A	0.16 A	0.25 A	0.25 A	0.32 A	0.32 A	0.25 A	0.25 A	0.32 A	0.32 A	0.25 A	0.25 A	typ.
Drive force in negative direction of motion in X	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	typ.
Drive force in positive direction of motion in X	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	typ.
Motor resolution			24 Full steps/rev.	24 Full steps/rev.			24 Full steps/rev.	24 Full steps/rev.			24 Full steps/rev.	24 Full steps/rev.
Mechanical Properties	M-110.1DG1	M-110.2DG1	M-110.12S1	M-110.22S1	M-111.1DG1	M-111.2DG1	M-111.12S1	M-111.22S1	M-112.1DG1	M-112.2DG1	M-112.12S1	M-112.22S1	Tolerance
Guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide	Ball guide
Drive screw type	Fine-threaded spindle	Ball screw	Fine-threaded spindle	Ball screw	Fine-threaded spindle	Ball screw	Fine-threaded spindle	Ball screw	Fine-threaded spindle	Ball screw	Fine-threaded spindle	Ball screw
Drive screw pitch	0.4 mm	0.5 mm	0.4 mm	0.5 mm	0.4 mm	0.5 mm	0.4 mm	0.5 mm	0.4 mm	0.5 mm	0.4 mm	0.5 mm
Gear ratio i	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9	256 : 9
Moved mass in X, unloaded	11 g	12 g	11 g	12 g	11 g	12 g	11 g	12 g	11 g	12 g	11 g	12 g
Permissible push force in Y	15 N	15 N	15 N	15 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	10 N	max.
Permissible push force in Z	30 N	30 N	30 N	30 N	30 N	30 N	30 N	30 N	20 N	20 N	20 N	20 N	max.
Permissible torque in θx	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	max.
Permissible torque in θY	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	max.
Permissible torque in θZ	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	0.15 N·m	max.
Overall mass	250 g	250 g	250 g	250 g	270 g	270 g	270 g	270 g	300 g	300 g	300 g	300 g
Material	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum	Anodized aluminum
Holding force in X, passive			10 N	10 N			10 N	10 N			10 N	10 N
Miscellaneous	M-110.1DG1	M-110.2DG1	M-110.12S1	M-110.22S1	M-111.1DG1	M-111.2DG1	M-111.12S1	M-111.22S1	M-112.1DG1	M-112.2DG1	M-112.12S1	M-112.22S1	Tolerance
Connector	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)
Recommended controllers / drivers	C-863 C-884 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller	C-663 G-901 G-910 ACS modular controller	C-663 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller	C-663 G-901 G-910 ACS modular controller	C-663 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller	C-663 G-901 G-910 ACS modular controller	C-663 G-901 G-910 ACS modular controller
Cable length	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m	0.5 m
Operating temperature range	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C

3D Modeller

M-11x.xxx1 3-D model

Versiyon / Tarih

zip - 5 MB

Listeye Ekle Listeden Çıkar

Animasyonlu 3D Modeller

Animated 3-D Model M-112.xxx1

Versiyon / Tarih

zip - 2 MB

Listeye Ekle Listeden Çıkar

Animasyonlu 3D Modeller

Animated 3-D Model M-110.xxx1

Versiyon / Tarih

zip - 2 MB

Listeye Ekle Listeden Çıkar

Animasyonlu 3D Modeller

Animated 3-D Model M-111.xxx1

Versiyon / Tarih

zip - 2 MB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet M-110 • M-111 • M-112

Versiyon / Tarih

2022-06-13
pdf - 1,024 KB

İndir

Veri Sayfası

Datasheet M-11x.xxx1

Versiyon / Tarih

2020-09-22
pdf - 1 MB

İndir

Dokümantasyon

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Versiyon / Tarih

3.2.0 01/2021
,pdf - 1 MB,

İndir

Dokümantasyon

User Manual M110T0032

M-110.xxx1 / M-111.xxx1 / M-112.xxx1 Microtranslation Stage

Versiyon / Tarih

2023-07-25
,pdf - 1 MB,

Listeye Ekle Listeden Çıkar

Dokümantasyon

PI Mounting Adapters for Micropositioning

Overview of all possible combinations of PI linear, rotary and tilt stages

Versiyon / Tarih

pdf - 760 KB

İndir

Ürün Notu

Product Change Notification M-110.xxx, M-111.xxx, M-112.xxx

Versiyon / Tarih

2020-05-07
pdf - 264 KB

İndir

M-110.1DG1

Compact linear stage; DC gear motor; 5 mm travel range, 30 N load capacity, 1 mm/s maximum velocity; fine-threaded spindle; incremental rotary encoder, 2048 cts./rev. resolution; 0.5 cable length
