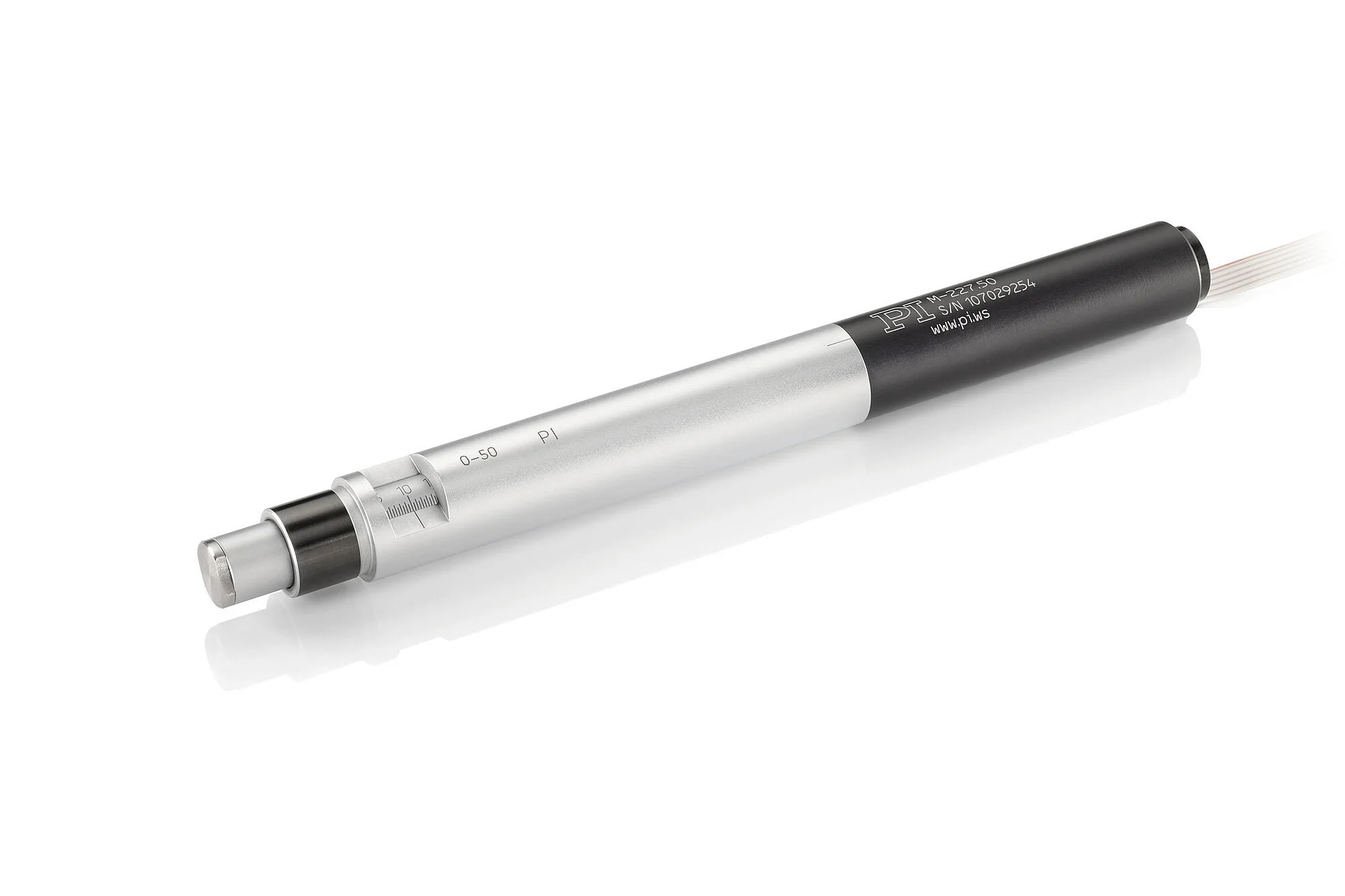

M-227 High-Resolution Linear Actuator with DC Motor

With Optional Piezo Drive

Minimum incremental motion 0.05 µm
Nonrotating tip
Sub-nm resolution with optional piezo drive

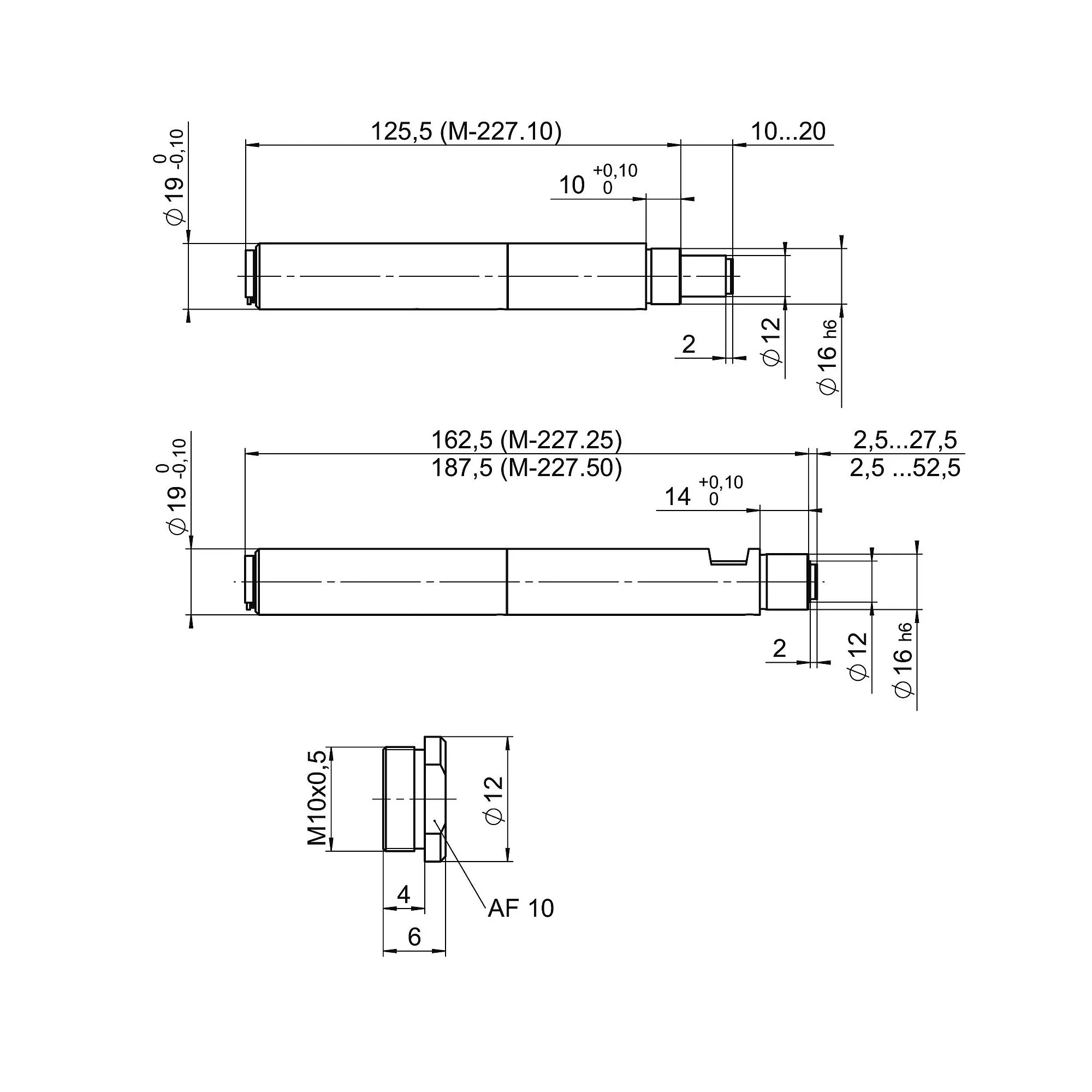

M-227, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Compact precision-class linear drive

High-resolution DC mike with closed-loop gearhead motors and rotary encoder. For installing into mechanical systems with external limit switches.

High-quality components

Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat tip for decoupling forces. With differential encoder driver in the connector for a safe position signal transmission at distances up to 10 m

Application fields

OEM, alignment, set-and-forget

Motion	M-227.10	M-227.25	M-227.50	Tolerance
Active axes	X	X	X
Travel range in X	10 mm	25 mm	50 mm
Maximum velocity in X, unloaded	0.75 mm/s	0.75 mm/s	0.75 mm/s
Positioning	M-227.10	M-227.25	M-227.50	Tolerance
Minimum incremental motion in X	0.05 µm	0.05 µm	0.05 µm	typ.
Unidirectional repeatability in X	± 0.1 µm	± 0.1 µm	± 0.1 µm	typ.
Backlash in X	10 µm	10 µm	10 µm	typ.
Reference switch	Encoder index	Encoder index	Encoder index
Integrated sensor	Incremental rotary encoder	Incremental rotary encoder	Incremental rotary encoder
Sensor resolution	2048 Cts./rev.	2048 Cts./rev.	2048 Cts./rev.
Drive Properties	M-227.10	M-227.25	M-227.50	Tolerance
Drive type	DC gear motor	DC gear motor	DC gear motor
Operating voltage	0 to ±12 V	0 to ±12 V	0 to ±12 V
Drive force in X	40 N	40 N	40 N	typ.
Mechanical Properties	M-227.10	M-227.25	M-227.50	Tolerance
Permissible push force in Y	0.1 N	0.1 N	0.1 N	max.
Drive screw type	Trapezoidal drive screw	Trapezoidal drive screw	Trapezoidal drive screw
Drive screw pitch	0.5 mm	0.5 mm	0.5 mm
Gear ratio i	69,12 : 1	69,12 : 1	69,12 : 1
Overall mass	160 g	220 g	260 g
Material	Aluminum anodized, chrome steel	Aluminum anodized, chrome steel	Aluminum anodized, chrome steel
Miscellaneous	M-227.10	M-227.25	M-227.50	Tolerance
Operating temperature range	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C
Connector	D-sub 15-pin (m)	D-sub 15-pin (m)	D-sub 15-pin (m)
Cable length	0.1 m	0.1 m	0.1 m
Recommended controllers / drivers	C-863.12 C-885 with C-863.20C885 C-884	C-863.12 C-885 with C-863.20C885 C-884	C-863.12 C-885 with C-863.20C885 C-884

3D Modeller

M-227 3-D model

Versiyon / Tarih

zip - 128 KB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet M-227

Versiyon / Tarih

2023-07-12
pdf - 443 KB

İndir

Dokümantasyon

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Versiyon / Tarih

6.0.0 2023-10-10
pdf - 372 KB

İndir

Dokümantasyon

User Manual MP40

M-227 High-Resolution Linear Actuator with DC Motor

Versiyon / Tarih

1.3.0 2020-07-27
pdf - 739 KB

Listeye Ekle Listeden Çıkar

M-227.10

High-resolution linear actuator with DC motor; DC gear motor; 10 mm travel range; 40 N feed force; 0.75 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; 0.1 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar

M-227.25

High-resolution linear actuator with DC motor; DC gear motor; 25 mm travel range; 40 N feed force; 0.75 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; 0.1 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar

M-227.50

High-resolution linear actuator with DC motor; DC gear motor; 50 mm travel range; 40 N feed force; 0.75 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; 0.1 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar
