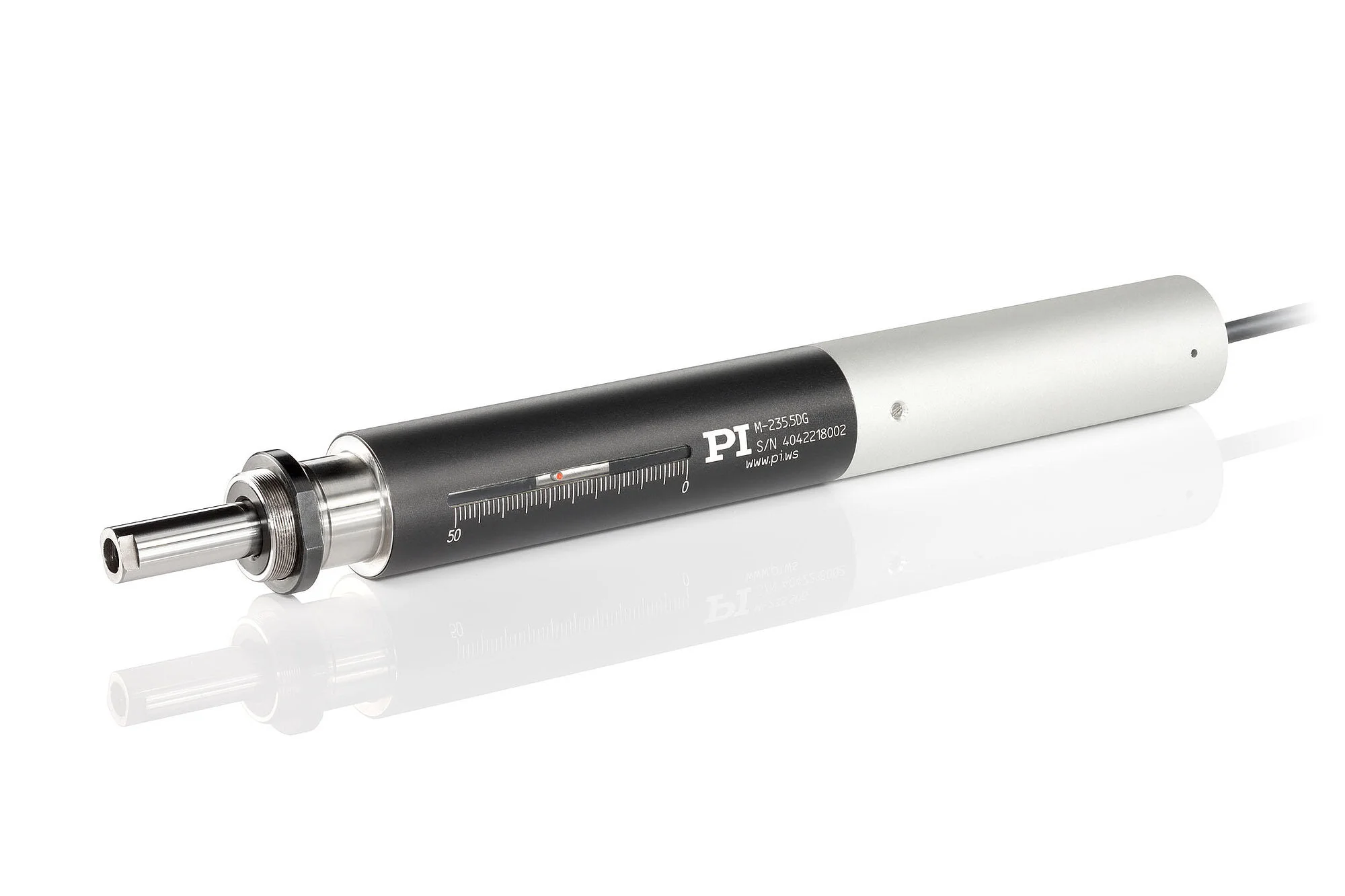

M-235 High-Resolution Linear Actuator with DC Motor

Highly dynamic, high forces up to 120 N

Travel ranges 20 and 50 mm
Minimum incremental motion to 0.1 µm
DC motor allows high velocities
Push / pull force capacity up to 120 N
MTBF >10,000 h

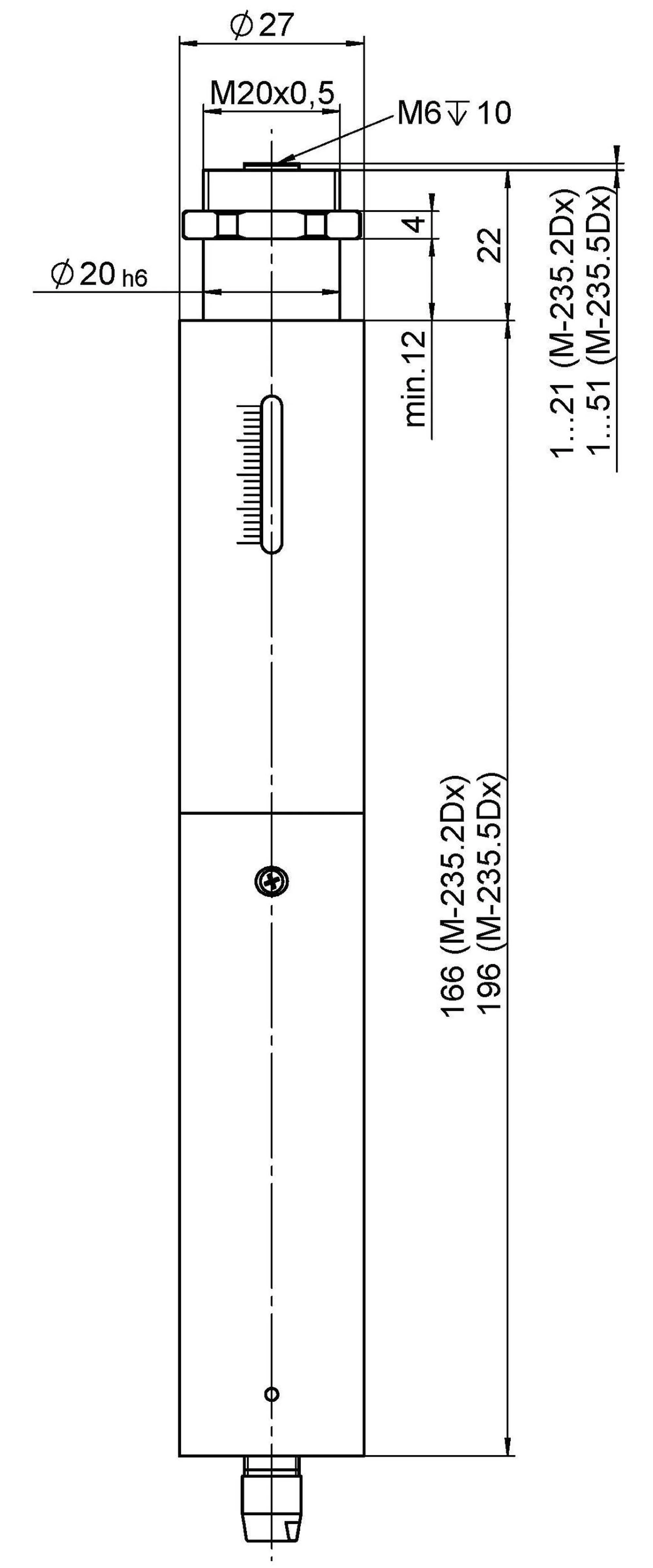

M-235.2DD, M-235.2DG, M-235.5DD, and M-235.5DG, dimensions in mm. Note that a comma is used in the drawing instead of a decimal point.

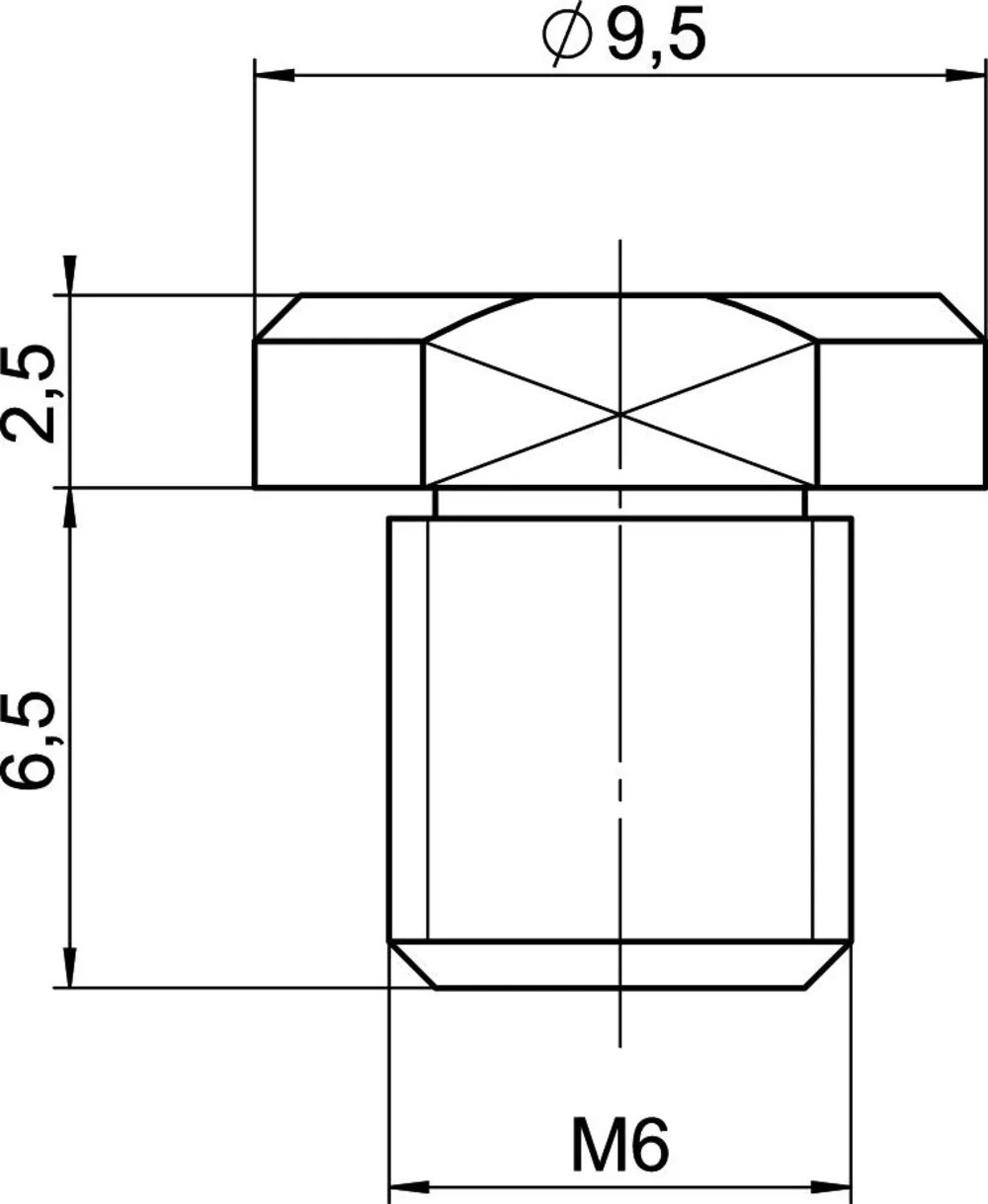

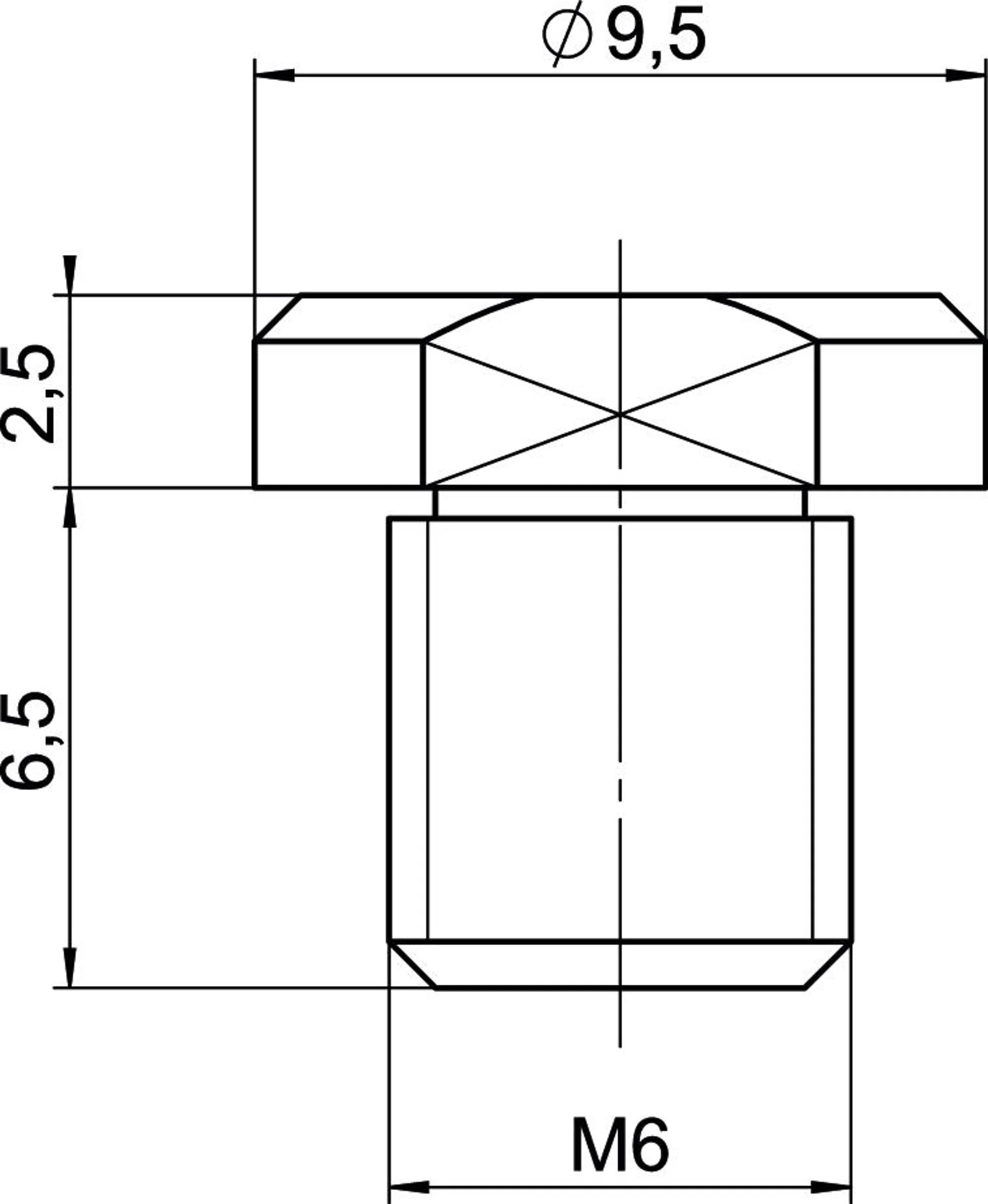

Dimensions of the flat tip M23550107 (included). Note that a comma is used in the drawing instead of a decimal point.

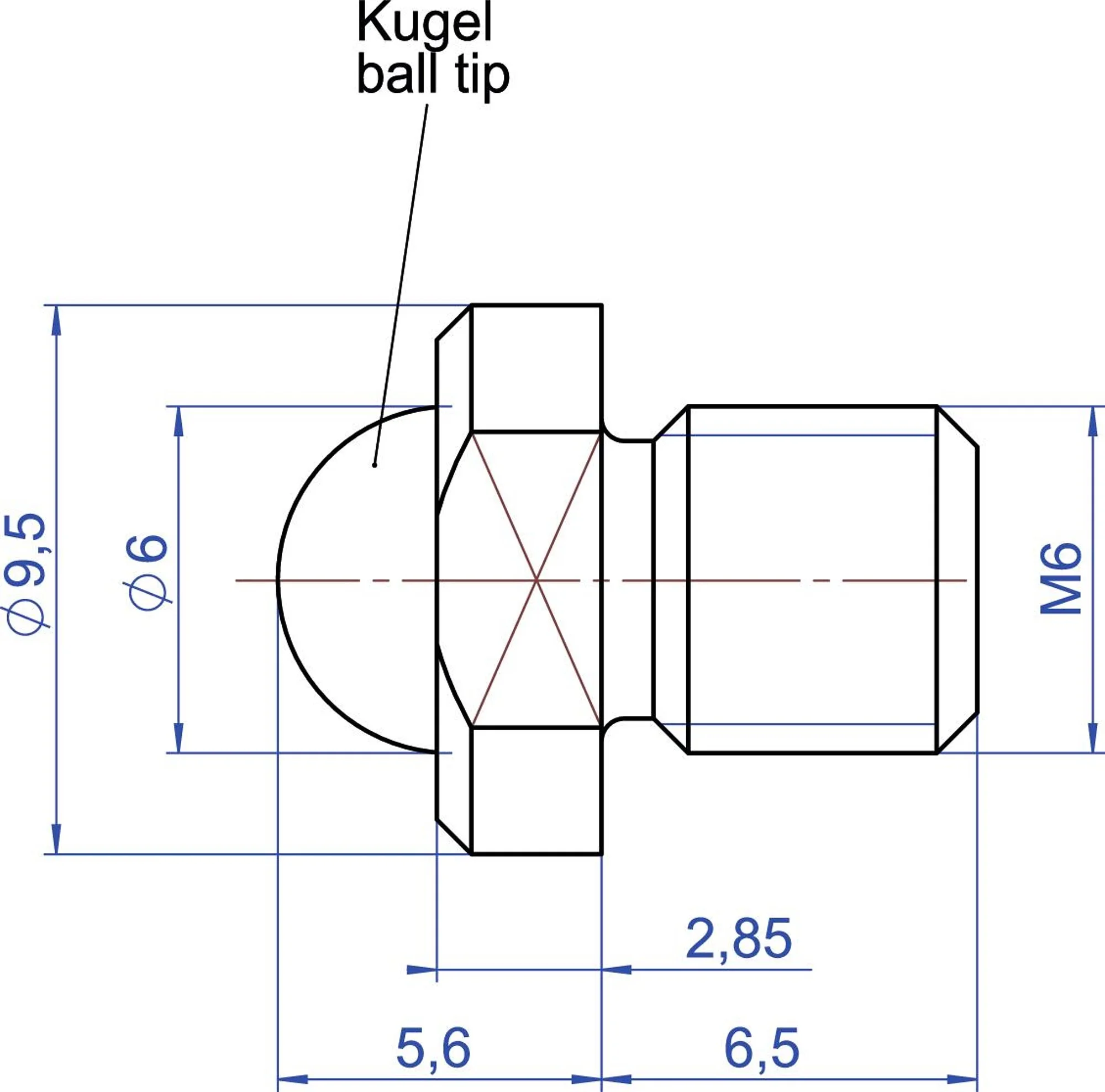

Dimensions of the spherical tip M23550108 (included). Note that a comma is used in the drawing instead of a decimal point.

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Reference-class linear drive

Combines high precision, high forces, and high dynamics.

High-quality components

Ball screw for high velocities and a high number of cycles. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.

Motor variants

Highly dynamic, closed-loop DC motors reach high velocities
Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm

Application fields

Precision adjustment. External drive element for guided systems.

Motion	M-235.2DD	M-235.5DD	M-235.2DG	M-235.5DG	Tolerance
Active axes	X	X	X	X
Travel range in X	20 mm	50 mm	20 mm	50 mm
Maximum velocity in X, unloaded	30 mm/s	30 mm/s	2 mm/s	2 mm/s
Positioning	M-235.2DD	M-235.5DD	M-235.2DG	M-235.5DG	Tolerance
Minimum incremental motion in X	1.5 µm	1.5 µm	0.1 µm	0.1 µm	typ.
Unidirectional repeatability in X	± 0.5 µm	± 0.5 µm	± 0.1 µm	± 0.1 µm	typ.
Backlash in X	2 µm	2 µm	2 µm	2 µm	typ.
Reference switch	Hall effect	Hall effect	Hall effect	Hall effect
Limit switches	Hall effect	Hall effect	Hall effect	Hall effect
Integrated sensor	Incremental rotary encoder	Incremental rotary encoder	Incremental rotary encoder	Incremental rotary encoder
Sensor resolution	2048 Cts./rev.	2048 Cts./rev.	2048 Cts./rev.	2048 Cts./rev.
Drive Properties	M-235.2DD	M-235.5DD	M-235.2DG	M-235.5DG	Tolerance
Drive type	DC motor	DC motor	DC gear motor	DC gear motor
Operating voltage	0 to ±12 V	0 to ±12 V	0 to ±12 V	0 to ±12 V
Drive force in X	50 N	50 N	120 N	120 N	typ.
Mechanical Properties	M-235.2DD	M-235.5DD	M-235.2DG	M-235.5DG	Tolerance
Permissible push force in Y	8 N	8 N	8 N	8 N	max.
Drive screw type	Ball screw	Ball screw	Ball screw	Ball screw
Drive screw pitch	1 mm	1 mm	1 mm	1 mm
Overall mass	500 g	650 g	550 g	700 g
Material	Aluminum, anodized, chrome steel	Aluminum anodized, chrome steel	Aluminum anodized, chrome steel	Aluminum, anodized, chrome steel
Gear ratio i			29,6 : 1	29,6 : 1
Miscellaneous	M-235.2DD	M-235.5DD	M-235.2DG	M-235.5DG	Tolerance
Operating temperature range	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C
Connector	D-sub 15-pin (m)	D-sub 15-pin (m)	D-sub 15-pin (m)	D-sub 15-pin (m)
Cable length	0.5 m	0.5 m	0.5 m	0.5 m
Recommended controllers / drivers	C-863.12 C-885 with C-863.20C885 C-884	C-863.12 C-885 with C-863.20C885 C-884	C-863.12 C-885 with C-863.20C885 C-884	C-863.12 C-885 with C-863.20C885 C-884

3D Modeller

M-235 3-D model

Versiyon / Tarih

zip - 1 MB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet M-235

Versiyon / Tarih

2023-07-12
pdf - 598 KB

İndir

Dokümantasyon

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Versiyon / Tarih

6.0.0 2023-10-10
pdf - 372 KB

İndir

Dokümantasyon

User Manual MP106

M-235 Linear Actuators

Versiyon / Tarih

1.2 2020-08-31
pdf - 691 KB

Listeye Ekle Listeden Çıkar

M-235.2DD

High-resolution linear actuator with DC motor; DC motor; 20 mm travel range; 50 N feed force; 30 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar

M-235.5DD

High-resolution linear actuator with DC motor; DC motor; 50 mm travel range; 50 N feed force; 30 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar

M-235.2DG

High-resolution linear actuator with DC motor; DC gear motor; 20 mm travel range; 120 N feed force; 2 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar

M-235.5DG

High-resolution linear actuator with DC motor; DC gear motor; 50 mm travel range; 120 N feed force; 2 mm/s maximum velocity; ball screw; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length

Teklif Listesine Ekle Teklif Listesinden Çıkar
