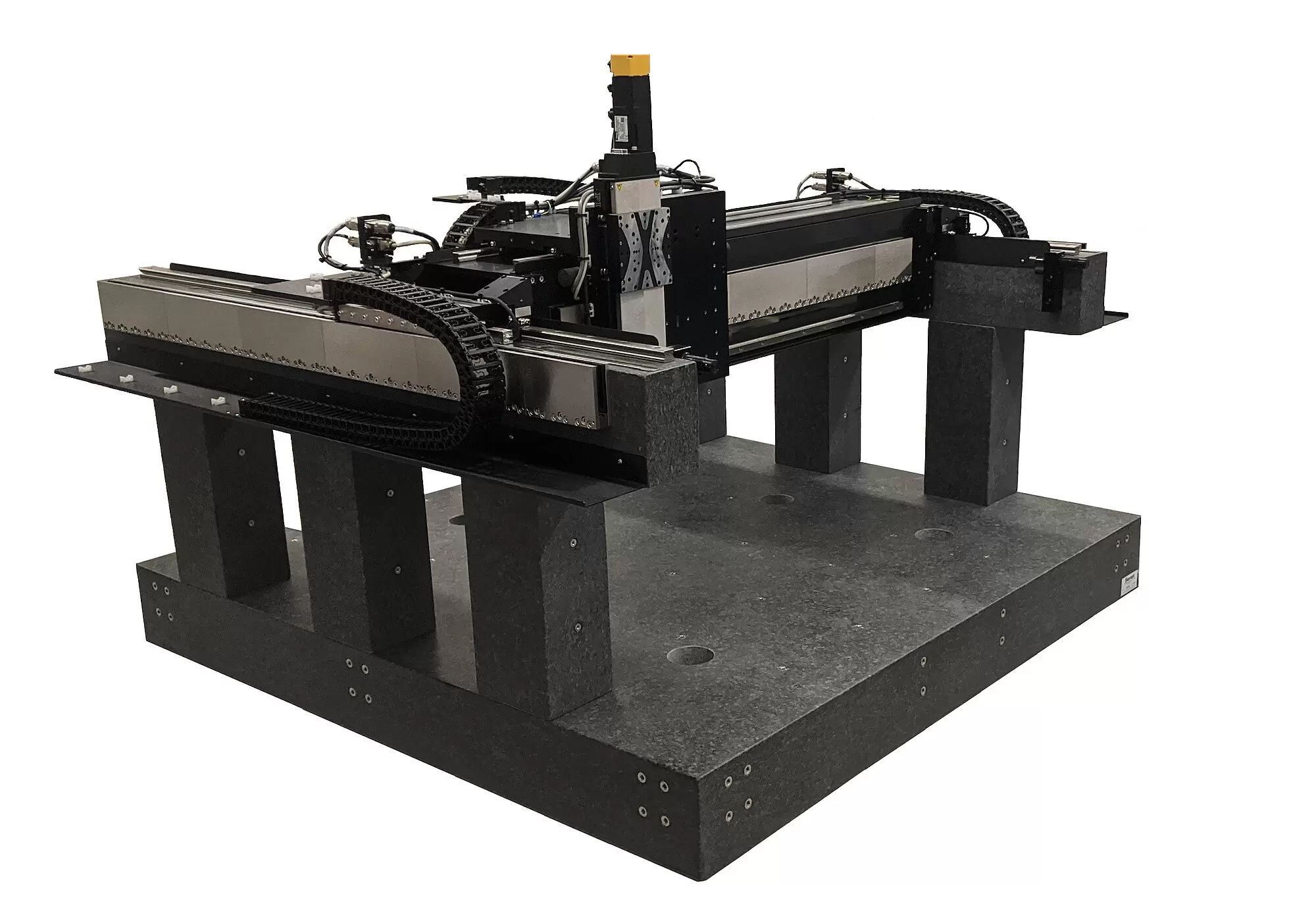

A-352 MGS Large Format Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.

XY gantry for overhead motion. Travel ranges to 1 m × 2 m
Precision recirculating ball bearing guides
Absolute encoder
High-performance ironless linear motors
Various travel ranges. Options and customized adaptations
Flexible modular platform

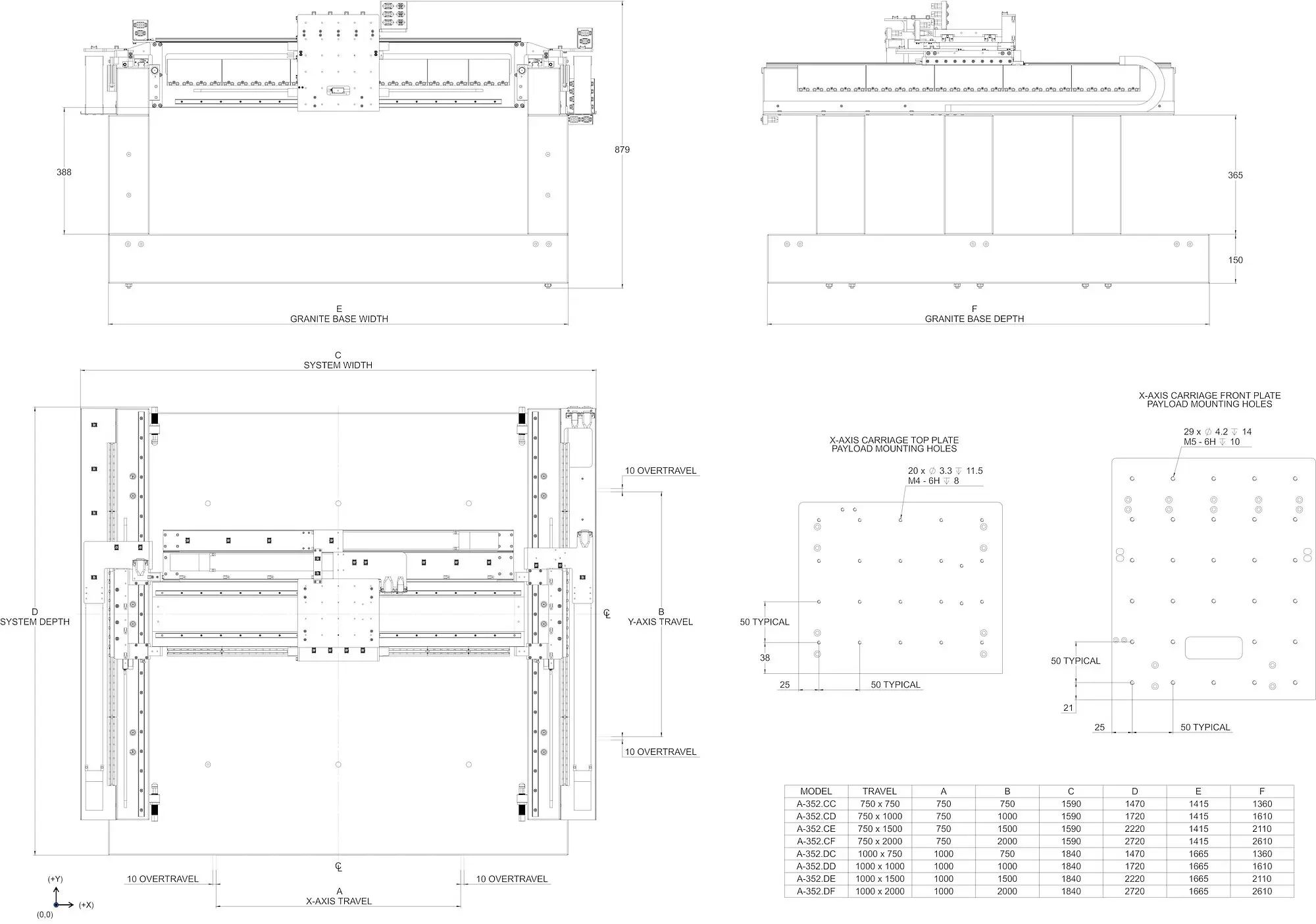

A-352 gantry system, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

Overview

The MGS gantry system has been designed to maximize throughput for applications requiring overhead motion. This stage is ideal for 3D printing, assembly, pick-and-place, alignment, inspection, and industrial automation applications.

The MGS uses preloaded linear mechanical bearings which are designed to provide optimized stiffness and precision. Optional stainless steel guide rails can be delivered.

The gantry axis incorporates dual linear motors and dual linear encoders. Ironless linear motors provide smooth motion and no cogging or attractive forces. The linear motor and linear encoders are noncontact devices, so there is no backlash, wear, or maintenance concerns.

The A-352 is coupled with industry-leading controllers and drive modules from ACS that offer superior servo performance, advanced control algorithms to improve dynamic performance and error compensation, and a wide suite of software development tools.

Application fields

Scanning, Digital printing, Electronics assembly and inspection, AOI (Automatic Optical Inspection), Automation.

Options and customized adaptations

Base made of granite
Customizable work height
Support stands with and without vibration isolation
Additional drag chains
Increased performance motors
Liquid cooling of the linear motors

Motion	Unit	Bridge axis	Gantry axis
Travel range	mm	750, 1000	750, 1000, 1500, 2000
Guide		Recirculating ball bearing guide (lubrication and surface finish can be customized)
Drive		1 × Ironless 3-phase linear motor	2 × Ironless 3-phase linear motor
Measuring system		Absolute linear encoder, 1 nm sensor resolution, BiSS-C, steel measuring scale	2 × Absolute linear encoder, 1 nm sensor resolution, BiSS-C, steel measuring scale
Max. load capacity		30 kg
Positioning accuracy, calibrated ⁽¹⁾	µm	±2
Bidirectional repeatability	µm	±1
XY orthogonality	µrad	25
Max. velocity, unloaded ⁽²⁾	m/s	2	1
Moved mass	kg	4.5	Depending on the travel range of the bridge axis: 750 mm: 65 kg 1000 mm: 80 kg

(1) Accuracy values assume short time duration and do not consider the long-term effects of thermal drift on the stage.

(2) Depends on the motor selected, controller performance, duty cycle, load, and other application-specific parameters.

Drive properties	Unit	Per motor winding
Nominal voltage	V DC	70
Peak voltage	V DC	300
Force constant, RMS	N/A	27.5
Nominal force	N	210
Peak force	N	720
Nominal current, RMS	A	7.6
Peak current, RMS	A	26.2
Back EMF, phase-phase	V·s/m	22.5
Resistance, phase-phase	Ω	51.7
Inductance, phase-phase	mH	1.4

Miscellaneous
Materials	Hardcoat aluminum Guide rails made of steel, cleanroom grease (guide rails made of stainless steel on request) Mounting hardware made of stainless steel

3D Models

3-D model A-352

Version / Date

zip - 7 MB

Add to List Remove from List

Datasheet

Datasheet A-352

Version / Date

2021-05-19
pdf - 596 KB

Download

A-352 MGS basic configuration

Mechanical XY gantry system, recirculating ball bearing guides, 3-phase linear motors, absolute linear encoders, travel range to 1000 mm × 2000 mm (please specify in the request)
