X-417 Integrated Multi-Axis System

XY(Z) Positioning System with Controller • Quickly Available

XY system made of two V-417 positioners, travel ranges from 204 to 407 mm
XYZ system with L-412 positioner as Z axis, 102 mm travel range
Suitable G-901 ACS controller with ACS driver module
Optional with granite base plate
Delivery includes extensive test reports
Extensive accessories, software support available

X-417.244

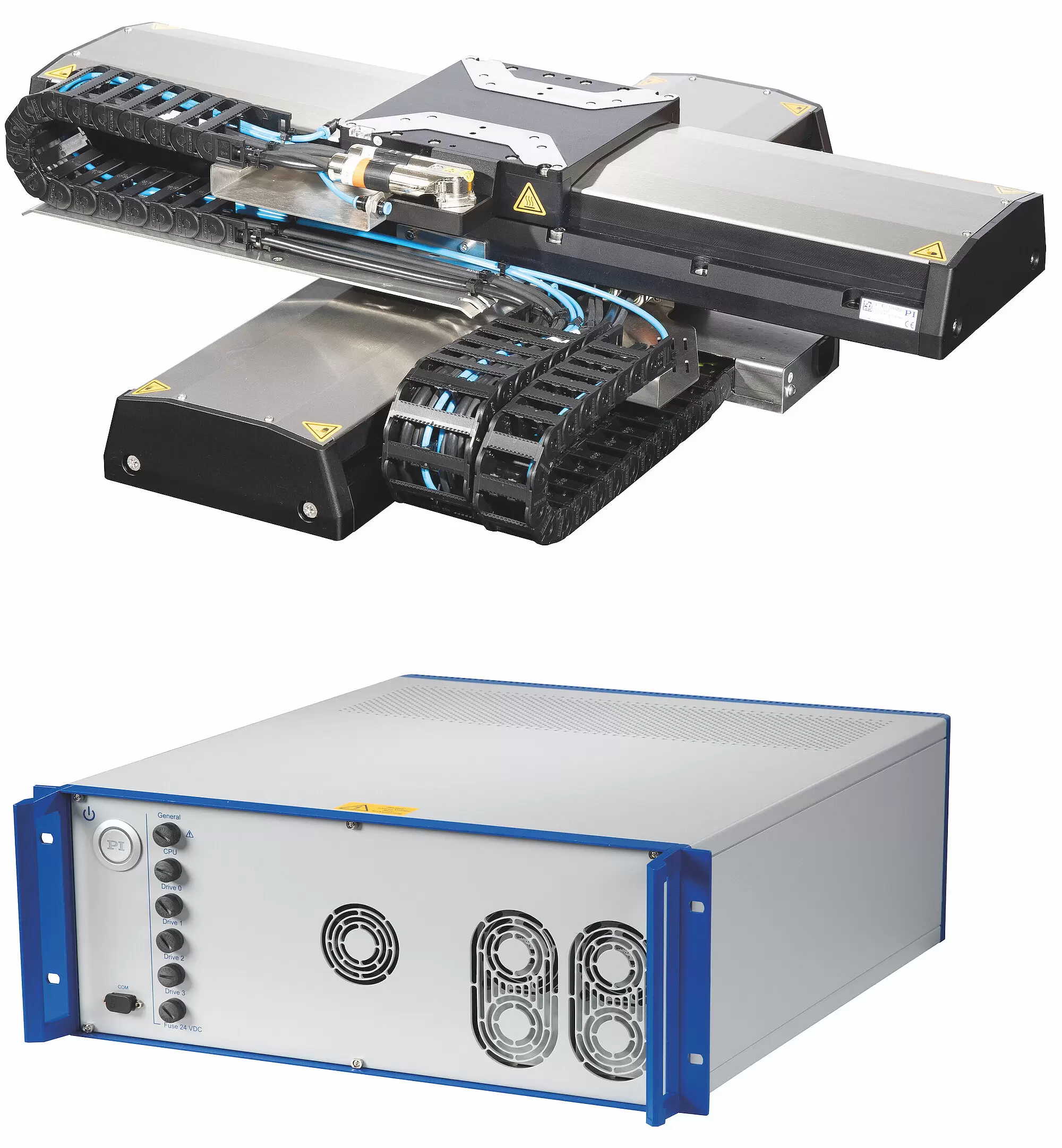

X-417.0xx: XY system with G-901 2-axis controller

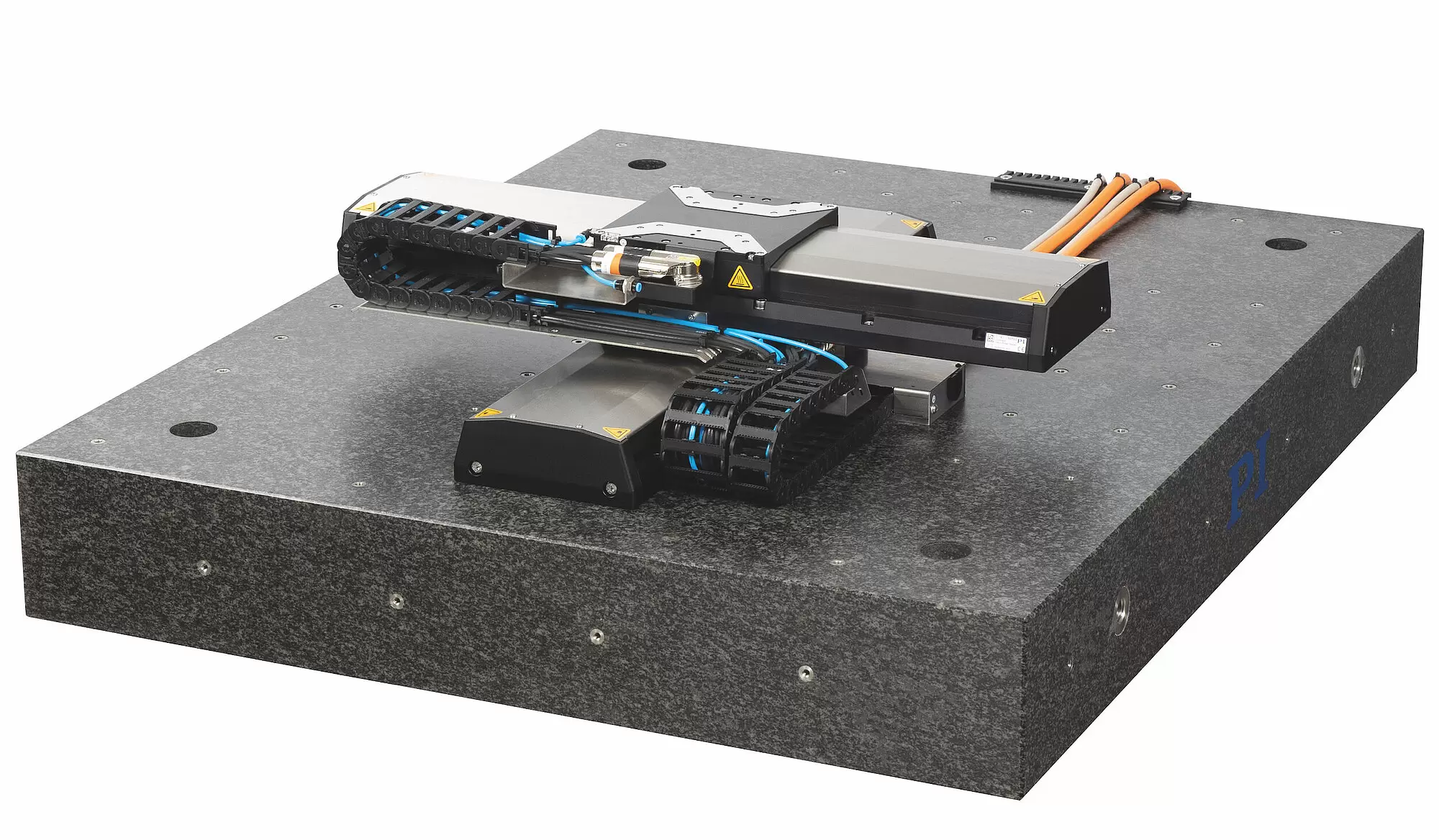

X-417.1xx: XY system on granite plate (image without controller)

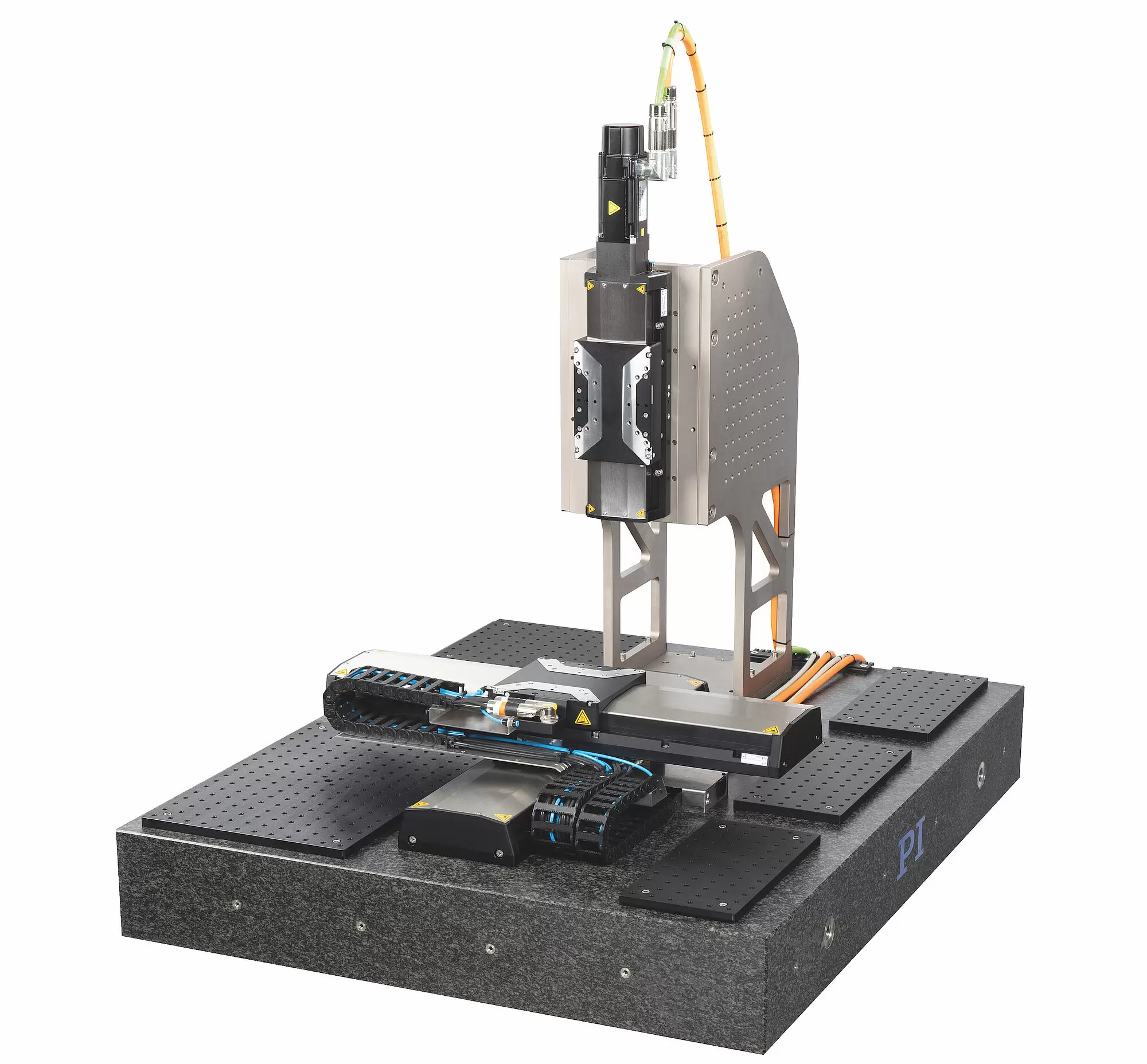

X-417.2xx with accessories: XYZ system on granite plate (image without controller); X-417.Z02 breadboard set

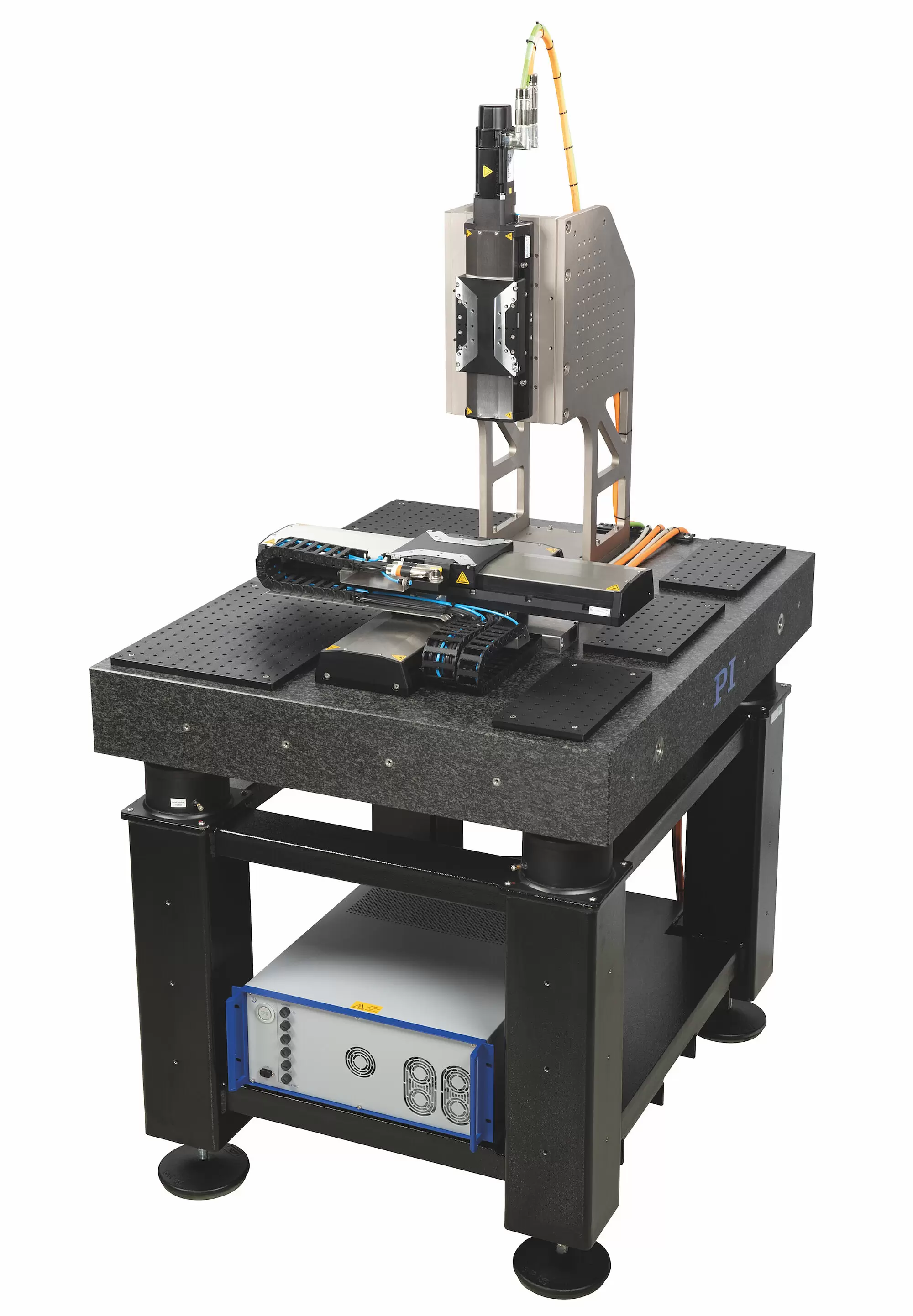

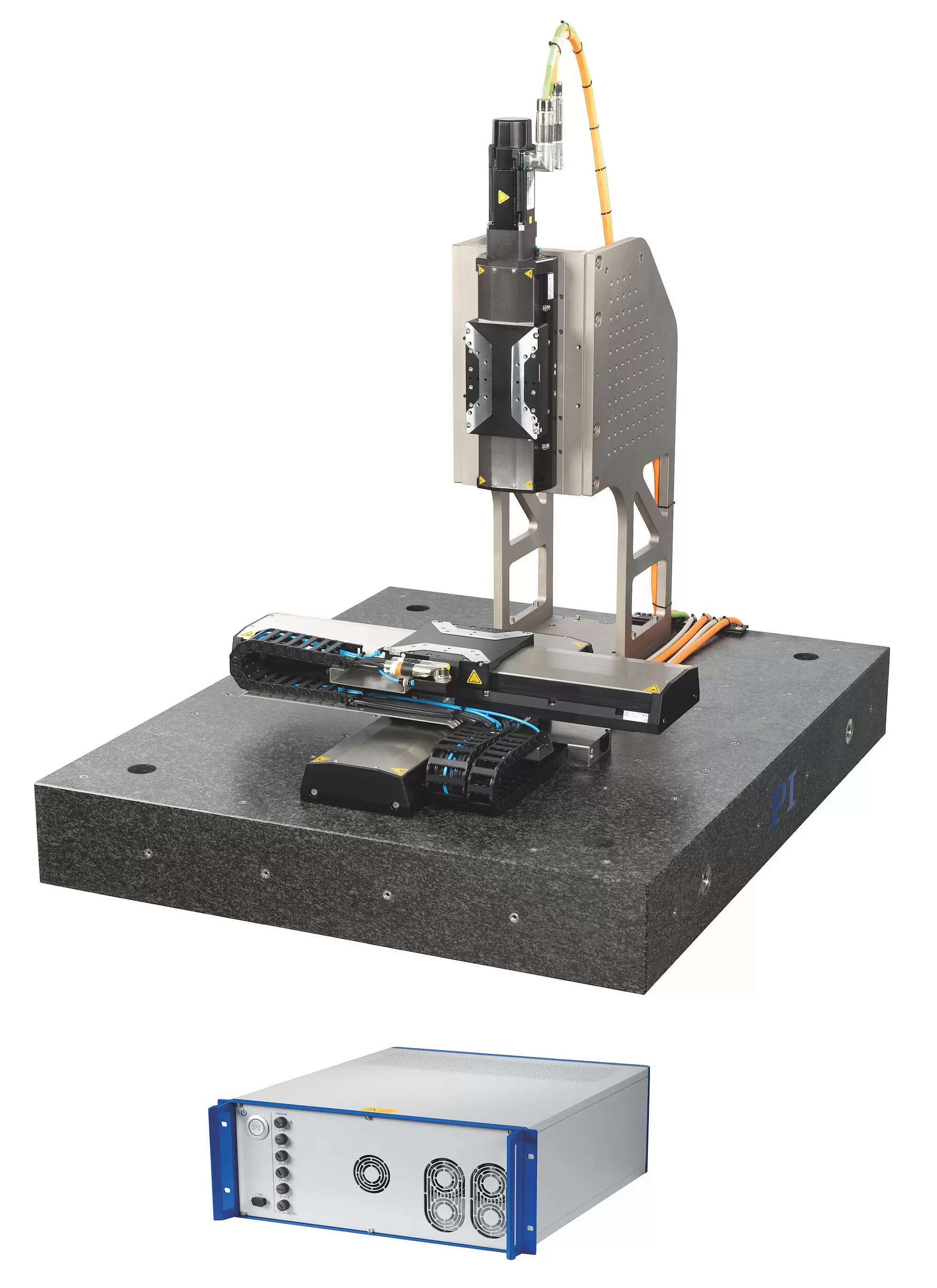

X-417.2xx with accessories: XYZ system on granite plate, G-901 3-axis controller; X-417.Z02 breadboard set, X-417.Z01 base frame

Product Description Description Specifications Downloads Quote/Order

Integrated multi-axis system - IMAS

The X-417 multi-axis system is an integrated solution for industrial applications with high demands on dynamics and precision. XY or XYZ systems with suitable ACS high-performance controller from PI are available. The base system is an XY system made of two V-417 high-load linear stages with linear motor and absolute-measuring linear encoder. Combinations of several travel range variants are available: From 204 to 407 mm. The XY systems are also available with a granite plate. With the XYZ systems, an L-412 high-load linear stage with 102 mm travel range, synchronous servo motor, and holding brake is used as Z axis. The XYZ systems are also available with a granite plate as base; for these systems, the adapter bracket for fastening the Z axis to the granite base is included in the scope of the delivery.

Options and accessories

Base frame
Breadboard set for granite plate
Adapter bracket
Additional cable set for XYZ system: Cable length for X / Y axes 2 m, for Z axis 3 m
Software support, e.g. for SPS integration

Cable management

A suitable cable set is included in the scope of delivery of all systems. The cable set includes a 5 m long drive cable per axis. If shorter cables are required, e.g. when mounting the controller in the base frame (accessory), a shorter cable set of 2 m length is available as accessory.

Application fields

Laser machining: Laser ablation. Laser welding. Ultrashort pulse laser machining. Galvo integration. Laser micromachining. Ceramics and diamond cutting. Laser drilling. Test & inspection. Electronics production.

General	X-417.0xx	X-417.1xx	X-417.2xx	X-417.3xx	Unit
Active axes	2	2	3	3
Controller	G-901.R519	G-901.R519	G-901.R5197	G-901.R5197
Granite base	–	1100 mm × 900 mm × 150 mm	1100 mm × 900 mm × 150 mm	–
Cable length	5	5	5	5	m
Max. workpiece size on XY system	–	–	300 mm × 300 mm × 100 mm	300 mm × 300 mm × 100 mm
Operating temperature range	5 to 40	5 to 40	5 to 40	5 to 40	°C
Humidity	Max. 80% rel., not condensing	Max. 80% rel., not condensing	Max. 80% rel., not condensing	Max. 80% rel., not condensing

X axis: Lower positioner, Y axis: Upper positioner

Motion	X-417.x22	X-417.x32	X-417.x33	X-417.x42	X-417.x43	X-417.x44	Unit
Travel range (XY)	204 × 204	305 × 204	305 × 305	407 × 204	407 × 305	407 × 407	mm
1-D positioning accuracy (X / Y)⁽¹⁾	±1.5 / ±1.5	±1.5 / ±1.5	±1.5 / ±1.5	±1.5 / ±1.5	±1.5 / ±1.5	±1.5 / ±1.5	µm
XY orthogonality	30	30	25	25	20	20	µrad
Max. velocity (X / Y)⁽²⁾	1.5 / 2.0	1.5 / 2.0	1.5 / 2.0	1.5 / 2.0	1.5 / 2.0	1.5 / 2.0	m/s

Encoder options	X-417.xxx	Unit
Integrated sensor	Absolute-measuring linear encoder
Sensor signal	EnDat 2.2
Design resolution	0.001	µm
Minimum incremental motion	10	nm
Limit switch	–

Mechanical properties	X-417.x22	X-417.x32	X-417.x33	X-417.x42	X-417.x43	X-417.x44	Unit
Max. payload	15	15	15	15	15	15	kg
Mass (XY system)⁽³⁾	22	24	26	26	28	30	kg⁽⁴⁾
Mass (XYZ system, incl. granite base and adapter bracket)⁽³⁾	481	483	484	484	486	488	kg⁽⁴⁾

Z axis: L-412.059054B	in X-417.2xx	Unit
Travel range	102	mm
Positioning accuracy, uncalibrated (max.)	±6	µm
Minimum incremental motion	2	µm
Bidirectional repeatability (max.)	±3	µm
Velocity, unloaded (max.)	300	mm/s
Max. payload	15	kg
Holding brake⁽⁵⁾	Electromagnetic safety brake

Granite base	in X-417.1xx and X-417.2xx	Unit
Flatness	5	µm
Mass	430	kg⁽⁴⁾

(1) Based on a measuring height of approx. 30 mm above the platform. Recommended ambient conditions for 1-D positioning accuracy: 21 °C ± 1 °C at 50 to 60 % relative humidity

(2) Values depend on application-specific parameters. For detailed information, contact PI.

(3) Without cable management

(4) ± 5 %

(5) Safety coefficients for the holding brake are available on request

3D Models

3-D models X-417.0xx

Version / Date

2021-04-06
zip - 33 MB

Add to List Remove from List

3D Models

3-D models X-417.1xx

Version / Date

2021-04-06
zip - 39 MB

Add to List Remove from List

3D Models

3-D models X-417.2xx

Version / Date

2021-06-04
zip - 50 MB

Add to List Remove from List

Datasheet

Datasheet X-417

Version / Date

2021-08-03
pdf - 291 KB

Download

Documentation

User Manual X417UM0002

Base frame for X-417 series systems (iMAS) with granite base

Version / Date

2021-07-07
pdf - 833 KB

Add to List Remove from List

Documentation

User Manual X417UM0004

X-417.Z03 Z-bracket for X-417 series systems (iMAS) with granite base

Version / Date

2021-03-25
pdf - 968 KB

Add to List Remove from List

Documentation

User Manual X417UM0003

X-417.Z02 Breadboard set for X-417 series systems (iMAS) with granite base

Version / Date

2021-02-09
pdf - 2 MB

Add to List Remove from List

Documentation

User Manual X417UM0001

X-417 Series Integrated Multi Axis System (iMAS)

Version / Date

2021-06-21
pdf - 6 MB

Add to List Remove from List

Brochures

X-417 Scalable Integrated Multi-Axis System

Fast Configuration, Delivery, and Startup to Accelerate the Implementation of Precision Automation Processes

Version / Date

BRO75E 2020-11
pdf - 1 MB

Download

X-417.022

Integrated multi-axis system of XY system with 204 mm × 204 mm travel range and G-901 2-axis controller, including cable set (5 m)
