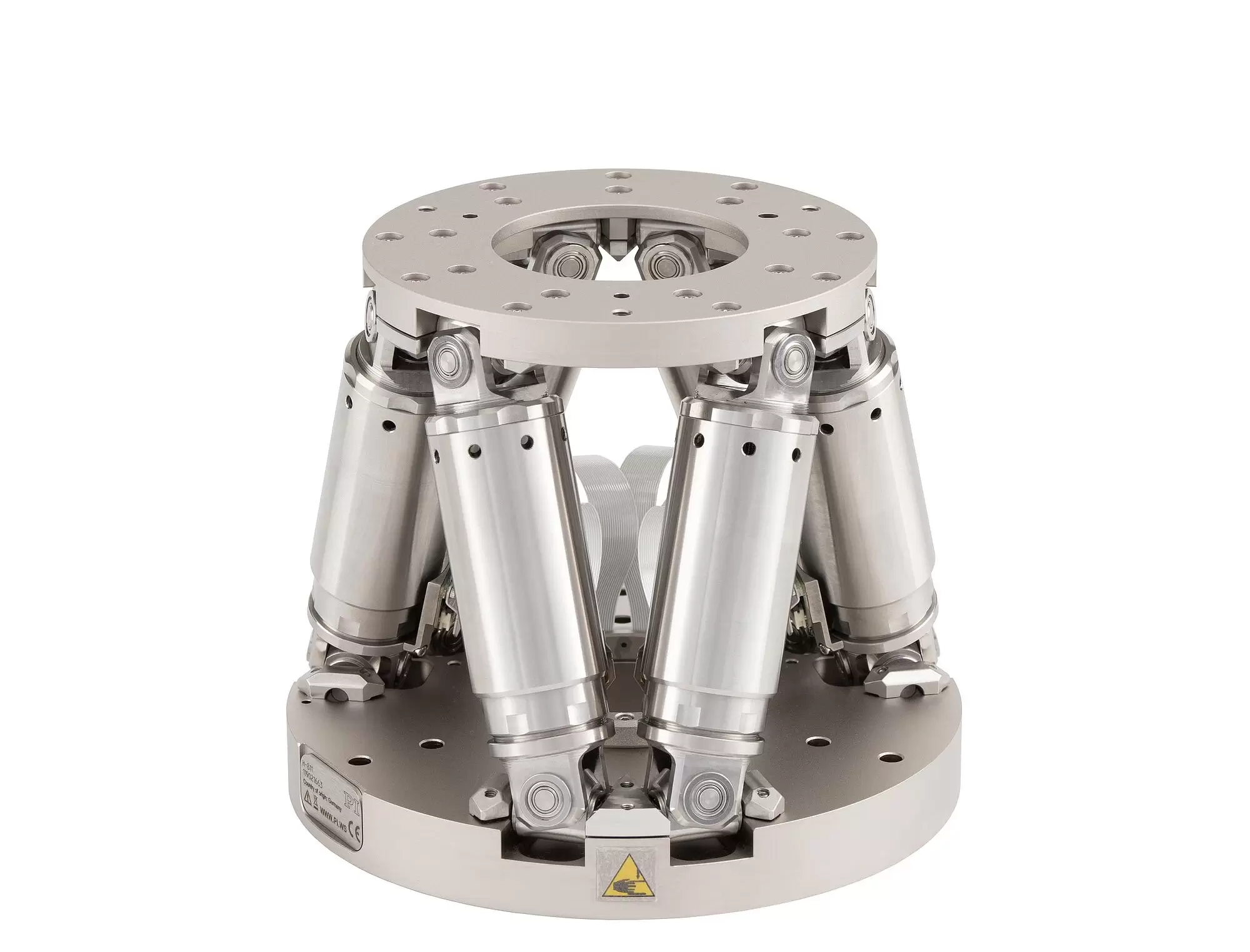

H-811.S2 6-Axis Motion Hexapod

Fast and Compact for High Dynamics Applications

CIPA certified
Travel ranges to ±17 mm / ±21°
Velocity to 10 mm/s
Dynamics to 30 Hz over 0.1° travel range
Developed for image stabilization inspection systems

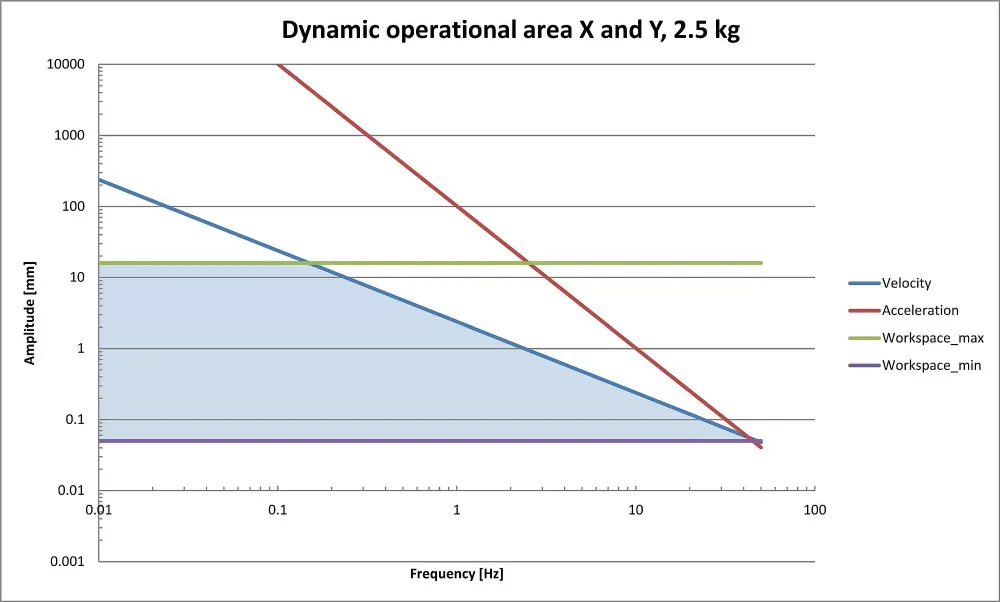

Dynamic working range of the H-811.S2, X and Y, 2.5 kg

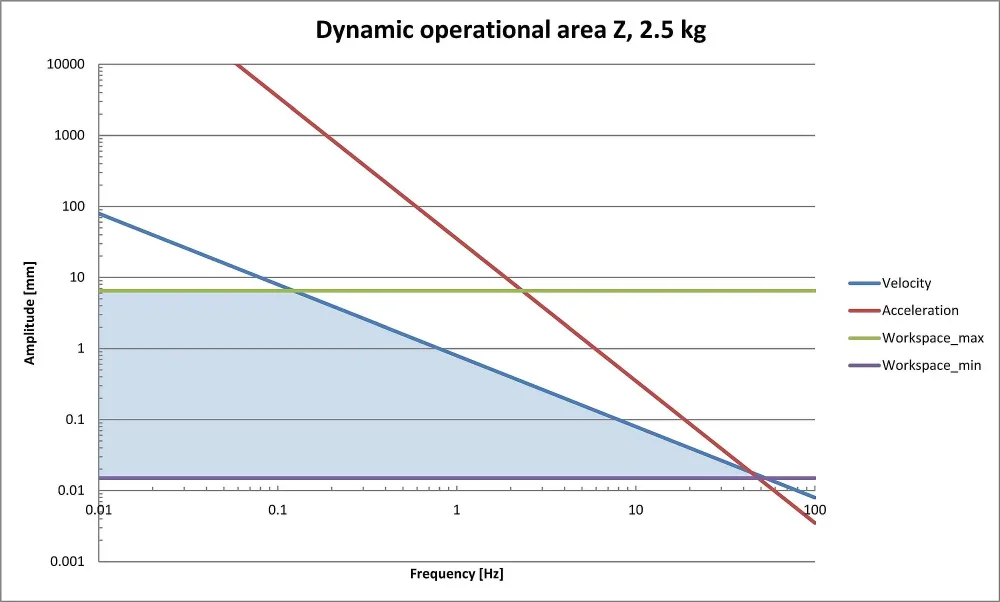

Dynamic working range of the H-811.S2, Z, 2.5 kg

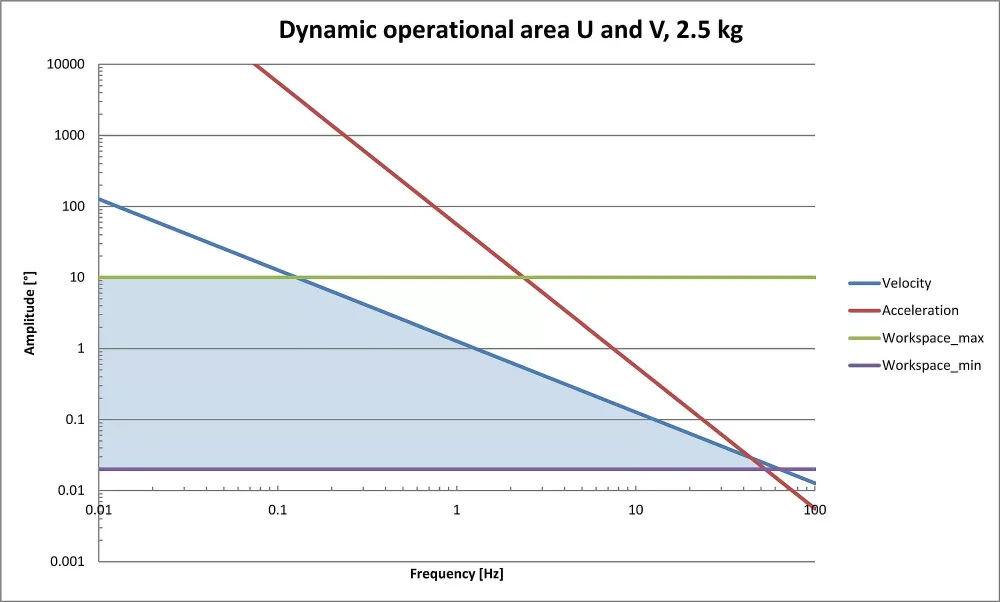

Dynamic working range of the H-811.S2, U and V, 2.5 kg

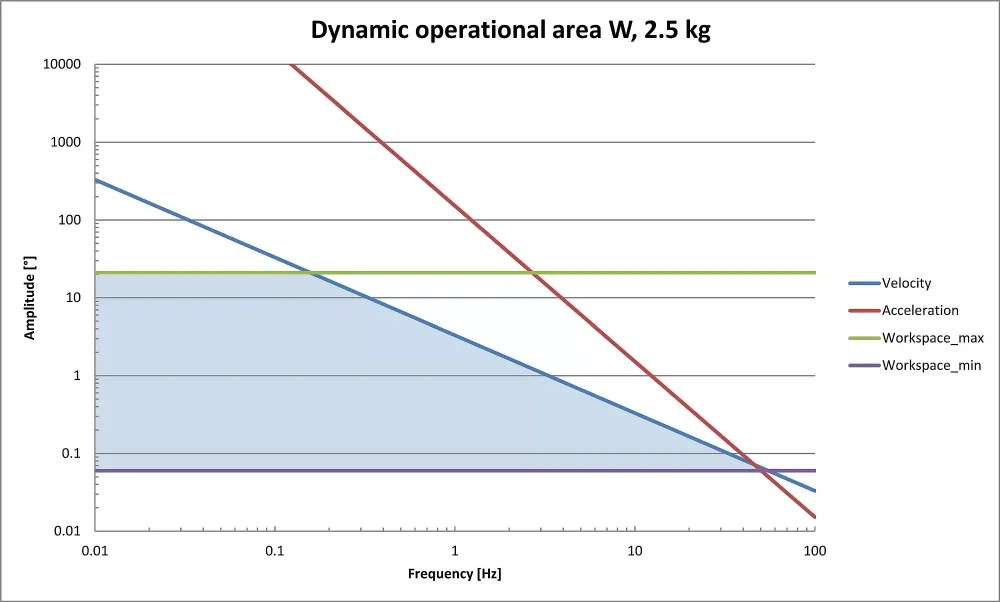

Dynamic working range of the H-811.S2, W, 2.5 kg

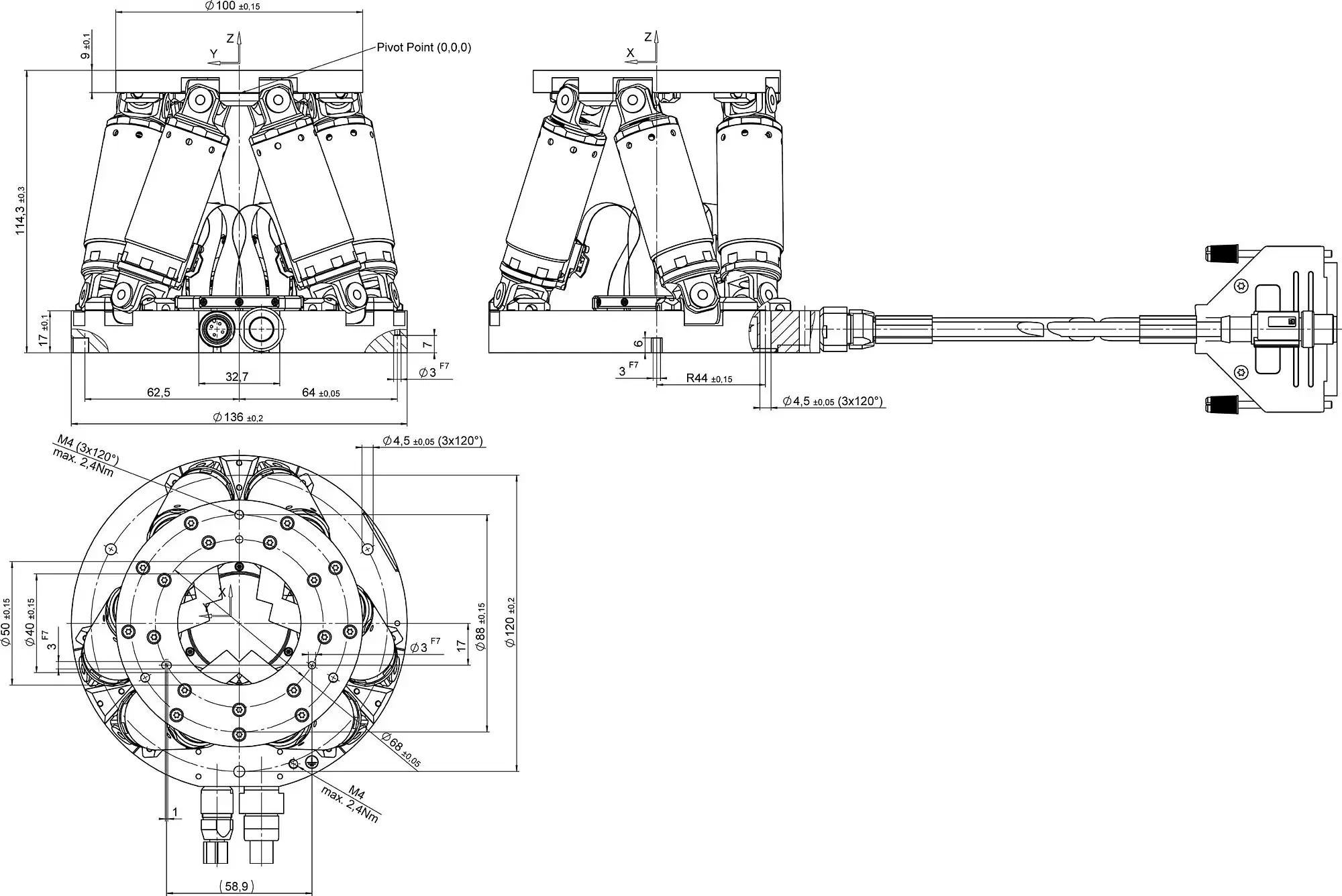

H-811.I2, dimensions in mm, at zero position of nominal travel range

The hexapod positioning system with the C-887 hexapod controller has been certified by CIPA standards for image testing and camera qualification applications.

Product Description Description Downloads Quote/Order

Reference-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction.

Brushless DC Motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research, test systems, e.g., for image stabilization in cameras or mobile devices

3D Models

H-811.x2x 3-D model

Version / Date

2020-09-24
zip - 3 MB

Add to List Remove from List

Datasheet

Datasheet H-811.S2

Version / Date

2023-04-18
pdf - 2 MB

Download

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date

2.0.0 06/2020
pdf - 2 MB

Download

Documentation

User Manual MS235

H-811.I2, H-811.I2V, H-811.F2, and H-811.S2 miniature hexapods

Version / Date

2.5.0 2023-02-23
pdf - 7 MB

Add to List Remove from List

Product Note

Product Change Notification Motor Driven Products

Version / Date

2021-04-19
pdf - 917 KB

Download

Product Note

Product Change Notification Hexapod Cables

Version / Date

2021-01-15
pdf - 186 KB

Download

Product Note

Product Change Notification H-811 Series

Version / Date

2020-10-15
pdf - 81 KB

Download

Product Note

Product Change Notification H-811 Vent Holes

Version / Date

2019-03-04
pdf - 206 KB

Download

Product Note

Product Change Notification Cable Change H-811.S2/H-811.F2

Version / Date

2019-05-10
pdf - 196 KB

Download

Software File

Hexapod Simulation Tool

Version / Date

2022-01-26
zip - 18 MB

Add to List Remove from List

Certificates

PI Certificate of Registration of Vibratory Apparatus H-811

Certification of Registration of Vibratory Apparatus

Version / Date

pdf - 583 KB

Download

H-811.S2

Miniature hexapod microrobot for highly dynamic applications, direct drive, 10 mm/s maximum velocity, 2.5 kg load capacity, 0.5 m cable length. Connecting cables are not included in the scope of delivery and must be ordered separately.
