M-501 Precision Z Stage

e.g., for compact XYZ combinations with M-511 series

Extremely high-resolution encoder
ActiveDrive Motor
Zero-play ball screws
Noncontact limit and reference switches
Stress-relieved aluminum base for high stability
Self-locking to 10 kg

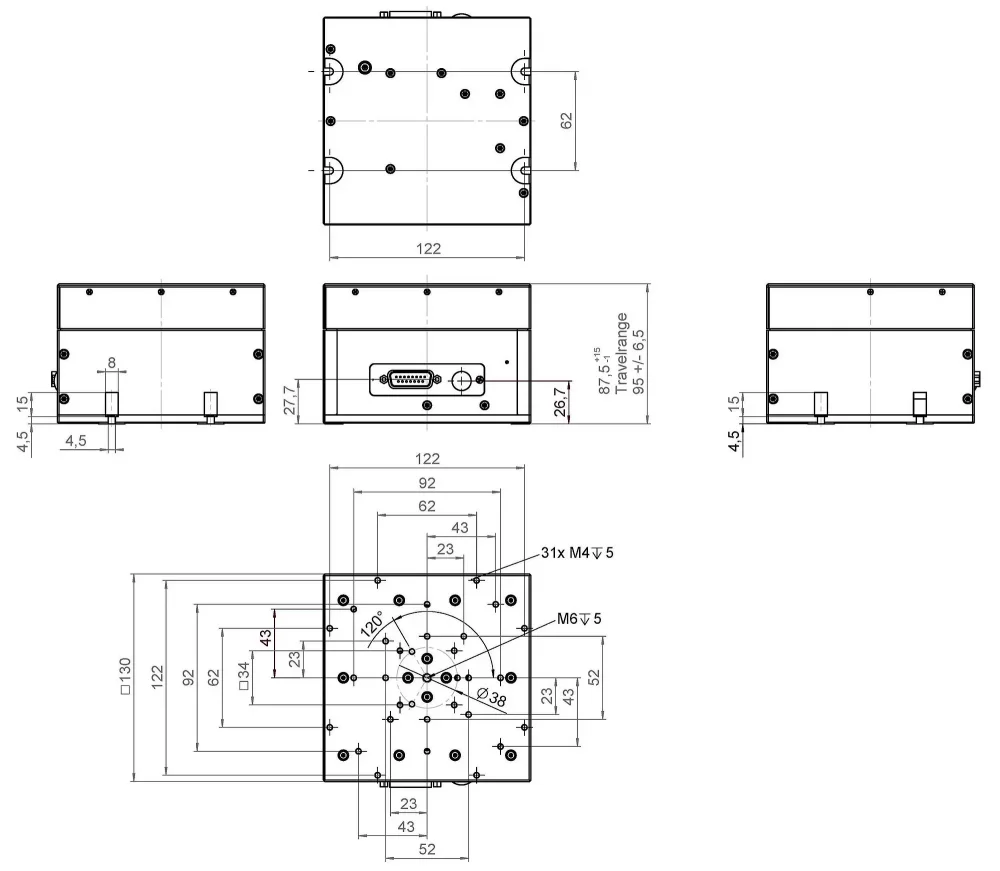

M-501, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Motion	M-501.1DG	M-501.1PD	Tolerance
Active axes	Z	Z
Travel range in Z	12.5 mm	12.5 mm
Maximum velocity in Z, unloaded	1 mm/s	3 mm/s
Yaw (Rotational crosstalk in θX with motion in Z)	± 150 µrad	± 150 µrad	typ.
Pitch (Rotational crosstalk in θY with motion in Z)	± 150 µrad	± 150 µrad	typ.
Positioning	M-501.1DG	M-501.1PD	Tolerance
Integrated sensor	Incremental rotary encoder	Incremental rotary encoder
Unidirectional repeatability in Z	0.1 µm	0.1 µm	typ.
Bidirectional repeatability in Z	± 3 µm	± 3 µm	typ.
Minimum incremental motion in Z	0.1 µm	0.1 µm	typ.
Sensor signal	A/B quadrature, RS-422	A/B quadrature, RS-422
Sensor resolution	2048 Cts./rev.	40960 Cts./rev.
Reference switch	Hall effect	Hall effect
Reference switch repeatability	1 µm	1 µm
Limit switches	Hall effect	Hall effect
Drive Properties	M-501.1DG	M-501.1PD	Tolerance
Drive type	DC gear motor	DC motor with ActiveDrive
Maximum power consumption	4 W	17 W
Nominal voltage	12 V	24 V
Drive force in negative direction of motion in Z	100 N	50 N	typ.
Drive force in positive direction of motion in Z	100 N	50 N	typ.
Torque constant	14.5 N·m/A	34.6 N·m/A	typ.
Number of pole pairs	1	1
Mechanical Properties	M-501.1DG	M-501.1PD	Tolerance
Guide	Crossed roller guide	Crossed roller guide
Drive screw type	Ball screw	Ball screw
Drive screw pitch	1 mm	1 mm
Gear ratio i	80 : 26 + 29,6 : 1 gearing (91 : 1)	80 : 26
Holding force in Z, passive	100 N	20 N
Permissible push force in Z	100 N	50 N	max.
Permissible torque in θx	40 N·m	40 N·m	max.
Permissible torque in θY	20 N·m	20 N·m	max.
Permissible torque in θZ	20 N·m	20 N·m	max.
Overall mass	2600 g	2600 g
Material	Anodized aluminum	Anodized aluminum
Miscellaneous	M-501.1DG	M-501.1PD	Tolerance
Connector	D-sub 15-pin (m)	D-sub 15-pin (m)
Recommended controllers / drivers	C-863 C-884	C-863 C-884
Operating temperature range	-20 to 50 °C	10 to 50 °C

3D Models

M-501 3-D model

Version / Date

zip - 63 KB

Add to List Remove from List

Datasheet

Datasheet M-501

Version / Date

2022-08-05
pdf - 433 KB

Download

Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Version / Date

3.2.0 01/2021
,pdf - 1 MB,

Download

Documentation

User Manual M501UM0001

M-501.1DG Z Stage

Version / Date

2020-10-09
pdf - 3 MB

Add to List Remove from List

Documentation

User Manual M501UM0002

M-501.1PD Z Stage

Version / Date

2020-10-09
pdf - 3 MB

Add to List Remove from List

M-501.1DG

Precision Z stage; DC gear motor; 12.5 mm travel range; 100 N load capacity; 1 mm/s maximum velocity; incremental rotary encoder, 2048 counts/rev sensor resolution, A/B quadrature, RS-422

Add to Quote List Remove from Quote List

M-501.1PD

Precision Z stage; DC motor with ActiveDrive; 12.5 mm travel range; 50 N load capacity; 3 mm/s maximum velocity; incremental rotary encoder, 40960 counts/rev sensor resolution, A/B quadrature, RS-422
