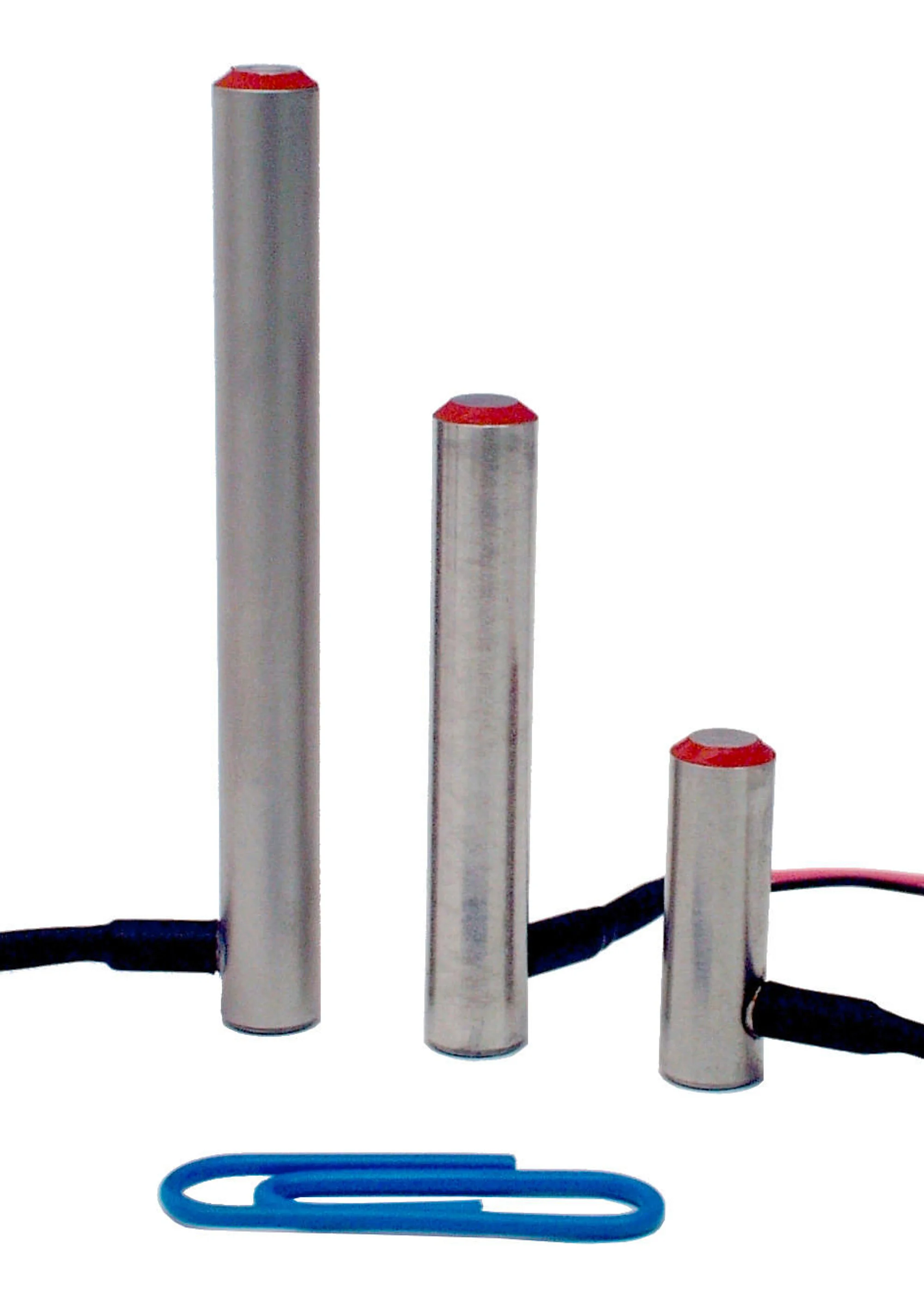

P-810 • P-830 Piezo Actuators

For Medium Loads and Push Forces

Outstanding lifetime due to PICMA® piezo actuators
Travel range to 60 µm
Push force capacity to 1000 N
Pull force capacity to 5 N
µs response time
Subnanometer resolution

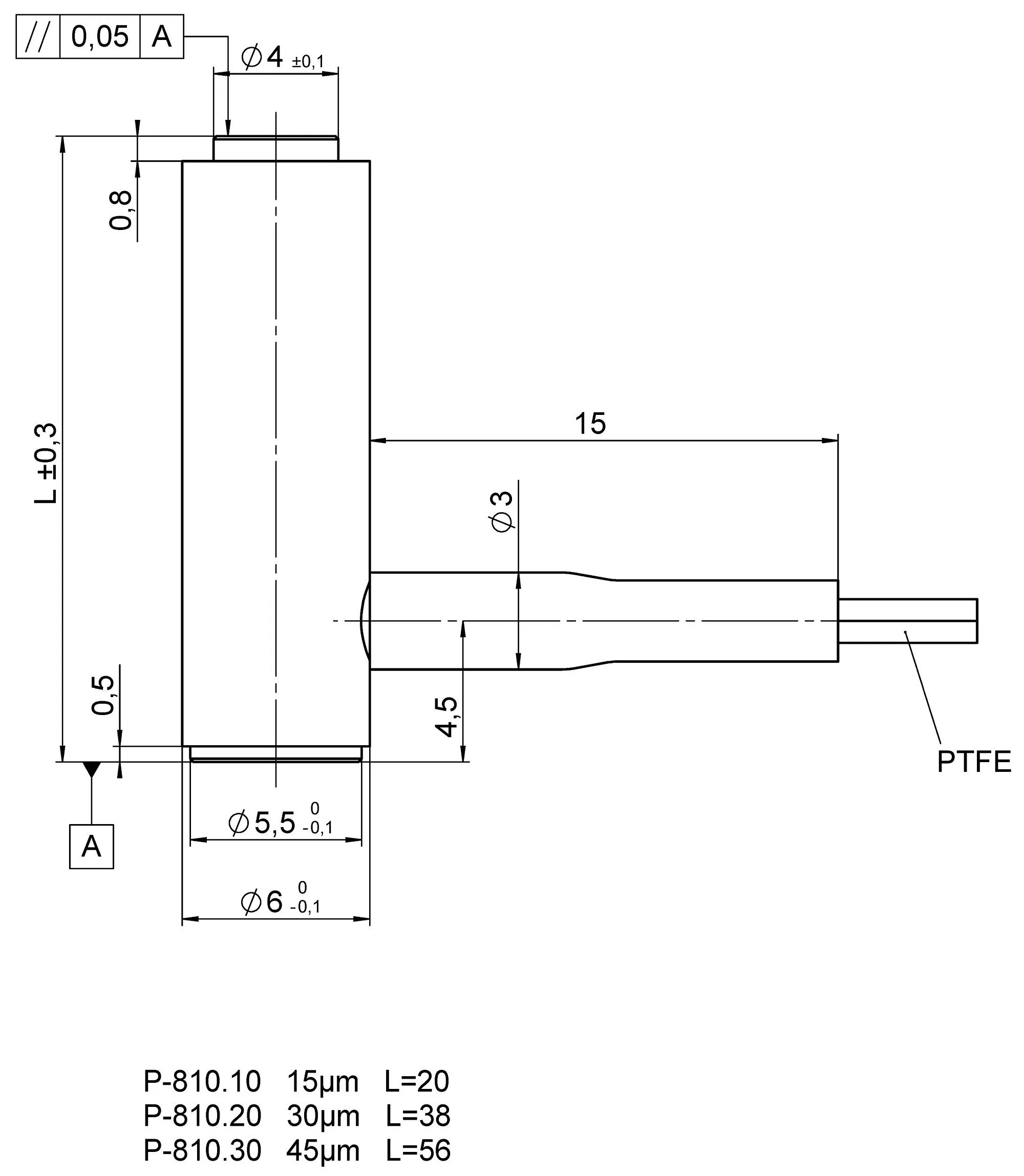

P-810, dimensions in mm. Voltage connection via the PTFE-insulated stranded wires (length: 0.3 m). Note that a comma is used in the drawings instead of a decimal point.

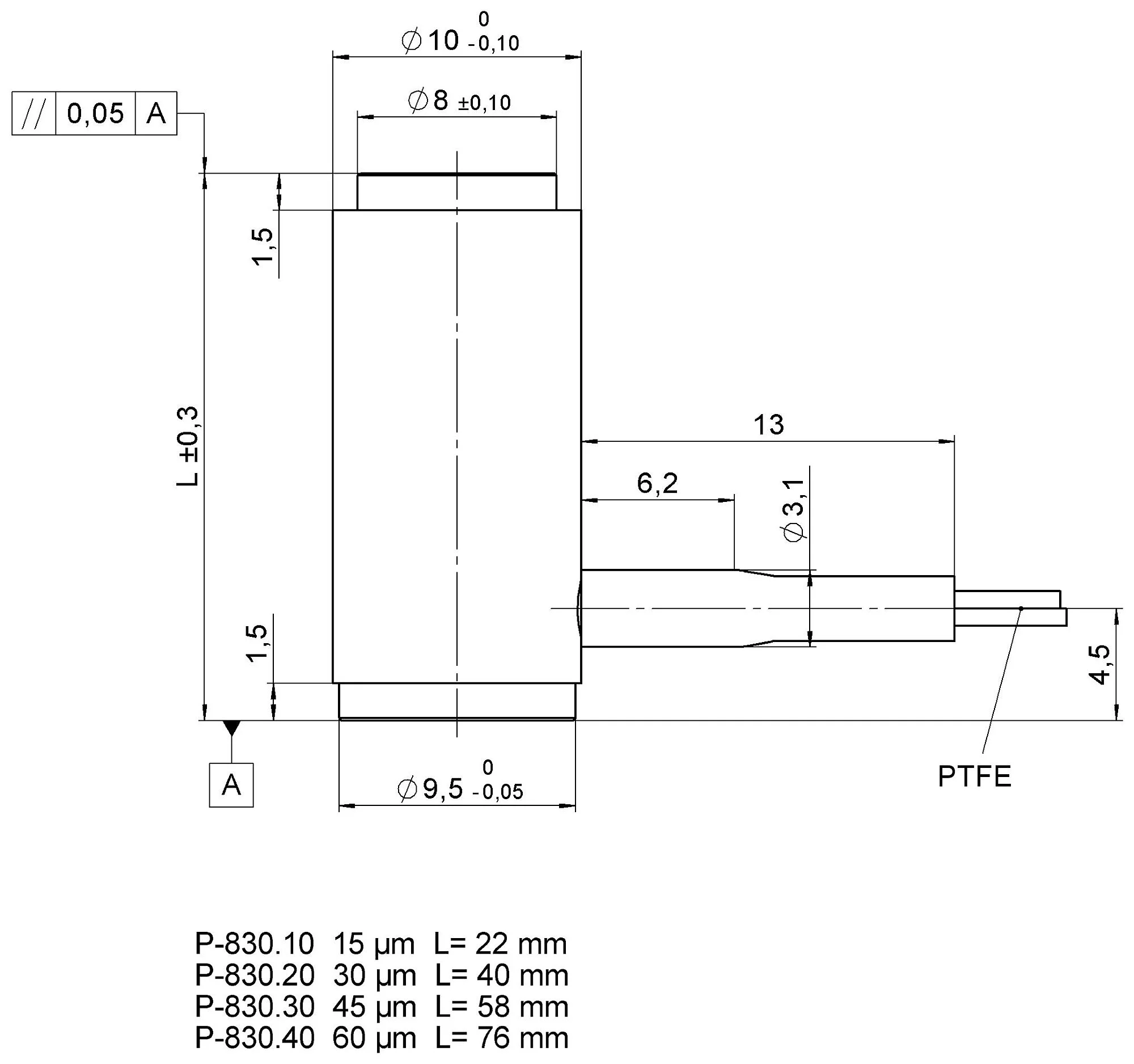

P-830, dimensions in mm. Voltage connection via the PTFE-insulated stranded wires (length: 0.3 m). Note that a comma is used in the drawings instead of a decimal point.

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Application fields

Static and dynamic precision positioning
Fiber positioning
Laser tuning
Patch clamp
Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Motion	P-810.10	P-810.20	P-810.30	P-830.10	P-830.20	P-830.30	P-830.40	Tolerance
Active axes	Z	Z	Z	Z	Z	Z	Z
Travel range in Z, open loop, at 0 to 100 V	15 µm	30 µm	45 µm	15 µm	30 µm	45 µm	60 µm	±20 %
Positioning	P-810.10	P-810.20	P-810.30	P-830.10	P-830.20	P-830.30	P-830.40	Tolerance
Resolution in Z, open loop	0.15 nm	0.3 nm	0.45 nm	0.15 nm	0.3 nm	0.45 nm	0.6 nm	typ.
Drive Properties	P-810.10	P-810.20	P-810.30	P-830.10	P-830.20	P-830.30	P-830.40	Tolerance
Drive type	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®
Electrical capacitance in Z	0.3 µF	0.7 µF	1 µF	1.5 µF	3 µF	4.5 µF	6 µF	±20 %
Mechanical Properties	P-810.10	P-810.20	P-810.30	P-830.10	P-830.20	P-830.30	P-830.40	Tolerance
Stiffness in Z	14 N/µm	7 N/µm	4 N/µm	57 N/µm	27 N/µm	19 N/µm	15 N/µm	±20 %
Resonant frequency in Z, unloaded	22 kHz	15 kHz	12 kHz	23 kHz	14 kHz	10 kHz	8.5 kHz	±20 %
Permissible push force in Z	50 N	50 N	50 N	1000 N	1000 N	1000 N	1000 N	max.
Permissible pull force in Z	1 N	1 N	1 N	5 N	5 N	5 N	5 N	max.
Overall mass	4 g	6 g	8 g	10 g	16 g	21 g	27 g	±5 %
Material	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.	Housing: Nonmagnetic stainless steel. Tips: Stainless steel.
Recommended preload for dynamic operation	10 to 20 MPa	10 to 20 MPa	10 to 20 MPa	10 to 20 MPa	10 to 20 MPa	10 to 20 MPa	10 to 20 MPa
Length	20 mm	38 mm	56 mm	22 mm	40 mm	58 mm	76 mm	±0,3 mm
Miscellaneous	P-810.10	P-810.20	P-810.30	P-830.10	P-830.20	P-830.30	P-830.40	Tolerance
Operating temperature range	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Connector	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm	Stranded wires, PTFE isolated, AWG 28, Ø 0.69 mm
Cable length	0.3 m	0.3 m	0.3 m	0.3 m	0.3 m	0.3 m	0.3 m	+25 / -0 mm
Recommended controllers / drivers	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-709, E-831
