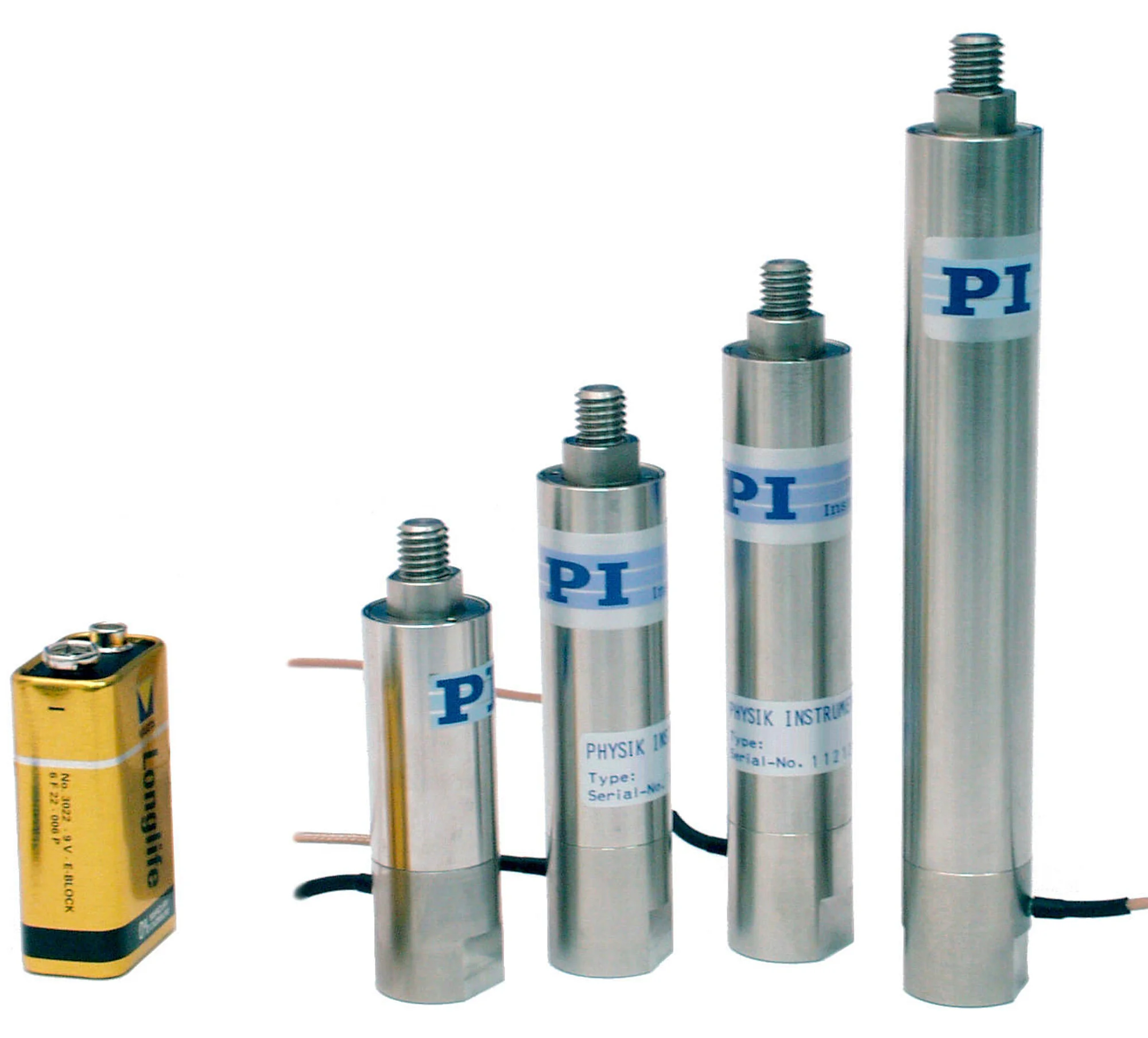

P-842 Preloaded Piezo Actuators

For High Loads and Forces

Outstanding lifetime due to PICMA® piezo actuators
Travel range to 90 µm
Push force capacity to 800 N
Pull force capacity to 300 N
µs response time
Subnanometer resolution
Vacuum-compatible versions

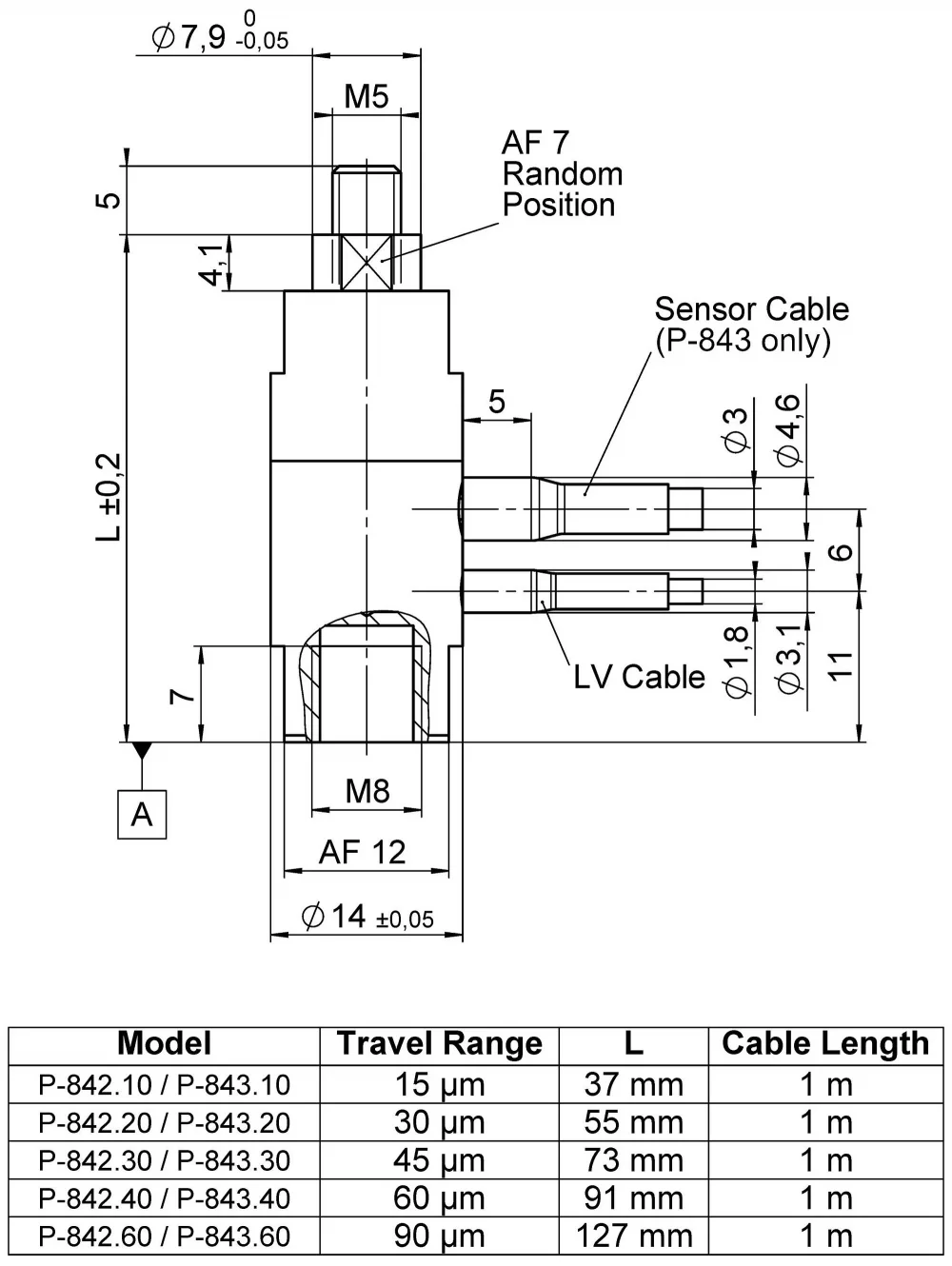

P-842 / P-843, dimensions in mm. Sensor included only with P-843.

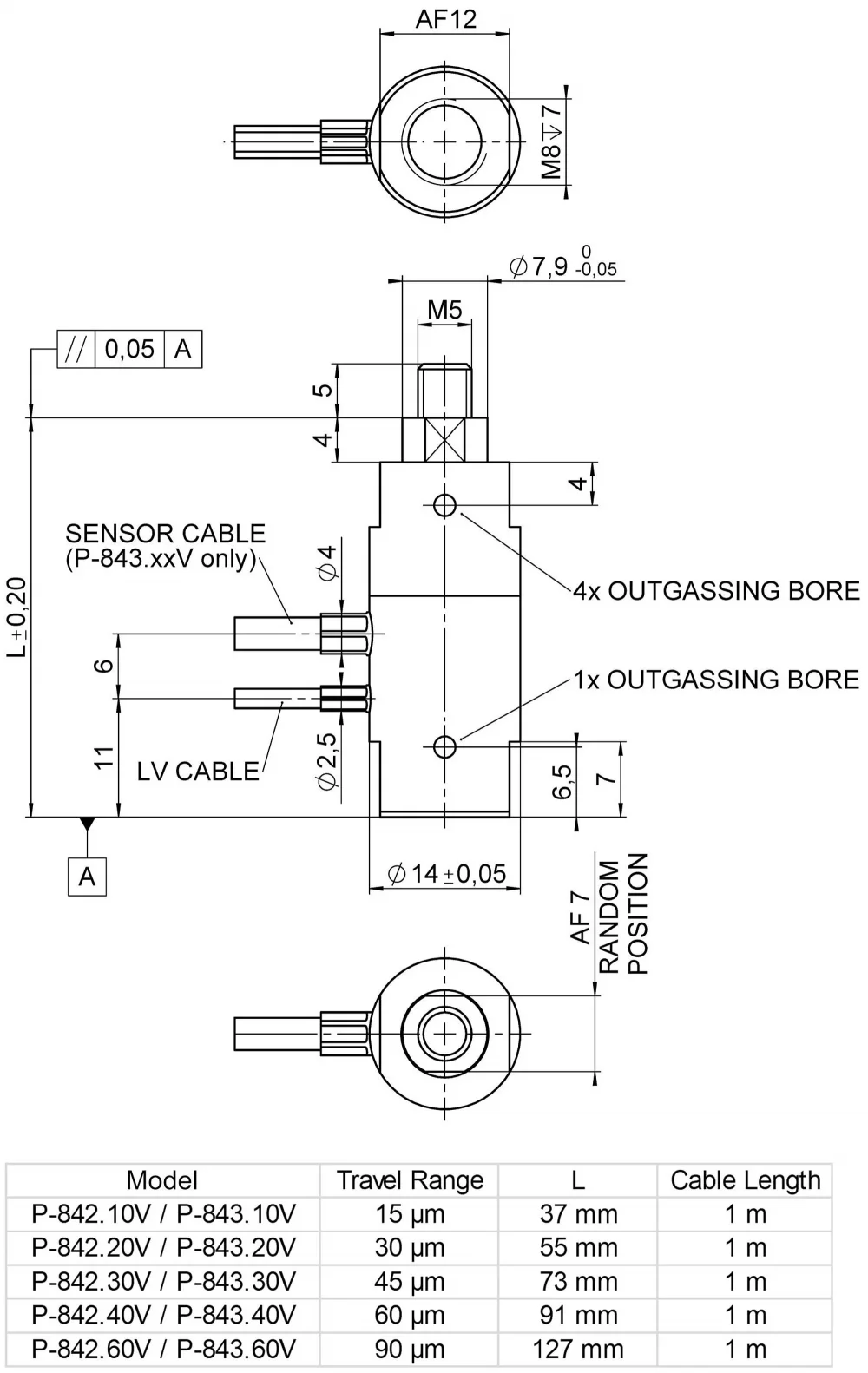

P-842.xxV / P-843.xxV, dimensions in mm. Sensor included only with P-843.xxV.

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Application fields

Static and dynamic precision positioning
Fiber positioning
Laser tuning
Nanotechnology

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.

Outstanding lifetime thanks to PICMA^® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Motion	P-842.10	P-842.20	P-842.30	P-842.40	P-842.60	P-842.60V	Tolerance
Active axes	Z	Z	Z	Z	Z	Z
Travel range in Z, open loop, at 0 to 100 V	15 µm	30 µm	45 µm	60 µm	90 µm	90 µm	±20 %
Positioning	P-842.10	P-842.20	P-842.30	P-842.40	P-842.60	P-842.60V	Tolerance
Resolution in Z, open loop	0.15 nm	0.3 nm	0.45 nm	0.6 nm	0.9 nm	0.9 nm	typ.
Drive Properties	P-842.10	P-842.20	P-842.30	P-842.40	P-842.60	P-842.60V	Tolerance
Drive type	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®
Electrical capacitance in Z	1.5 µF	3 µF	4.5 µF	6 µF	9 µF	9 µF	±20 %
Mechanical Properties	P-842.10	P-842.20	P-842.30	P-842.40	P-842.60	P-842.60V	Tolerance
Stiffness in Z	57 N/µm	27 N/µm	19 N/µm	15 N/µm	10 N/µm	10 N/µm	±20 %
Resonant frequency in Z, unloaded	18 kHz	14 kHz	10 kHz	8.5 kHz	6 kHz	6 kHz	±20 %
Permissible push force in Z	800 N	800 N	800 N	800 N	800 N	800 N	max.
Permissible pull force in Z	300 N	300 N	300 N	300 N	300 N	300 N	max.
Permissible torque in θZ	0.35 N·m	0.35 N·m	0.35 N·m	0.35 N·m	0.35 N·m	0.35 N·m	max.
Mass without cable	31 g	42 g	53 g	64 g	86 g	86 g	±5 %
Material	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel
Length	37 mm	55 mm	73 mm	91 mm	127 mm	127 mm	±0,2 mm
Miscellaneous	P-842.10	P-842.20	P-842.30	P-842.40	P-842.60	P-842.60V	Tolerance
Operating temperature range	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C	-40 to 80 °C
Connector	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250
Cable length	1 m	1 m	1 m	1 m	1 m	1 m
Recommended controllers / drivers	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831
Vacuum class						10⁻⁶ hPa

3D Modeller

P-842 / P-843 3-D model

Versiyon / Tarih

zip - 184 KB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet P-842

Versiyon / Tarih

2023-03-21
pdf - 846 KB

İndir

Dokümantasyon

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

Versiyon / Tarih

1.2.0 11/2020
pdf - 958 KB

İndir

Dokümantasyon

User Manual P842M0001

P-842 Preloaded piezo actuators

Versiyon / Tarih

2021-02-23
pdf - 2 MB

Listeye Ekle Listeden Çıkar

Dokümantasyon

User Manual P842M0002

P-842.xxV Preloaded piezo actuators (vacuum versions)

Versiyon / Tarih

2021-02-23
pdf - 3 MB

Listeye Ekle Listeden Çıkar

P-842.10

Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range (open loop); 37 mm length; push force capacity 800 N; pull force capacity 300 N; LEMO connector; 1 m cable length
