L-505 Compact Linear Stage
With DC or Stepper Motor
  • Travel ranges 13 or 26 mm
  • Stepper motor or DC servo motor with and without gearhead
  • Velocity to 15 mm/s
  • Load capacity to 30 N
  • Integrated reference and limit switches
L-505 with direct fixed drive and stepper motor, dimensions in mm
L-505 with direct fixed drive and stepper motor, dimensions in mm

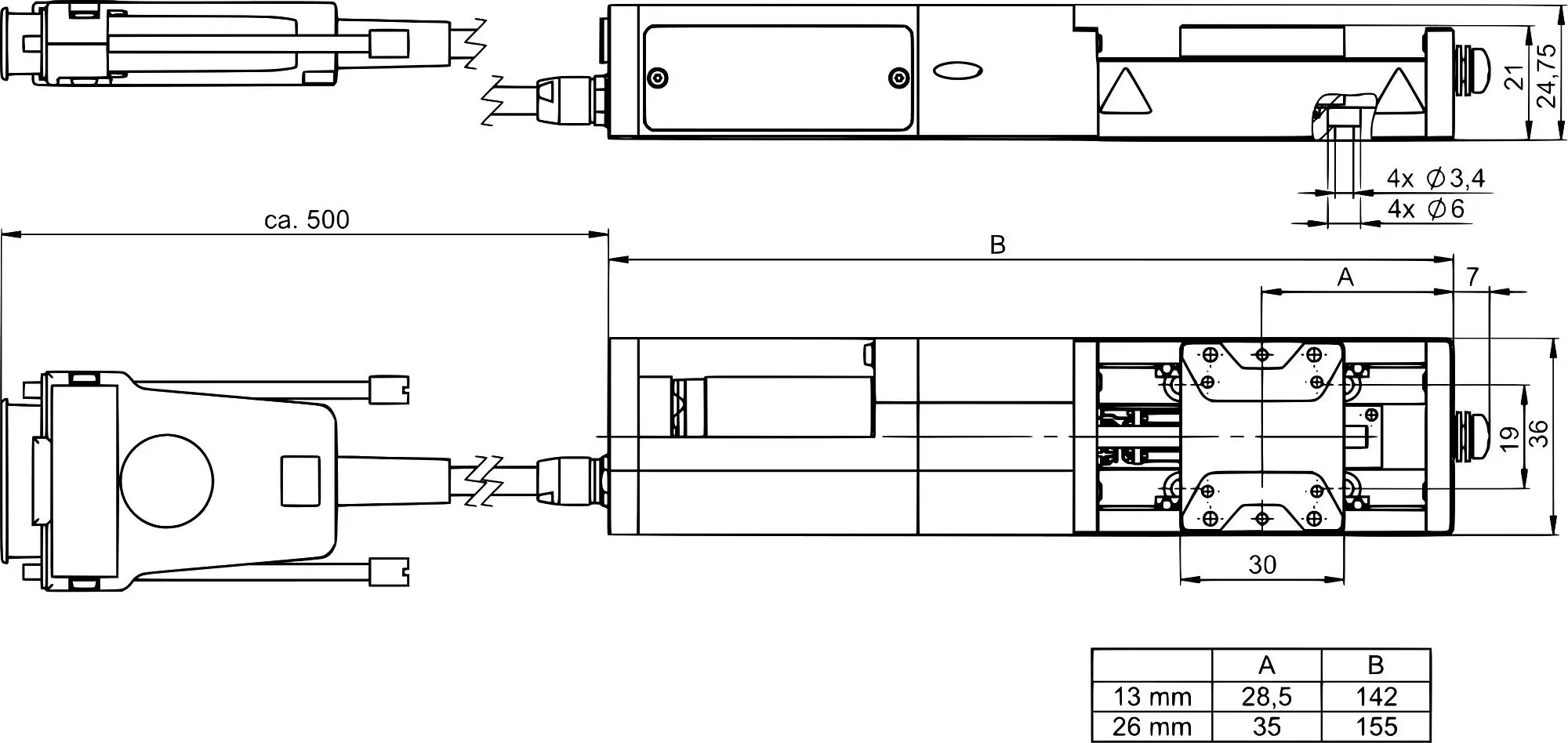

L-505 with direct fixed drive and DC motor, dimensions in mm
L-505 with direct fixed drive and DC motor, dimensions in mm

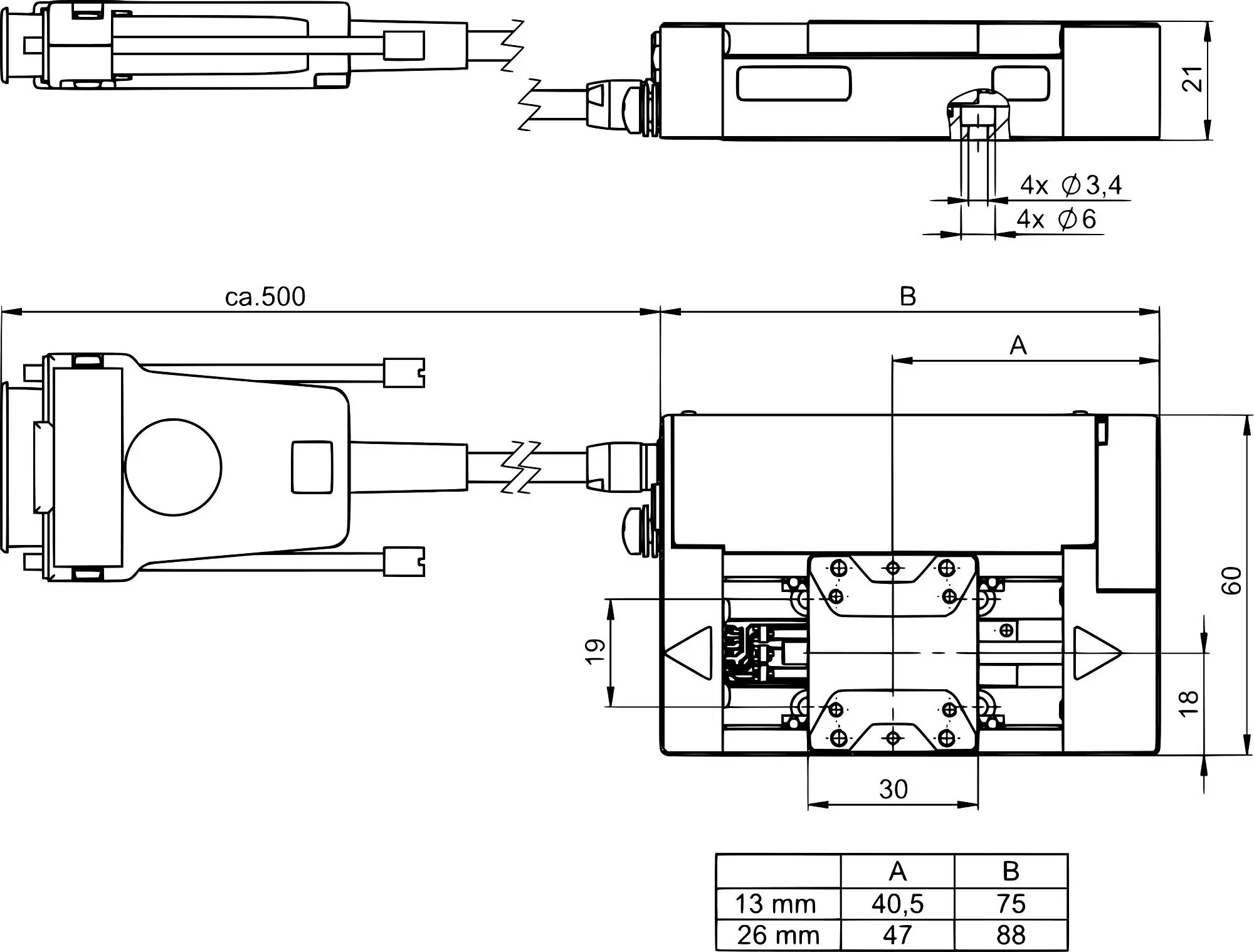

L-505 with belt drive, dimensions in mm
L-505 with belt drive, dimensions in mm
XYZ assembly consisting of three L-505.023212F linear stages
XYZ assembly consisting of three L-505.023212F linear stages

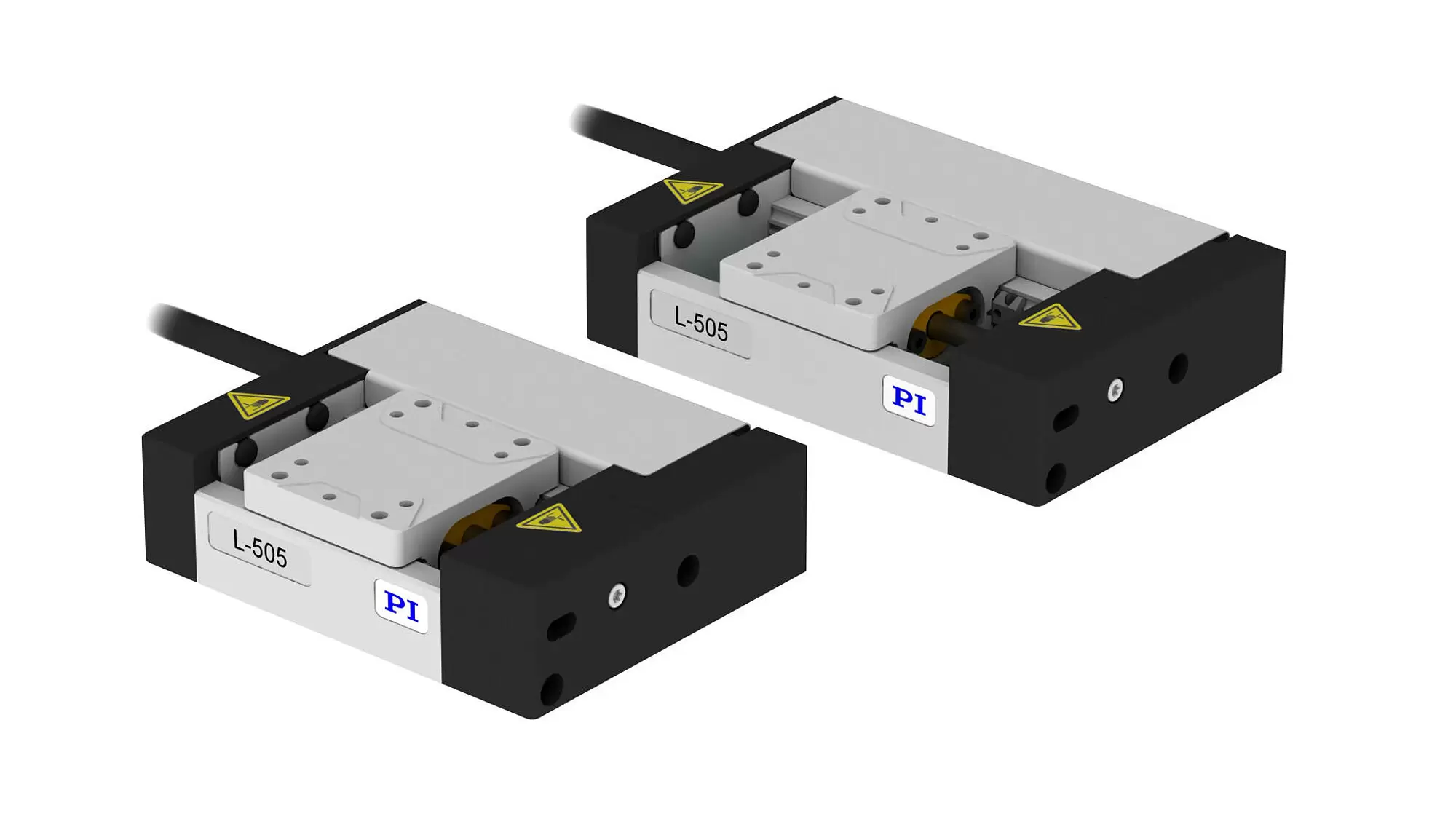

Comparison of the travel ranges: L-505.013212F (left) - 13 mm; L-505.023212F (right) - 26 mm
Comparison of the travel ranges: L-505.013212F (left) - 13 mm; L-505.023212F (right) - 26 mm
XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket
XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

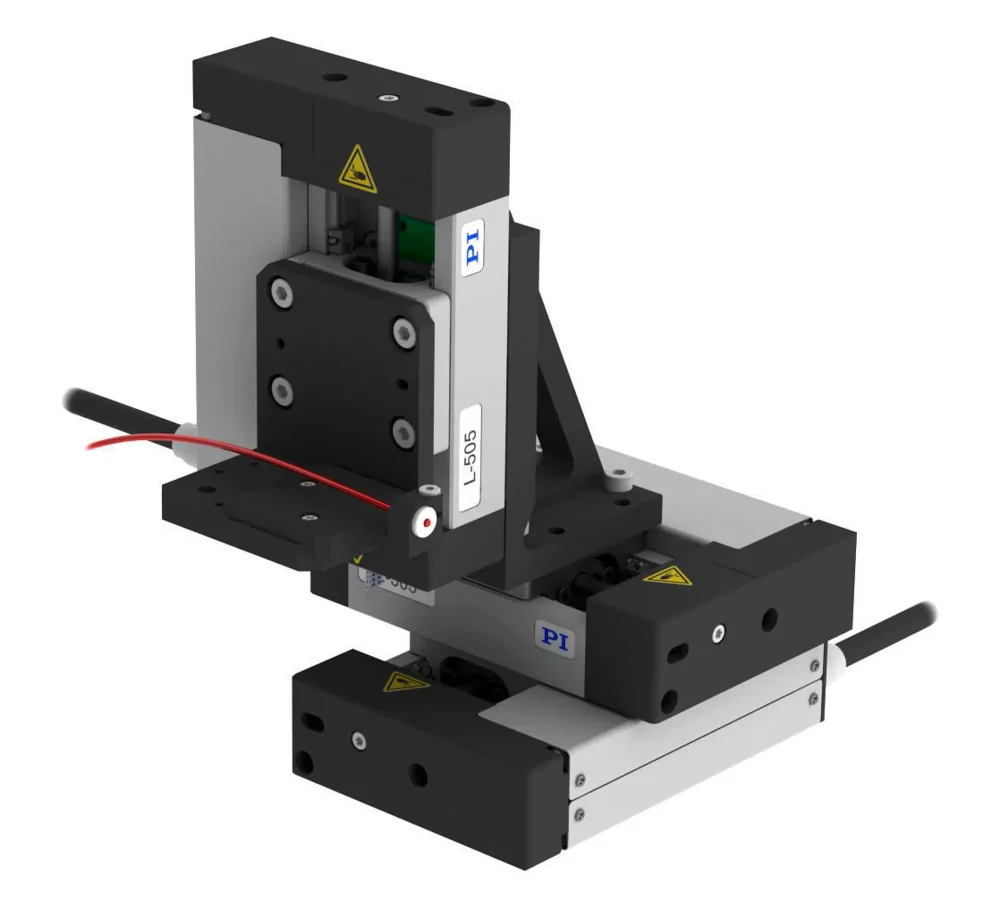

XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages

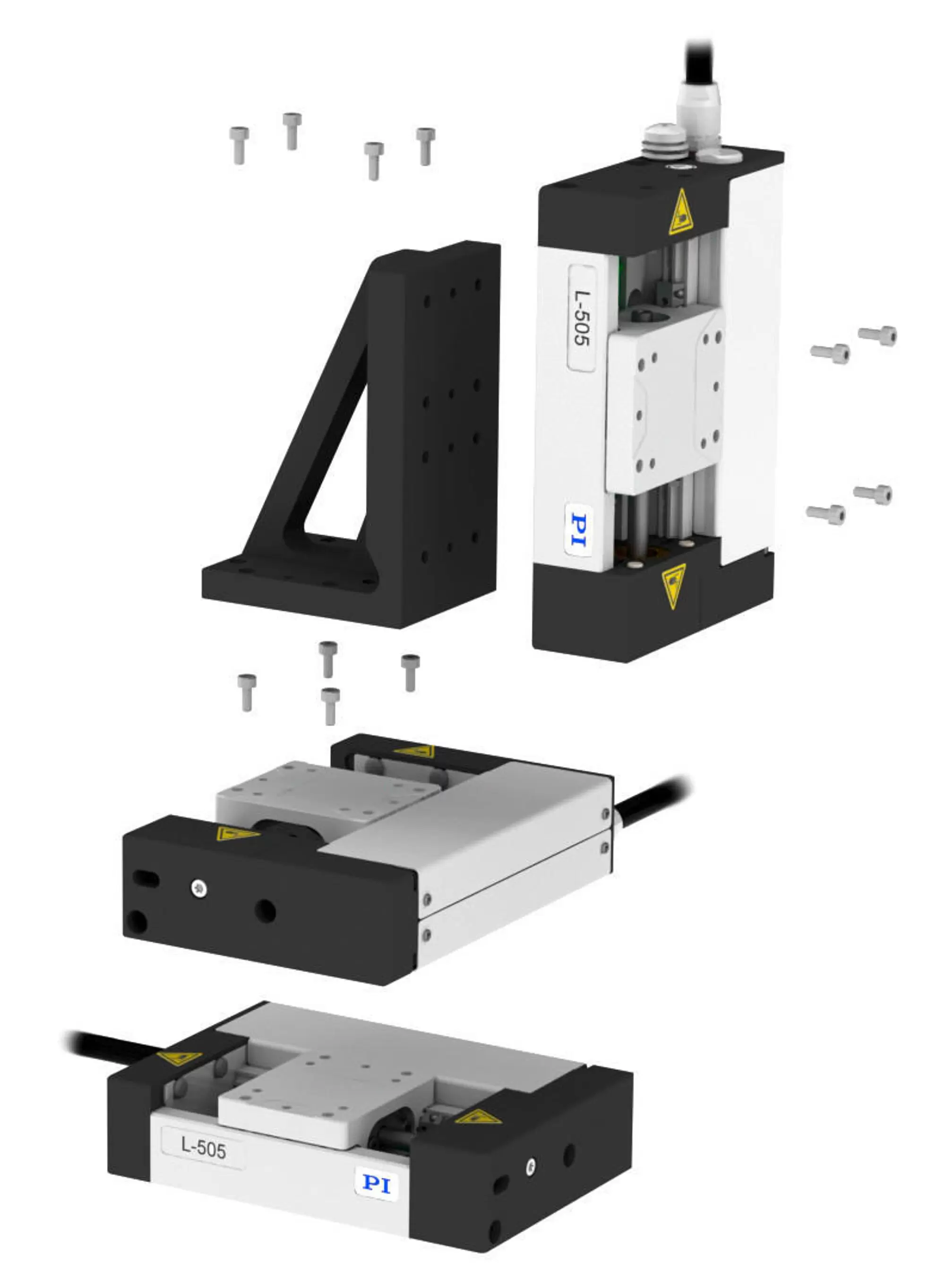

Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket
Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

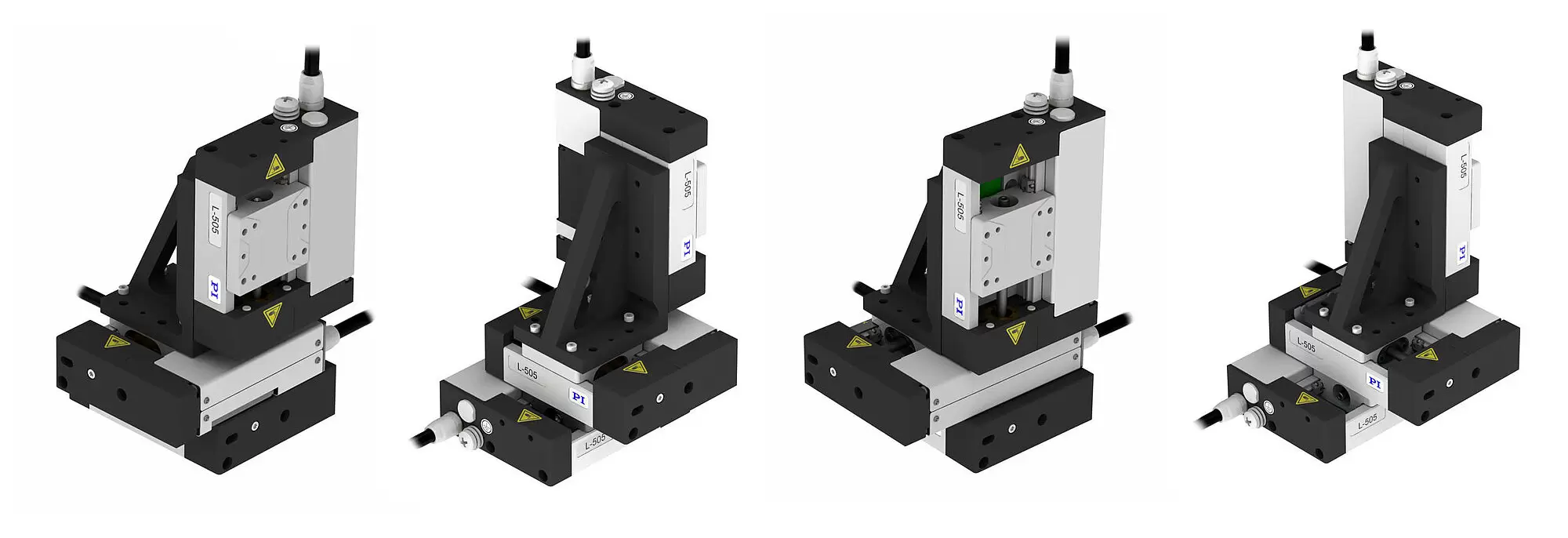

Comparison of XYZ assemblies consisting of three linear stages: L-505.013212F (left) and L-505.023212F (right)
Comparison of XYZ assemblies consisting of three linear stages: L-505.013212F (left) and L-505.023212F (right)
Product DescriptionDescriptionSpecificationsDownloadsQuote/Order

Product overview

Compact linear stage with low-backlash drive spindle and ball guides. Directly mountable XY combination. Integrated reference and limit switches: Hall effect.

The linear stage is available in two design variants:

  • Narrow, long variant with direct fixed drive (flange motor).
  • Wide, compact variant with belt drive (folded drivetrain). These variants are marked by an "F" at the end of the item number.

Drive types

  • DC motor with or without gearhead
  • Stepper motor with or without gearhead

Variants with DC motor are equipped with an incremental linear encoder. This is optional in the case of stepper motor variants. Folded variants with DC motor without gearhead are equipped with a ball screw.

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Medical industry. Autofocus. Precision microassembly. Biotechnology. Automation.

Motion L-505.011200 L-505.011200F L-505.021200 L-505.021200F L-505.011212 L-505.011212F L-505.021212 L-505.021212F L-505.01A200F L-505.02A200F L-505.01A212F L-505.02A212F L-505.013212 L-505.013212F L-505.023212 L-505.023212F L-505.014212F L-505.024212F Tolerance
Active axes X X X X X X X X X X X X X X X X X X
Travel range in X 13 mm 13 mm 26 mm 26 mm 13 mm 13 mm 26 mm 26 mm 13 mm 26 mm 13 mm 26 mm 13 mm 13 mm 26 mm 26 mm 13 mm 26 mm
Maximum velocity in X, unloaded 10 mm/s 7.5 mm/s 10 mm/s 7.5 mm/s 10 mm/s 7.5 mm/s 10 mm/s 7.5 mm/s 0.75 mm/s 0.75 mm/s 0.75 mm/s 0.75 mm/s 15 mm/s 7.5 mm/s 15 mm/s 7.5 mm/s 1 mm/s 1 mm/s
Straightness (Linear crosstalk in Y with motion in X) ± 0.5 µm ± 0.5 µm ± 1 µm ± 1 µm ± 0.5 µm ± 0.5 µm ± 1 µm ± 1 µm ± 0.5 µm ± 1 µm ± 0.5 µm ± 1 µm ± 0.5 µm ± 0.5 µm ± 1 µm ± 1 µm ± 0.5 µm ± 1 µm typ.
Flatness (Linear crosstalk in Z with motion in X) ± 0.5 µm ± 0.5 µm ± 1 µm ± 1 µm ± 0.5 µm ± 0.5 µm ± 1 µm ± 1 µm ± 0.5 µm ± 1 µm ± 0.5 µm ± 1 µm ± 0.5 µm ± 0.5 µm ± 1 µm ± 1 µm ± 0.5 µm ± 1 µm typ.
Pitch (Rotational crosstalk in θY with motion in X) ± 50 µrad ± 50 µrad ± 75 µrad ± 75 µrad ± 50 µrad ± 50 µrad ± 75 µrad ± 75 µrad ± 50 µrad ± 75 µrad ± 50 µrad ± 75 µrad ± 50 µrad ± 50 µrad ± 75 µrad ± 75 µrad ± 50 µrad ± 75 µrad typ.
Yaw (Rotational crosstalk in θZ with motion in X) ± 50 µrad ± 50 µrad ± 75 µrad ± 75 µrad ± 50 µrad ± 50 µrad ± 75 µrad ± 75 µrad ± 50 µrad ± 75 µrad ± 50 µrad ± 75 µrad ± 50 µrad ± 50 µrad ± 75 µrad ± 75 µrad ± 50 µrad ± 75 µrad typ.
Positioning L-505.011200 L-505.011200F L-505.021200 L-505.021200F L-505.011212 L-505.011212F L-505.021212 L-505.021212F L-505.01A200F L-505.02A200F L-505.01A212F L-505.02A212F L-505.013212 L-505.013212F L-505.023212 L-505.023212F L-505.014212F L-505.024212F Tolerance
Unidirectional repeatability in X 0.3 µm 0.3 µm 0.3 µm 0.3 µm 0.1 µm 0.1 µm 0.1 µm 0.1 µm 0.3 µm 0.3 µm 0.1 µm 0.1 µm 0.1 µm 0.1 µm 0.1 µm 0.1 µm 0.25 µm 0.25 µm typ.
Bidirectional repeatability in X ± 2.5 µm ± 2.5 µm ± 2.5 µm ± 2.5 µm ± 0.15 µm ± 0.15 µm ± 0.15 µm ± 0.15 µm ± 2.5 µm ± 2.5 µm ± 0.15 µm ± 0.15 µm ± 0.15 µm ± 0.15 µm ± 0.15 µm ± 0.15 µm ± 0.25 µm ± 0.25 µm typ.
Minimum incremental motion in X 0.1 µm 0.1 µm 0.1 µm 0.2 µm 0.05 µm 0.05 µm 0.05 µm 0.1 µm 0.2 µm 0.2 µm 0.05 µm 0.05 µm 0.1 µm 0.1 µm 0.1 µm 0.1 µm 0.5 µm 0.5 µm typ.
Reference switch Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect
Reference switch repeatability 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm 4 µm max.
Limit switches Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect Hall effect
Integrated sensor         Incremental linear encoder Incremental linear encoder Incremental linear encoder Incremental linear encoder     Incremental linear encoder Incremental linear encoder Incremental linear encoder Incremental linear encoder Incremental linear encoder Incremental linear encoder Incremental linear encoder Incremental linear encoder
Sensor signal         A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422     A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422 A/B quadrature, RS-422
Sensor resolution         5 nm 5 nm 5 nm 5 nm     5 nm 5 nm 50 nm 50 nm 50 nm 50 nm 50 nm 50 nm
Drive Properties L-505.011200 L-505.011200F L-505.021200 L-505.021200F L-505.011212 L-505.011212F L-505.021212 L-505.021212F L-505.01A200F L-505.02A200F L-505.01A212F L-505.02A212F L-505.013212 L-505.013212F L-505.023212 L-505.023212F L-505.014212F L-505.024212F Tolerance
Drive type 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor 2-phase stepper motor with gearhead 2-phase stepper motor with gearhead 2-phase stepper motor with gearhead 2-phase stepper motor with gearhead DC motor DC motor DC motor DC motor DC gear motor DC gear motor
Maximum power consumption 4 W 4 W 4 W 4 W 5 W 5 W 5 W 5 W 1 W 1 W 2 W 2 W 7 W 7 W 7 W 7 W 3 W 3 W
Motor resolution 200 Full steps/rev. 200 Full steps/rev. 200 Full steps/rev. 200 Full steps/rev. 200 Full steps/rev. 200 Full steps/rev. 200 Full steps/rev. 200 Full steps/rev. 24 Full steps/rev. 24 Full steps/rev. 24 Full steps/rev. 24 Full steps/rev.
Nominal voltage 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 12 V 12 V 12 V 12 V 12 V 12 V
Nominal current, RMS 0.6 A 0.6 A 0.6 A 0.6 A 0.6 A 0.6 A 0.6 A 0.6 A 0.25 A 0.25 A 0.25 A 0.25 A 0.46 A 0.45 A 0.46 A 0.45 A 0.14 A 0.14 A typ.
Drive force in negative direction of motion in X 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N 65 N 65 N 65 N 65 N 20 N 20 N 20 N 20 N 20 N 20 N typ.
Drive force in positive direction of motion in X 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N 65 N 65 N 65 N 65 N 20 N 20 N 20 N 20 N 20 N 20 N typ.
Mechanical Properties L-505.011200 L-505.011200F L-505.021200 L-505.021200F L-505.011212 L-505.011212F L-505.021212 L-505.021212F L-505.01A200F L-505.02A200F L-505.01A212F L-505.02A212F L-505.013212 L-505.013212F L-505.023212 L-505.023212F L-505.014212F L-505.024212F Tolerance
Guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide Ball guide
Drive screw type Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Fine-threaded spindle Ball screw Fine-threaded spindle Ball screw Fine-threaded spindle Fine-threaded spindle
Drive screw pitch 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
Holding force in X, passive 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N 20 N
Moved mass in X, unloaded 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g 0.07 g
Permissible push force in Y 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N max.
Permissible push force in Z 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N 30 N max.
Permissible torque in θx 7 N·m 7 N·m 9 N·m 9 N·m 7 N·m 7 N·m 9 N·m 9 N·m 7 N·m 9 N·m 7 N·m 9 N·m 7 N·m 7 N·m 9 N·m 9 N·m 7 N·m 9 N·m max.
Permissible torque in θY 6 N·m 6 N·m 8 N·m 8 N·m 6 N·m 6 N·m 8 N·m 8 N·m 6 N·m 8 N·m 6 N·m 8 N·m 6 N·m 6 N·m 8 N·m 8 N·m 6 N·m 8 N·m max.
Permissible torque in θZ 6 N·m 6 N·m 8 N·m 8 N·m 6 N·m 6 N·m 8 N·m 8 N·m 6 N·m 8 N·m 6 N·m 8 N·m 6 N·m 6 N·m 8 N·m 8 N·m 6 N·m 8 N·m max.
Overall mass 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g 400 g
Material

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel

Anodized aluminum, stainless steel


Gear ratio i                 28,444 28,444 28,444 28,444         28,444 28,444
Miscellaneous L-505.011200 L-505.011200F L-505.021200 L-505.021200F L-505.011212 L-505.011212F L-505.021212 L-505.021212F L-505.01A200F L-505.02A200F L-505.01A212F L-505.02A212F L-505.013212 L-505.013212F L-505.023212 L-505.023212F L-505.014212F L-505.024212F Tolerance
Connector HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m) HD D-sub 26-pin (m)
Recommended controllers / drivers

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-663.12

G-901

G-910

ACS modular controller

C-863

C-884

G-901

G-910

ACS modular controller

C-863

C-884

G-901

G-910

ACS modular controller

C-863

C-884

G-901

G-910

ACS modular controller

C-863

C-884

G-901

G-910

ACS modular controller

C-863

C-884

G-901

G-910

ACS modular controller

C-863

C-884

G-901

G-910

ACS modular controller


Cable length 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m 0.5 m
Operating temperature range 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C 5 to 40 °C
