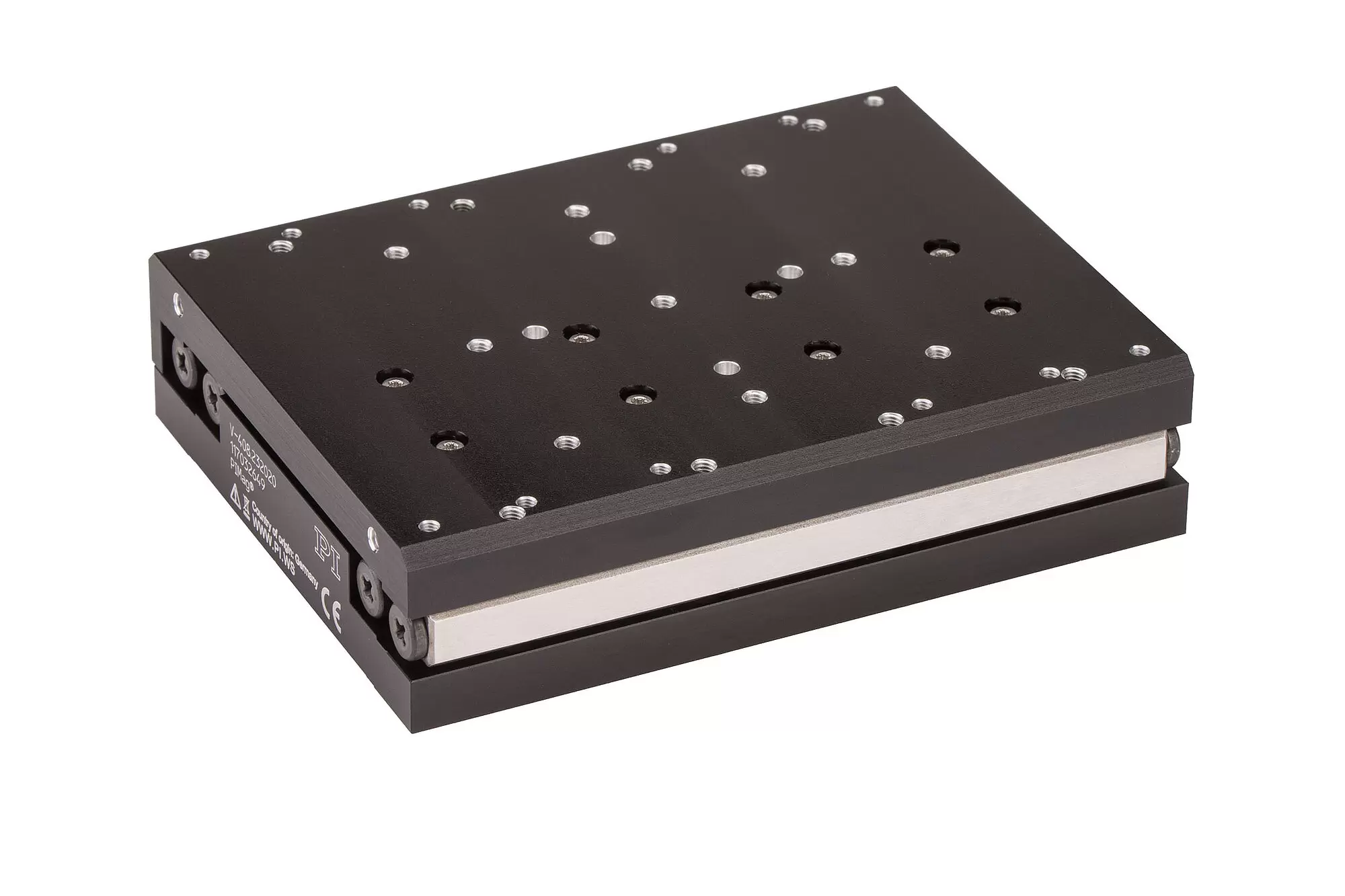

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

Crossed roller guide for high load capacity
Minimum incremental motion 20 nm
Bidirectional repeatability ±0.1 µm
Compact design
Low price
Iron core PIMag® linear motor developed by PI

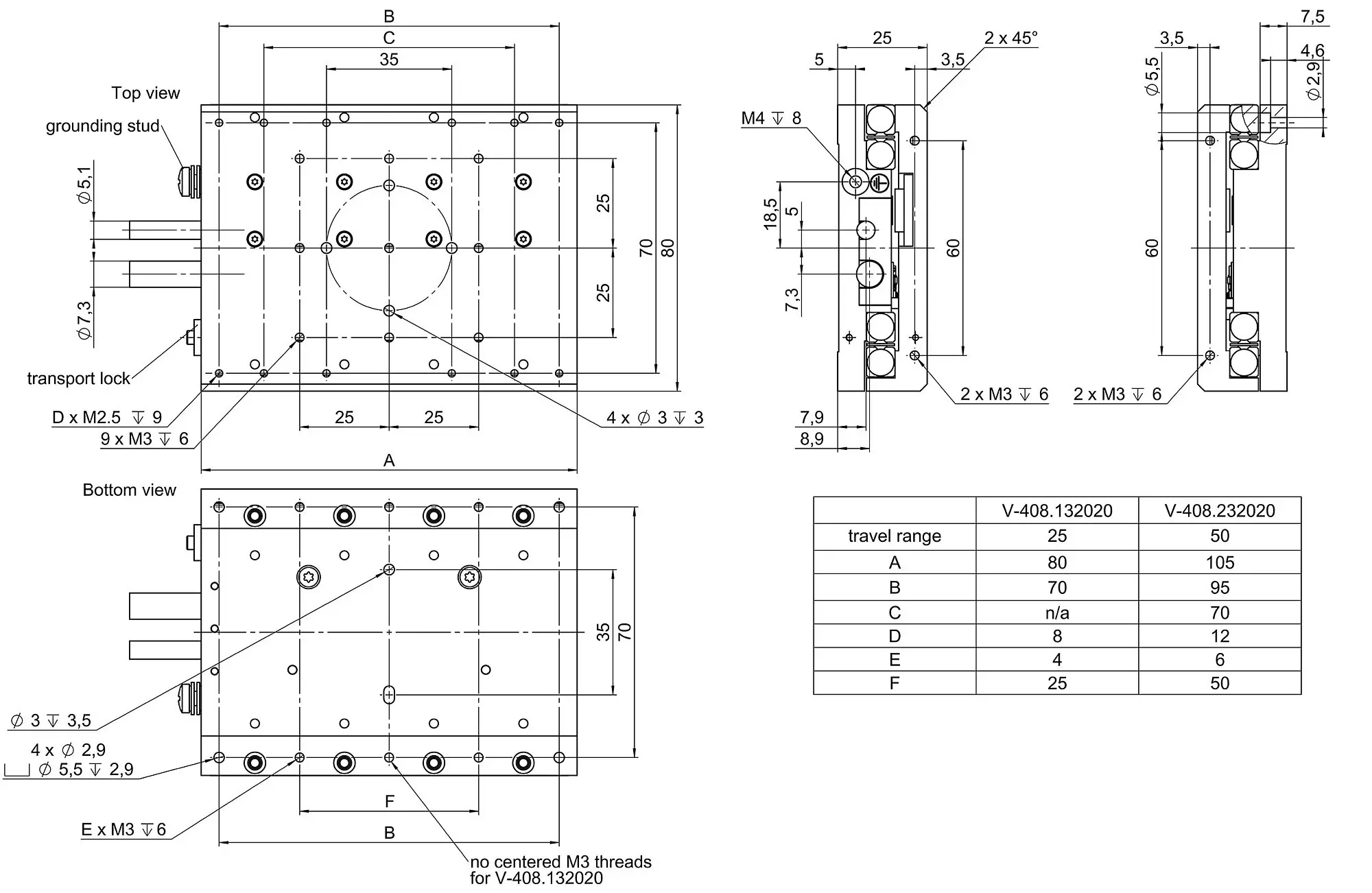

V-408, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

PIMag® linear motor

Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Iron core motors are used when forces and accelerations need to be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Application fields

Industry and research. Automation technology with high demands on dynamics and precision.

PIMag®

PI develops proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. The motors developed by PI are identified by the PIMag® brand name.

Direct position measuring

Position measuring is performed with the highest accuracy directly at the motion platform so that nonlinearity, mechanical play, or elastic deformation have no influence on position measuring.

Motion and positioning	V-408	Unit	Tolerance
Active axes	X
Travel range	V-408.132020: 25 V-408.232020: 50	mm
Integrated sensor	Incremental linear encoder
Sensor signal periods	80	µm
Sensor resolution	10 ⁽¹⁾	nm	typ.
Min. incremental motion	20	nm	typ.
Bidirectional repeatability	±0.1	µm	typ.
Pitch / Yaw	±150	µrad	typ.
Straightness / flatness	±4	µm	typ.
Velocity	V-408.132020: 0.5 V-408.232020: 0.7	m/s	max.

3D Models

V-408 3-D model

Version / Date

zip - 374 KB

Add to List Remove from List

Animated 3D Models

Animated 3-D Model V-408.232020

Version / Date

zip - 363 KB

Add to List Remove from List

Datasheet

Datasheet V-408

Version / Date

2020-05-26
pdf - 569 KB

Download

Documentation

Short Instructions MP163EK

Positioners with Magnetic Linear Motor: V-308 / V-408 / V-508 / V-52x / V-551 / V-610 / V-73x / V-741

Version / Date

4.1.0 06/2023
pdf - 872 KB

Download

Documentation

User Manual V408M0001

V-408.132020 PIMAG® POSITIONERS

Version / Date

2020-02-17
pdf - 3 MB

Add to List Remove from List

Documentation

User Manual V408M0002

V-408.232020 PIMAG® POSITIONERS

Version / Date

2020-02-17
pdf - 3 MB

Add to List Remove from List

V-408.132020

PIMag® Linear stage, 80 mm width, 25 mm travel range, 80 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V

Add to Quote List Remove from Quote List

V-408.232020

PIMag® Linear stage, 80 mm width, 50 mm travel range, 80 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V

Add to Quote List Remove from Quote List
